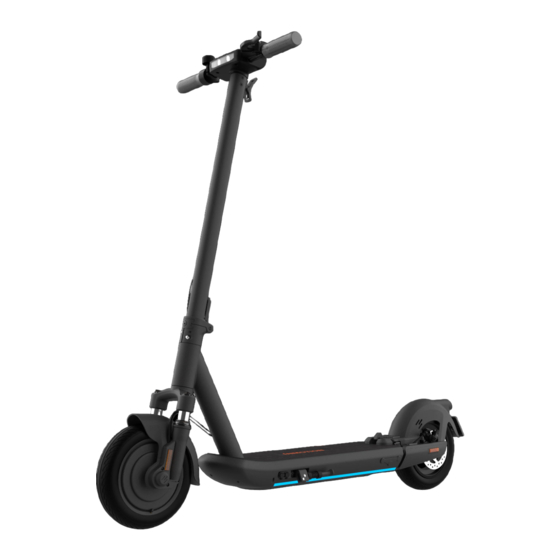

Summary of Contents for Rulind L9

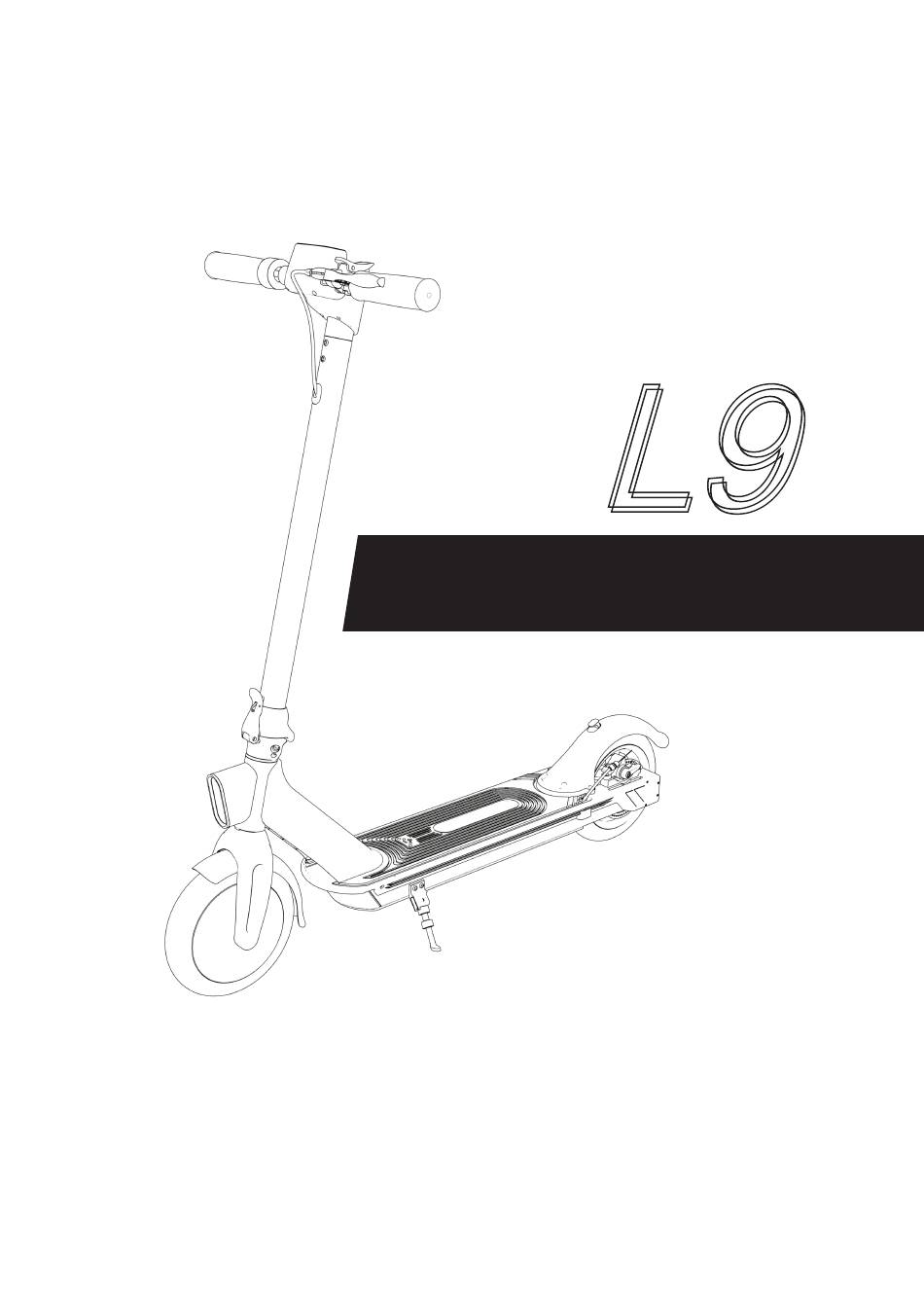

- Page 1 E-SCOOTER MANUAL Shenzhen Rulind Electronic Technology Co., Ltd...
-
Page 2: Table Of Contents
Introduction Thank you for choosing our L9 electric scooter. Electric scooter is a fashion sports equipment. It is easy to drive and it uses quality parts and accessories to achieve best performance. It will bring you a lot of joy and fun. -
Page 3: Product And Parts
1 Product and parts Vehicle Parts Extension nozzle Screw*4 Hex wrench Charger... -
Page 4: Functional Diagram
Functional diagram Throttle Control panel USB Charging port Folding hook Brake handle handle Bluetooth Headlight Battery indicator Speed Shift Dual Drive Folding buckle Switch button Power/ headlight button Pedal headlight Buckle Kickstand Charging port Disc Brake Brake light Rear wheel Front wheel ：Bluetooth icon is lit to indicate successful connection ：... -
Page 5: How To Assemble
3 How to assemble 1. Secure the long pipe of the scooter and 2. Install the handlebar put down the kickstand 4. Make the on-off inspection after assembled. 3 .Use the hex wrench to lock the screws on both sides... -
Page 6: How To Charge
4.How to charge 1.open the rubber plug 2.Insert the charging plug 3.Tighten the rubber plug after charging finished. 5 learning to drive To avoid injury, please wear helmets and protective 1.Check the battery indicator equipment when drive outside. - Page 7 2 Stand on the pedal with one foot, 3 When the electric scooter slides, move your and push the other foot backward other foot on the pedal and stay steady. Then gently hit the throttle (need more than 3km / h speed) 4 To slow down, you can release the accelerator/throttle.
-
Page 8: Safety Instructions
6 Safety instructions Safety hazards to be avoided 1 Please avoid riding in the rain 2 in case of unconventional road surface such as deceleration belt / Elevator threshold / pothole Road, please do not pass through at high speed. Please keep the medium and low speed (5-10km / h) on the rough road.A little knee bending can make you better adapt to the above complex road surface 3 Avoid hitting the head against the door frame, elevator and other high obstacles... - Page 9 Safety instructions • Electric scooter is one kind of entertainment sport tools instead of a vehicle. It will become the public transportation when you ride it into the public area.So there are also have the same safety risks with all other vehicles. Driving accoring to instructions of the manual strictly will protect you and others ,and also obey the national and provincial traffic rules will reduce the safety risks.
-
Page 10: Fold And Carry
7 Fold and Carry Fold Open First,Make Sure the power is off. Second, Hold the tube when open the folding buttion,Then Find the position of folding hook,and Fix the foldin hook to the rear fender. When opening, First,Press the folding hook,Then hold the vertical pipe and lock the folding button . Carry After folding, carry with one or both hands by holding the tube Please don’t carry by handling the rear mudguard... -
Page 11: Daily Maintenance
8 Daily maintenance Cleaning and storage of electric scooter If there is a stain on the surface of the electric scooter, use soft cloth with clean water to wipe it; if there is a stain that is difficult to clean, use toothpaste to smear it and brush it repeatedly , and then clean it with wet cloth. - Page 12 In order to avoid recharging when the power is completely exhausted, and try to use it after charging, which can greatly extend the life of the battery. In addition,the battery pack can play a higher range and performance when used in the normal temperature; and if used in the environment lower than 0 ℃, the battery life and performance will decline.
-
Page 13: Specification
9 Specification Parameters project electric scooter parameters L × W× H (mm) 1130*500*1150mm Folded size Parameters 1130*500*480mm L × W× H (mm) Product weight vehicle mass（ kg） about 14.0kg Max. load 120kg Target Age range of application 16-50years old Audience Applicable height 120-200cm Maximum speed (km / h) about 25... -
Page 14: Harmful Names And Contents In Products
Rated current (A) Charger Product certification CCC,ROHS Charging time (h) about 5 hours 10 Name and content of harmful substances in products Harmful Hazardous substances P o l y b r o m i n a t e d Polybrominated Part Name lead mercury... -
Page 15: Warranty Policy
11 warranty policy Friendly tips: As the packing box is required to ensure the safety transportation, we suggest you keep the packing box for at least 15 days since from you receive the goods. Warranty content Type warranty content t i m e Frame assembly, hub motor, controller, Handle bar, forehead body, middle cabin Main parts... - Page 16 E-scooter Shenzhen Rulind Electronic Technology Co., Ltd...
