Summary of Contents for RS Flight Systems iS CANaerospace Logger

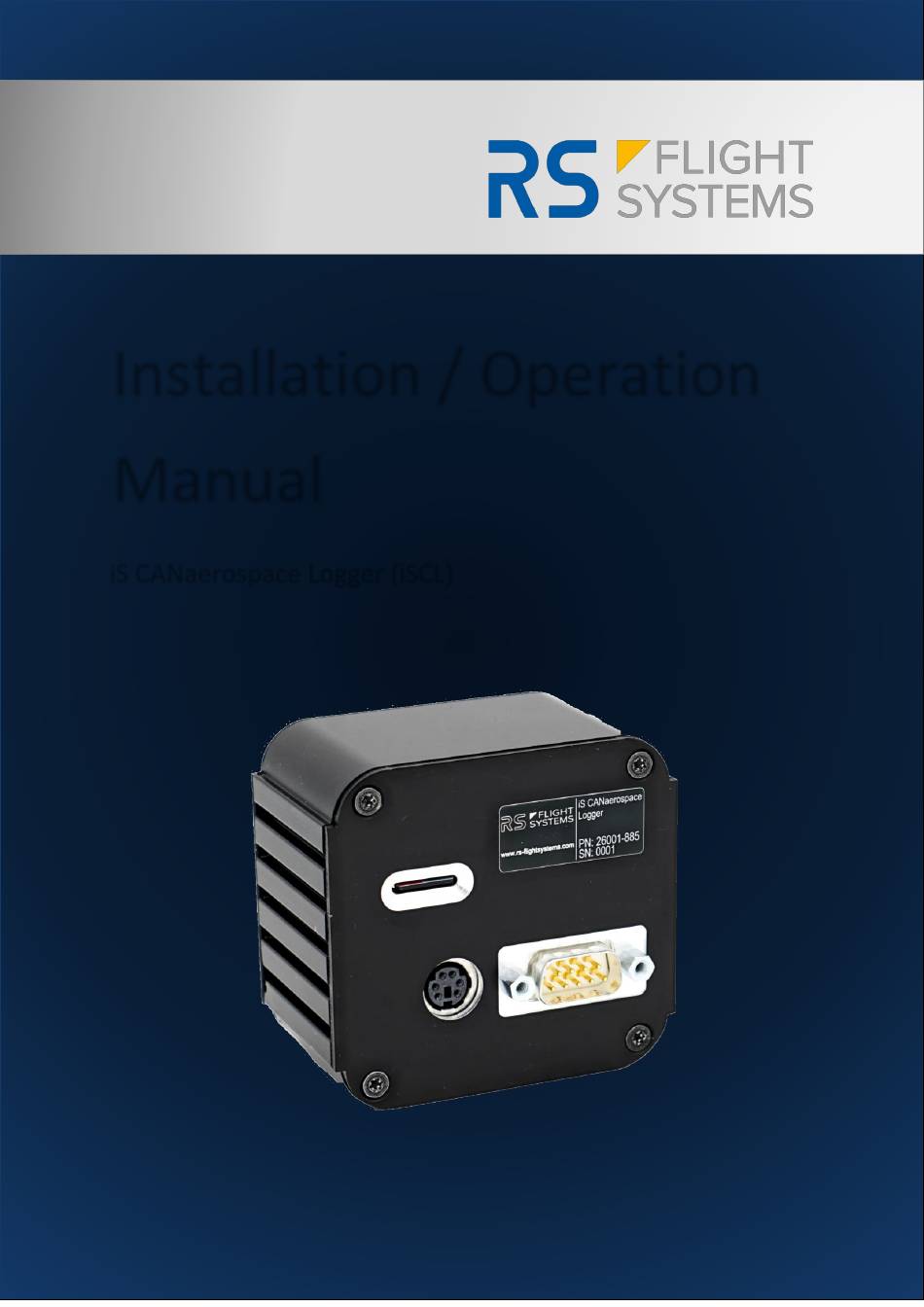

- Page 1 Installation / Operation Manual iS CANaerospace Logger (iSCL) Version: 1.00 © Copyright 2022 RS Flight Systems GmbH...
-
Page 2: Table Of Contents
Limited Warranty ............................ 3 Overview Software Versions ........................3 System Description ...........................4 Technical Specifications ........................5 Mechanical Installation ........................6 Drawings iS CANaerospace Logger ......................7 Electrical Installation ........................9 LANE A Connector ........................... 9 GPS Receiver Connector ........................10 Available Accessories ..........................11 Operation ............................ -
Page 3: Preface
Preface Thank you for purchasing an RS Flight Systems iS CANaerospace Logger (iSCL). We are pleased that you have chosen our product and are confident that it will meet all your expectations. In case of questions or problems with the unit, feel free to contact us:... -
Page 4: System Description
Optional Wiring harness kit available for third party devices like primary flight displays (PFD) and multi-function displays (MFD) • High level of manufacturing and quality control • Engineering and production exclusively done in Germany Figure 2-1: iS CANaerospace Logger with optional accessories 20.07.2022 | V1.00 Installation / Operation Manual iS CANaerospace Logger... -
Page 5: Technical Specifications
Technical Specifications iS CANaerospace Logger Dimensions 71 x 66 x 41 mm (width, height, depth) 2.80 x 2.60 x 1.61 in Mounting Depth 45 mm excl. connectors 1.77 in Mounting 0.25 kg Total Mass 0.55 lbs Housing Machined Aluminum, surface black anodized... -
Page 6: Mechanical Installation
Forced cooling is not necessary. The installation must be in accordance with the appropriate guidelines approved by the respective aviation authority. The person installing the device is responsible for compliance with all applicable legislation. 20.07.2022 | V1.00 Installation / Operation Manual iS CANaerospace Logger... -
Page 7: Drawings Is Canaerospace Logger
Drawings iS CANaerospace Logger Figure 4-1: iS CANaerospace Logger (front view) Installation / Operation Manual 20.07.2022 | V1.00 iS CANaerospace Logger... - Page 8 Figure 4-2: iS CANaerospace Logger (side view) Figure 4-3: iS CANaerospace Logger (isometric view) 20.07.2022 | V1.00 Installation / Operation Manual iS CANaerospace Logger...
-
Page 9: Electrical Installation
CANL Aircraft Ground AC_GND PWR_OUT Positive Power Supply, +9 - 36 VDC CAN High A CANH CAN High A CANH Aircraft Ground AC_GND Table 5-2: Pin out Lane A Connector Installation / Operation Manual 20.07.2022 | V1.00 iS CANaerospace Logger... -
Page 10: Gps Receiver Connector
Figure 5-1: iSCL Wiring Diagram GPS Receiver Connector The provided GPS receiver has a mating connector for the GPS port, see Figure 5-1. Figure 5-2: GPS receiver 20.07.2022 | V1.00 Installation / Operation Manual -10- iS CANaerospace Logger... -
Page 11: Available Accessories
Contact Extraction and Insertion Tool 10-572 Extraction Tool D-SUB Fits for D-SUB connectors Power Supply Unit for the EMU and SCU 10-193 Power Supply Unit Electromagnetic shielding Table 5-3: Connectors, Harnesses and Accessories Installation / Operation Manual 20.07.2022 | V1.00 iS CANaerospace Logger -11-... -
Page 12: Operation
Figure 6-5) allows for visualization and post-processing of the recorded data as well as a three- dimensionally georeferenced data conversion to Google Earth compatible files. The EMDS software is available on the following server: https://www.rs-flightsystems.com/product-page/emu-912xis 20.07.2022 | V1.00 Installation / Operation Manual -12- iS CANaerospace Logger... - Page 13 Figure 6-1: Engine Management Debriefing Station (EMDS) Software Figure 6-2: EMDS Data Screen Installation / Operation Manual 20.07.2022 | V1.00 iS CANaerospace Logger -13-...
- Page 14 Figure 6-3: EMDS Fault Matrix Screen Figure 6-4: EMDS Limits Screen 20.07.2022 | V1.00 Installation / Operation Manual -14- iS CANaerospace Logger...
-
Page 15: Software Update
Make sure to format the microSD card in FAT32 format (exFAT/NTFS is not supported!) • Ensure the microSD card is empty • Download the latest firmware from the RS Flight Systems website ( https://www.rs- flightsystems.com/product-page/is-canaerospace-logger • Do not rename the firmware file Installation / Operation Manual 20.07.2022 | V1.00... - Page 16 Copy the downloaded binary file: mb0.srd & mb1.srd in the root directory of the microSD card • Insert the microSD card in the sensor unit • Power on the iSCL 20.07.2022 | V1.00 Installation / Operation Manual -16- iS CANaerospace Logger...
-
Page 17: Abbreviations And Terms
Engine Management Unit European Norm Ground GNSS Global Navigation Satellite System (e.g., GPS, Galileo, GLONASS) Harness Interface Connector iSCL iS CANaerospace Logger International Organization for Standardization Input/Output Multi-function display Primary flight display Society of Automotive Engineers Secure Digital (type of memory card) SDHC Secure Digital –... - Page 18 RS Flight Systems GmbH Oberer Luessbach 29-31 82335 Berg | Germany +49 8178 8681 – 300 contact@rs-flightsystems.com www.rs-flightsystems.com iS CANaerospace Logger | Version: 1.00 © Copyright 2022 RS Flight Systems GmbH...
