Rotary RWB380.3DTEC Operation & Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

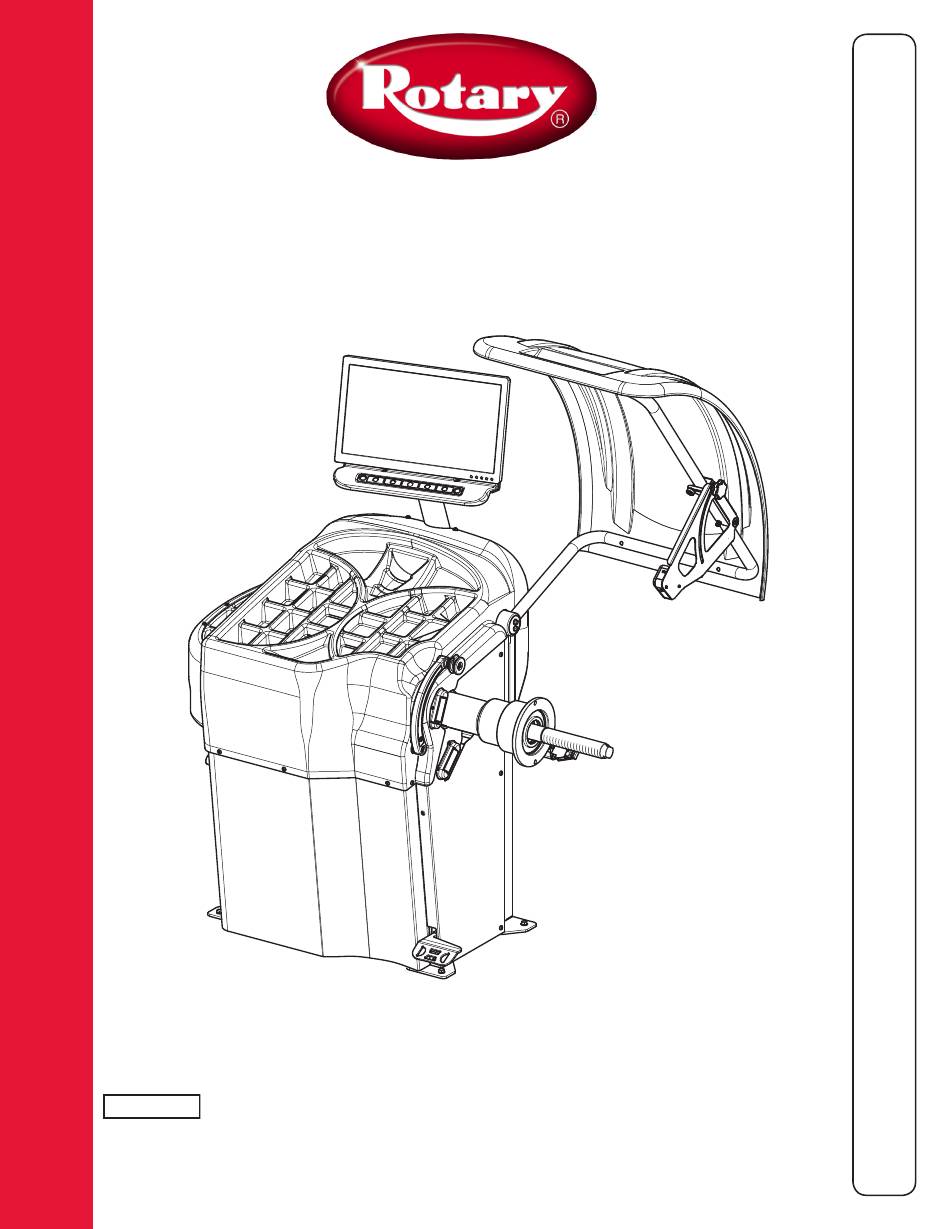

RWB380.3DTEC (R180) Wheel Balancer
IMPORTANT
Any damage caused by failure to follow the instructions in this manual or improper machine
use shall relieve the manufacturer of all liability.
© June 2022 by Vehicle Service Group. All rights reserved.
CO11823.10
O
O
P
P
E
E
R
R
A
A
T
T
I
I
O
O
N
N
&
&
M
M
A
A
I
I
N
N
T
T
E
E
N
N
A
A
N
N
C
C
E
E
M
M
A
A
N
N
U
U
A
A
L
L
1297-M054-02
Rev. n. 02 (06/2022)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RWB380.3DTEC and is the answer not in the manual?

Questions and answers

Related Manuals for Rotary RWB380.3DTEC

Summary of Contents for Rotary RWB380.3DTEC

  • Page 1 RWB380.3DTEC (R180) Wheel Balancer & & IMPORTANT Any damage caused by failure to follow the instructions in this manual or improper machine use shall relieve the manufacturer of all liability. 1297-M054-02 © June 2022 by Vehicle Service Group. All rights reserved.

  • Page 2: Table Of Contents

    SUMMARY GENERAL DESCRIPTION _____________________________________________________________________________ 4 SYMBOLS USED IN THE MANUAL _____________________________________________________________________ 5 PLATES LOCATION DRAWING _________________________________________________________________________ 6 GENERAL INTRODUCTION ______________________________________________________________________ 8 Introduction __________________________________________________________________________________________8 INTENDED USE _______________________________________________________________________________ 8 Training of personnel ___________________________________________________________________________________8 SAFETY DEVICES ______________________________________________________________________________ 9 Residual risks ________________________________________________________________________________________ 10 IMPORTANT SAFETY INSTRUCTIONS ____________________________________________________________ 11 GENERAL SAFETY RULES ______________________________________________________________________________ 12 PACKING AND MOBILIZATION FOR TRANSPORT ___________________________________________________ 13 UNPACKING ________________________________________________________________________________ 14...
  • Page 3 13.7 Standard balancing programs ___________________________________________________________________________ 48 13.7.1 Static ___________________________________________________________________________________________ 48 13.7.2 Static-1 _________________________________________________________________________________________ 48 13.7.3 Static-2 _________________________________________________________________________________________ 48 13.7.4 Dynamic ________________________________________________________________________________________ 49 13.7.5 ALU-S __________________________________________________________________________________________ 49 13.7.6 ALU-S1 _________________________________________________________________________________________ 49 13.7.7 ALU-S2 _________________________________________________________________________________________ 50 13.7.8 ALU-1 __________________________________________________________________________________________ 50 13.7.9 ALU-2 __________________________________________________________________________________________ 50 13.7.10 ALU-3 __________________________________________________________________________________________ 51 13.7.11 ALU-4 __________________________________________________________________________________________ 51 13.8...

  • Page 4: General Description

    GENERAL DESCRIPTION FIG. 1 1 – Weight top cover 13 – Distance-diameter caliper 2 – Pliers for weight fitting 14 – 7-keys-keyboard 3 – Automatic width measuring device assembly 15 – Lateral guard 4 – Threaded chuck 16 – Wheels adapter Kit 5 –...

  • Page 5: Symbols Used In The Manual

    SYMBOLS USED IN THE MANUAL Symbols Description Read instruction manual. Wear work gloves. Wear work shoes. Wear safety goggles. Mandatory. Operations or jobs to be performed compulsorily. Danger! Be particularly careful. Warning. Be particularly careful (possible material damages). Move with fork lift truck or pallet truck. Lift from above.

  • Page 6: Plates Location Drawing

    PLATES LOCATION DRAWING FIG. 2 VS999923350 VS999923200 VS999923190 VS99990758 VS999923160 VS999923370 VS999923320 VS999923360 VS999916311 VS999923310 VSB4221000 VS999914290 VS999912940 VS99990114 VS999921720 VS999910050 VS999922780 VS999921730...
  • Page 7 Electricity danger plate VS999910050 Protection device use plate VS999912940 Lifting plate VS999914290 Serial number plate VS999916311 Rubbish skip plate VS999921720 Rotary plate VS999921730 Rotary plate VS999922780 Laser aperture plate VS999923160 Prop 65 Attention plate VS999923190 Laser classification class 1 plate VS999923200...

  • Page 8: General Introduction

    Introduction Thanks for purchasing the RWB380.3DTEC (R180) tire balancer! The RWB380.3DTEC (R180) is designed and built for professional garages. The tire balancer is easy to use with safety in mind. Following the care and maintenance outlined in this tire balancer manual your tire balancer will provide years of service.

  • Page 9: Safety Devices

    SAFETY DEVICES DAILY CHECK THE INTEGRITY AND THE FUNCTIONALITY OF THE SAFETY AND PROTECTION DEVICES ON THE EQUIP- MENT. • Main switch located on the side of the equipment. Its function is to disconnect equipment electric supply. • Protection guard. Its function is to protect the operator from possible projections of materials on the wheel during its spin.

  • Page 10: Residual Risks

    Residual risks The equipment was subjected to a complete analysis of risks according to reference standard EN ISO 12100. Risks are as reduced as possible in relation with technology and equipment functionality. Possible residual risks have been emphasized through pictorial representations and warnings whose location is indicated in “PLATES LOCATION DRAWING”...

  • Page 11: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using your garage equipment, basic safety precautions should always be followed, including the following: 1. Read all instructions. 2. Care must be taken as burns can occur from touching hot parts. 3. Do not operate equipment with a damaged cord or in case the equipment has been dropped or damaged, until it has been examined by a qualified service person.

  • Page 12: General Safety Rules

    GENERAL SAFETY RULES • Any tampering with or modification to the equipment not previously authorized by the manufacturer exempts the latter from all respon- sibility for damage caused by or derived from said actions. • Removing of or tampering with the safety devices or with the warning signals placed on the equipment leads to serious dangers and represents a transgression of OSHA safety standards.

  • Page 13: Packing And Mobilization For Transport

    PACKING AND MOBILIZATION FOR TRANSPORT HAVE THE EQUIPMENT HANDLED BY SKILLED PERSONNEL ONLY. THE LIFTING EQUIPMENT MUST WITHSTAND A MINIMUM RATED LOAD EQUAL TO THE WEIGHT OF THE PACKED EQUIPMENT (SEE PARAGRAPH “TECHNICAL SPECIFICATIONS”). The equipment is packed partially assembled. Handling must be by pallet-lift or fork-lift trolley, Fig.

  • Page 14: Unpacking

    UNPACKING DURING UNPACKING, ALWAYS WEAR GLOVES TO PREVENT ANY INJURY CAUSED BY CONTACT WITH PACKAGING MATERIAL (NAILS, ETC.). The cardboard box is supported with plastic strapping. Cut the strapping with suitable scissors. Use a small knife to cut along the lateral axis of the box and open it like a fan.

  • Page 15: Working Environment Conditions

    WORKING ENVIRONMENT CONDITIONS The equipment must be operated under proper conditions as follows: • temperature: +5 °C - +40 °C (+41 °F - +104 °F) • relative humidity: 30 - 95% (dew-free) • atmospheric pressure: 860 - 1060 hPa (mbar) (12.5 - 15.4 psi). The use of the equipment in ambient conditions other than those specified above is only allowed after prior agreement with and approval of the manufacturer.

  • Page 16: Equipment Assembly

    EQUIPMENT ASSEMBLY ALL EQUIPMENT ASSEMBLY OR ADJUSTMENTS MUST BE CARRIED OUT BY PROFESSIONALLY QUALIFIED STAFF. After removing the various components from the packing, check that they are complete, and that there are no missing or damaged parts, then comply with the following instructions for the assembly of the components making use of the following series of illustrations. Anchoring system The packed equipment is secured to the support pallet through the holes on the chassis and indicated in the figure below.

  • Page 17: Assembly Procedures

    Assembly procedures 9.2.1 Fitting the chuck on the flange Screw the chuck with a 27 mm open wrench (Fig. 6 ref. 1) on the flange (Fig. 6 ref. 2). Fig. 6 9.2.2 Monitor fitting 1. Mount the monitor (Fig. 7 ref. 1) and the keyboard cover (Fig. 7 ref. 2) to the monitor support (Fig. 7 ref. 3) using the washers (Fig. 7 ref.

  • Page 18: Fitting The Protection Guard

    9.2.3 Fitting the protection guard 1. Mount the protection guard (Fig. 8 ref. 1) to the support (Fig. 8 ref. 2) using the bolts (Fig. 8 ref. 3), interposing the Belleville washers (Fig. 8 ref. 4) and the tab washers (Fig. 8 ref. 5 - 6); 2.

  • Page 19: Electrical Connections

    10.0 ELECTRICAL CONNECTIONS ALL ELECTRICAL CONNECTIONS ARE TO BE DONE BY QUALIFIED PERSONNEL ONLY. BEFORE CONNECTING THE EQUIPMENT MAKE SURE THAT: • THE MAIN POWER RATING CORRESPONDS TO EQUIPMENT RATING AS SHOWN ON THE CORRESPONDING PLATE; • ALL MAIN POWER COMPONENTS ARE IN GOOD CONDITION; •...

  • Page 20: Electrical Checks

    10.1 Electrical checks BEFORE STARTING UP THE WHEEL-BALANCER, BE SURE TO BECOME FAMILIAR WITH THE LOCATION AND OPERA- TION OF ALL CONTROLS AND CHECK THEIR PROPER OPERATION (SEE PAR. “CONTROLS”). CARRY OUT A DAILY CHECK OF MAINTAINED-TYPE CONTROLS FOR PROPER FUNCTIONING, BEFORE STARTING EQUIPMENT OPERATION.

  • Page 21: Fitting The Wheel On The Chuck

    11.0 FITTING THE WHEEL ON THE CHUCK To achieve perfect balancing, the wheel must be carefully and properly fitted on the chuck. Imperfect centering will inevitably cause unbalances. IMPORTANT ONLY ORIGINAL CONES AND ACCESSORIES, SPECIALLY DESIGNED FOR USE WITH THE WHEEL BAL- ANCERS, ARE TO BE USED.
  • Page 22 Some aluminium wheels, with very high centering, must be fitted with the cone outside the wheel: 5. clean the chuck (Fig. 12 ref. 1) before fitting the wheel; 6. fit the wheel (Fig. 12 ref. 3) with the inside of the rim towards the wheel balancer, until the wheel is up against the support flange (Fig.

  • Page 23: Ultrasound Sensor Support Adjustment

    11.2 Ultrasound sensor support adjustment Ultrasound sensor support (Fig. 14-15 ref. 1) must be used in the “fully-lowered” position, as shown in Fig. 14. However with wheels with great diameter, you can set it higher so that the wheel can be mounted easily onto the chuck (see Fig. 15). In order to carry out the adjustment, just loosen the handwheel (Fig.
  • Page 24 For what concerns exceptionally large wheels, sensor support may be moved outside the loading space of the same wheel, so that it can be easily mounted onto the chuck: 1. slacken the handwheels (Fig. 16 ref. 1) secured to the protection guard’s tubular and open sensor support (Fig. 16 ref. 2) by making it slide in the slot (Fig.

  • Page 25: Control Panel

    12.0 CONTROL PANEL The wheel balancers are equipped with a control panel equipped with a keyboard to interact/operate the controls presented in graphical form on the monitor. On the monitor are displayed all the instructions for the correct wheel balancing, for example indicating where the operator shall fit ad- hesive or clip weights and the balancing mode and/or option used, as well as correct wheel rotation for inner/outer weights positioning.

  • Page 26: Wheel Balancing

    13.0 WHEEL BALANCING 13.1 Switching the machine on and off Press the "ON" main switch (Fig. 9 ref. 1), located in the rear part of the equipment. Wait a few seconds until the complete loading of the operational program. The equipment is ready to operate when the main screen "Home"...
  • Page 27 By pressing button (Fig. 19 ref. 3) a second page is displayed, where You can access "Technical assistance" and "Run-out" Menu (see Fig. 20A). Fig. 20A 1 – User Menu/Assistance Menu 2 – Run-out menu (visible only if active) 3 – Return to previous page 4 –...
  • Page 28 By pressing button (Fig. 20B ref. 1) You can cyclically select the following laser working modes: Wheel automatic scanning and weight fitting through laser Weight fitting through laser Laser disabled In order to turn off the equipment, simply press the "OFF" main switch (Fig. 9 ref. 1). WHEN THE EQUIPMENT IS TURNED OFF LOSES ALL THE MEASUREMENTS AND THE STORED DATA (SIZE, SPINS, USERS, ETC ...).

  • Page 29: Balancing Programs Setting

    13.2 Balancing programs setting The setting of the balancing programs can be performed in three ways: - through the equipment automatic detection system (rapid setting); - through “Measurements acquisition” screen page, appearing when the button is pressed (Fig. 19 ref. 1) from the main page “Home”;...
  • Page 30 In case the operator wants to modify the weight fitting point “wheel outer side”, proceed as described hereafter: - from the page for wheel outer side weight fitting (Fig. 22) press “programs and measurements acquisition” push button (Fig. 22 ref. 1). Fig.
  • Page 31 - press the push button to perform the recalculation of the value of the weight to be fitted in the new set position. The screen page in (Fig. 22) is displayed again with the updated values. - in case the operator wants to modify the weight fitting point “wheel outer side”, simply press the push button (Fig. 22 ref. 2). The wheel, the laser and the screen page are pre-arranged for the application of such weight.
  • Page 32 IN CASE THE “WEIGHTS HIDDEN BEHIND SPOKES” OPTION IS ENABLED (AUTOMATIC), THE WHEEL STOPS WITH THE LASER INDICATING THE POSITION OF THE 1 WEIGHT TO FIT AND ON MONITOR IS DISPLAYED THE NEXT SCREEN PAGE: AFTER THE FITTING OF THE 1 WEIGHT BEHIND THE SPOKE, SIMPLY PRESS THE BUTTON TO POSITION THE WHEEL AND THE LASER FOR THE FITTING OF THE 2ND WEIGHT.
  • Page 33 • Procedure for electronic automatic RUN-OUT (rim inner side with laser). The electronic RUN-OUT measuring device is useful to check if the rim has some imperfections. MAKE SURE THE ICON IN THE OPTIONS MENU IS ENABLED (SEE PAR. 14.1). In order to display the eccentricity graph/wheel imperfection screen page, proceed as described hereafter: - perform the wheel spin by closing the guard.

  • Page 34: Programs Setting And Measurements Through Distance-Diameter Caliper Arm (If Enabled)

    13.2.2 Programs setting and measurements through distance-diameter caliper arm (if enabled) • Enabling of distance-diameter caliper arm From the “Home” page, press the (Fig._19 ref. 3) button to display the second page (Fig._20A). From the second page, press the (Fig._20A ref.
  • Page 35 REPEATEDLY BRINGING THE CALIPER ARM (FIG. 30 REF. 1) IN CONTACT WITH THE CHUCK (FIG. 30 REF. 2), THE PROGRAM WILL CYCLE FROM “ALU-S” TO “ALU-S1” TO “ALU-S2”, RETURNING THEN AT THE BEGINNING. WHENEVER THE DISTANCE-DIAMETER CALIPER IS KEPT IN POSITION FOR A FEW SECONDS AGAINST THE RIM (UNTIL THE EQUIPMENT MAKES AN APPROPRIATE SOUND NOTIFICATION), THE POSITION IS STORED AND THE VALUES MEASURED IN THE PRE-ARRANGED FIELDS IN THE SELECTED WHEEL BALANCING PROGRAM ARE LOADED.
  • Page 36 - The following screen page will appear on the monitor: Fig. 33 - Place the distance-diameter caliper pliers (Fig. 34 ref. 1) in contact with the rim. Fig. 34 Press the green button on the monitor to start the rim analysis procedure. The circle starts to spin at low speed (30 rpm) and at the end of the measurement the eccentricity graph appears, as shown in the Fig._35.

  • Page 37: Programs Setting Through "Measurements Acquisition" Screen Page

    13.2.3 Programs setting through “Measurements acquisition” screen page From the “Home” page, press the (Fig. 19 ref. 1) button to display "Measurements acquisition" screen page below: Fig. 36 PRESS THE BUTTON (Fig. 19 ref. 1) TO DISABLE THE AUTOMATIC FUNCTIONS FOR THE SELEC- TION OF THE BALANCING PROGRAM OF DISTANCE-DIAMETER CALIPER ARM, DESCRIBED IN PAR.

  • Page 38: Indicative Display Of Points Where To Detect Measures/To Fit Weight

    AFTER YOU HAVE SELECTED THE DESIRED PROGRAM, CLOSE THE PROTECTION GUARD TO AUTOMATICALLY DETECT THE MEASURES REQUIRED BY THE PROGRAM. DURING THE WHEEL MEASUREMENTS DETECTION, THE EQUIPMENT CARRIES OUT SIMULTANEOUSLY THE UNBAL- ANCE MEASUREMENT. - At the end of the operation, open the protection guard. 13.3 Indicative display of points where to detect measures/to fit weight Depending on the type of program selected, the equipment shows on the monitor the guideline points where to take measures and, con-...

  • Page 39: Displaying The Active/Modifiable Field

    13.4 Displaying the active/modifiable field During the various phases of measures detection, the active field turns yellow. Fig. 39 Pressing the buttons you can change the value and/or program inside the active field. To change the selected active field, simply press the button until the desired field is colored yellow.

  • Page 40: Wheel Balancing Screen Page Description

    13.5 Wheel balancing screen page description After executing the spin of the wheel, the monitor displays a series of important information that helps the operator in his operations and subsequent choices. Fig. 40 1 a b 1 – Measures used by the program to perform the spin and detect the values in P1 - P2 P1 –...
  • Page 41 8a – Display of the weights in OUNCES/GRAMS Set the unit of measurement for weights display to OUNCES/GRAMS (see Par. 14.1 “Options menu”). On the following screen page: press the button to display the weight with maximum resolution (0.05 oz) to be fitted on the wheel, expressed in ounces.
  • Page 42 Press the button to set the display of the weights to be fitted again in ounces. The following screen will appear on the monitor: 8b – Display of the weights in GRAMS Set the unit of measurement for weights display to GRAMS (see Par.

  • Page 43: Balancing Mode

    13.5.1 Balancing mode The equipment allows to perform the balancing (adhesive weights fitting) in two different ways: - using the laser pointer; - using the distance-diameter caliper arm with weights fitting pliers; • Weights fitting with laser pointer. ON DELIVERY, THE EQUIPMENT IS CONFIGURED WITH THE CORRESPONDING OPTION SELECTED. At the end of the spin, on the rim is displayed a laser pointer indicating the exact point where the adhesive weight has to be applied.
  • Page 44 The following screen page is displayed: Fig. 43 1 – Decrease of the weight positioning distance from the equipment 2 – Increase of the weight positioning distance from the equipment 3 – Distance of the point where fitting the adhesive weight on the outside of the wheel (modifiable field colored in blue) 4 –...
  • Page 45 - Press the “programs and measurements acquisition” button (Fig. 44 ref. 1). The following screen page is displayed: Fig. 45 1 – Distance of the point where fitting the adhesive weight on the inside of the wheel (modifiable field colored in blue) 2 –...

  • Page 46: Use Of Equipment With Automatic Width Measuring Device Assembly Disabled

    13.6 Use of equipment with automatic width measuring device assembly disabled If the automatic width measuring device assembly is disabled, the insertion of the measurements of diameter, width and distance of the rim from the equipment must be done manually. The reading of these measures can be made as follows: - visual readout on caliper graduated scale (distance);...
  • Page 47 VALUE IN MILLIMETERS TO ENTER VALUE IN INCHES TO ENTER DETECTED VALUE ON THE GRADUATED SCALE 0.20 0.40 0.60 0.80 1.00 1.20 1.40 1.60 1.80 1.95 2.15 2.35 2.55 2.75 2.95 3.15 3.35 3.55 3.75 3.95 10.5 4.15 4.35 11.5 4.55 4.70 12.5...

  • Page 48: Standard Balancing Programs

    13.7 Standard balancing programs 13.7.1 Static The STATIC program permits balancing wheels by fitting adhesive weights on the outer and inner sides of the rim. Enter the measurements (see Par. 13.2.1) and proceed with balancing operations. At the end of the procedure, the wheel balancing conditions can be checked by performing a trial spin. Fig.

  • Page 49: Dynamic

    13.7.4 Dynamic The DYNAMIC program allows the wheels balancing by fitting two clip adhesive weights: one on the outside and one on the inside rim. Enter the measurements (see Par. 13.2.1) and proceed with balancing operations. At the end of the procedure, the wheel balancing conditions can be checked by performing a trial spin. Fig.

  • Page 50: Alu-S2

    13.7.7 ALU-S2 ALU-S2 function permits balancing wheels with light alloy rims by fitting two adhesive weights: one on the outer and one on inner sides of the rim (the inner weight is at “12 o’ clock”). Enter the measurements (see Par. 13.2.1) and proceed with balancing operations. At the end of the procedure, the wheel balancing conditions can be checked by performing a trial spin.

  • Page 51: Alu-3

    13.7.10 ALU-3 ALU-3 function is a procedure that uses mixed weights to offset wheel unbalance: weight with clip on inner side of wheel, adhesive weight on outer side, not visible because inside the rim. Enter the measurements (see Par. 13.2.1) and proceed as for a dynamic unbalance only for the inner side of the wheel. At the end of the procedure, the wheel balancing conditions can be checked by performing a trial spin.

  • Page 52: Optional Balancing Programs

    13.8 Optional balancing programs 13.8.1 SPLIT mode The Split procedure proves useful when the dynamic unbalance of a wheel is fairly high and the weight to be fitted is not available, for instance a 100 g (3.52 oz). The unbalance can be corrected by splitting the total weight into two smaller weights. Split procedure eliminates errors by using “DYNAMIC”...
  • Page 53 Proceed to “DYNAMIC” unbalance measurement displaying by performing a standard wheel spin. Fig. 64 Once detected the unbalance values, verify that the equipment displays the ability to use the "SPLIT" option (Fig. 40 ref. 4a). Press button to shift to the next screen page. Fig.
  • Page 54 THE HIGHER THE CHOSEN WEIGHTS VALUE IS, THE MORE THEY WILL BE SPACED. After choosing the value of the weights to be fitted, press button to position the wheel for the application of the 1st clip weight. Fig. 67 THE TWO GREEN ARROWS INDICATE THAT THE WHEEL IS PROPERLY POSITIONED FOR THE APPLICATION OF THE 1ST WEIGHT.

  • Page 55: Weights Hidden Behind Spokes Mode

    13.8.2 Weights hidden behind spokes mode Adhesive correction weight positioning may not look attractive on some types of rims. In this case, "weights hidden behind spokes" mode can be used: it splits any correction weight on the outer side into two parts to be hidden behind rim spokes. It can be used in ALU-S Static mode.
  • Page 56 Press button to enter the relevant function. On the monitor the next screen page will be displayed: Fig. 72 Bring any spoke upwards at "12 o'clock" position and press the button to confirm and continue. Fig. 73 Lead to “12 o'clock” the 2nd spoke. The equipment will automatically calculate the total number of spokes. If the value shown on the screen (A) is correct, press the button The equipment automatically calculates weight position in two positions hidden behind the spokes.

  • Page 57: Matching Mode

    ON THE MARKET THERE CAN BE PARTICULARLY COMPLEX TYPES OF RIMS SHAPES AND/OR PROFILES SO THE EQUIPMENT COULD SUGGEST BALANCING PROGRAMS OR POINTS FOR POSITIONING THE WEIGHTS BEHIND THE SPOKES THAT DO NOT SUIT THE ACTUAL SHAPE OF THE RIM ITSELF. IN THIS CASE PLACE MANUALLY THE LASER TO REASSIGN CORRECTLY THE BALANCING LEVELS AND THE WEIGHTS FITTING POINTS.
  • Page 58 On the monitor the next screen page will be displayed: Fig. 77 STEP 1. Move the slider on the flange to the "12 o'clock" position. Make a reference mark, using chalk for instance, on the rim and tire, in line with the arrow on the flange, so as to be able to fit the rim back on in the same position on the equipment. Fig.
  • Page 59 STEP 2. Remove the wheel from the wheel balancer. Remove the tire and turn it on the rim through 180°. Fig. 80 Fit the wheel back on the wheel balancer, positioning the reference mark on the rim in line with the arrow on the flange. Fig.
  • Page 60 At the end of the spin the monitor will display the screen illustrated afterwards. Fig. 83 In this screen you will see the dynamic unbalance that the wheel had before performing the operation (Fig. 83 ref. 1), the dynamic unbal- ance after having rotated the tire through 180°...
  • Page 61 - press the button to bring the wheel into position. Fig. 86 - mark the reference mark on the TIRE at "12 o'clock" position. Press button to confirm that step 3 has been completed. STEP 4. Remove the wheel from the wheel balancer. Dismount and remount the tire on the rim so as to bring the two reference marks (rim and tire) to coincide.

  • Page 62: Special Balancing Programs

    13.9 Special balancing programs 13.9.1 Pax PAX mode is a special procedure specially devised to balance wheels using the “PAX System ®”. 2 adhesive weights on different planes are used on rim inner side. To launch a PAX measurement, proceed as follows: - make sure there are no stones and/or mud on the wheel.

  • Page 63: Wheel Balancing In Motorcycle Mode (With Distance Caliper Extension Kit)

    13.11 Wheel balancing in Motorcycle mode (with distance caliper extension Kit) By enabling “motorbike wheel balancing” function, the wheel balancers can also balance motorbike wheels. Before detecting the wheel sizes (see Par. 13.2.2), select motorcycle wheel balancing mode proceeding as described below: press the button , then the button and, finally, press the button...

  • Page 64: User Menu (Options And Calibration)

    14.0 USER MENU (OPTIONS AND CALIBRATION) From the main page “Home” press the button to move to the next screen page and the button to access the user menu. On the monitor, the following screen appears where you can enter the password. Fig.

  • Page 65: Options Menu

    14.1 Options menu Press the button (Fig. 91 ref. 1), to display the monitor screen to enable/disable options as shown below: Fig. 92 To enable / disable individual functions simply highlight the icon using the buttons and/or and press the button Pressing the button may involve, besides, the change in the unit of measurement from "mm"...
  • Page 66 List of available options THE ICONS OF THE AVAILABLE OPTIONS WILL TURN BLUE WHEN THEY ARE SELECTED. OPTIONS THAT ARE NOT AVAILABLE ARE MARKED WITH A RED “X”. Enable/disable the protection guard/spin (enabled by default). Enable/disable distance/diameter detection caliper (disabled by default). Enable/disable the display of static threshold after each spin (enabled by default).
  • Page 67 It enables the weights hidden behind spokes mode in automatic. After the scanning, the machine places the wheel for the fitting of the weight behind the first spoke (spokes position detected by the scan) (disabled by default). It enables the weights hidden behind spokes mode in manual (disabled by default). It enables the weights hidden behind spokes mode in semiautomatic.
  • Page 68 It allows you to change the unit of measurement of the rim diameter from mm to inches and vice versa. Enable/disable the weights positioning laser pointer function (disabled by default). Enable/disable the repositioning of the wheel at the end of the spin (enabled by default). Enable/disable the users function (disabled by default).

  • Page 69: Lower Weight Limit

    14.1.1 Lower weight limit Correction weight below a certain limit is normally shown equal to zero. This limit can be set from 10 g to 1 g (from 0.5 oz to 0.05 oz). At the end of the spin however, by pressing the button , the weight can be displayed with max resolution of 1 g (0.05 oz), not con- sidering the set lower limit.

  • Page 70: User Management

    To carry out this setting, press the icon . You will see the following screen: Fig. 95 1 – Weights thickness (height) (default value 4 mm (0.16”)) 2 – Weights width (default value 19 mm (0.75”)) From this screen page, change the size values of weights using the buttons THE YELLOW-COLORED-VALUE IS THE ACTIVE FIELD AND THE MODIFIABLE ONE.
  • Page 71 Press button (Fig. 96 ref. 2), shown on the monitor or select the field (Fig. 97 ref. 1) and subsequently press button display the screen page below: Fig. 98 A – Program used in the last carried out spin B – Acquired measurements for the last carried out spin Press any of the available numbers on the buttons at the bottom of the page to select the corresponding user.

  • Page 72: Equipment Calibrations

    14.2 Equipment calibrations There are three types of calibrations displayed by pressing the button (Fig. 91 ref. 2). Fig. 99 1 – Chuck “0” (zero) calibration 2 – Weight measurement sensors calibration 3 – Gage calibration (not enabled) 4 – Touch monitor calibration The three types will be explained in the next sections.

  • Page 73: Weight Measurement Sensors Calibration

    14.2.2 Weight measurement sensors calibration THE NUMERICAL VALUES SHOWN IN THE FIGURES BELOW ARE PURELY ILLUSTRATIVE. For the calibration of weight measurement sensors, follow three steps: 1. perform zero shaft calibration WITH wheel (and adapter); 2. perform weight measurement calibration WITH wheel (and adapter); 3.
  • Page 74 STEP 2 - Press the button (Fig. 99 ref. 2) to display the following screen page on the monitor: Fig. 104 - Detect iron rim-wheel measurements with the laser, through “DYN” mode. - Press button and close the guard to the perform the 1st spin of the wheel without weights. - At the end, on the monitor will appear the following screen, saying that you should apply a weight of 100 g (3.52 oz) to the “12 o'clock”...
  • Page 75 - Open the protection guard. - Turn manually the wheel until You have the weight of 100 g (3.52 oz) on the outer side at "12 o'clock". - Press the brake pedal and hold it down during the whole the following operation to avoid unexpected rotation of the chuck. - Remove the weight from 100 g (3.52 oz) from the outside of the wheel and apply it on the inner side at “12 o'clock”.
  • Page 76 STEP 3 - Remove the wheel from the chuck and perform a complete calibration procedure “0” (zero) chuck as described below. - Press the button (Fig. 99 ref. 1) to display the following screen page on the monitor: Fig. 109 - After making sure that the chuck is unloaded (no wheel or mounted accessories) close the guard.

  • Page 77: Gage Calibration

    14.2.3 Gage calibration Press the button (Fig. 99 ref. 3) to display the following screen page on the monitor: Fig. 111 1 – Distance-diameter caliper calibration Distance-diameter caliper calibration THE NUMERICAL VALUES SHOWN IN THE FIGURES BELOW ARE PURELY ILLUSTRATIVE. Press the button (Fig.
  • Page 78 The following screen will appear on the monitor to indicate the measured values: Fig. 114 1 – Example of value detected by the gage 2 – Example of value on threaded chuck – The value indicated next to the ruler symbol (Fig._114 ref. 1) must be equal to or ± 1 mm (0.04 ”) compared to what is indicated above the gage (Fig._114 ref.
  • Page 79 - Press push button . Wait a few seconds until you see the following screen: Fig. 117 - Place the gage against the chuck in the lower part of the it but on a smaller diameter than before as indicated on the image on the monitor.
  • Page 80 - Fit the measured wheel on the balancer and lock it on the chuck. - Turn the gage bushing on the inner edge of the wheel upwards (see Fig. 120). Fig. 120 - Press button to end the operation. On the monitor the next screen page will be displayed: Fig.

  • Page 81: Touch Monitor Calibration

    14.2.4 Touch monitor calibration Press the button (Fig. 99 ref. 4) to display the following screen page on the monitor: Fig. 122 Press the intersection of the lines that appear on the monitor. The points on which you need to press will be 4 and positioned near the corners of the monitor.

  • Page 82: Error Signals

    15.0 ERROR SIGNALS During wheel balancer operation, if wrong commands are given by the operator or device faults occur, an error code may appear on the monitor screen. Below is a troubleshooting chart. Error code Description Planned wheel speed not reached Calibration overcoming Wheel speed stability out of tolerance Encoder calibration error...

  • Page 83: Routine Maintenance

    16.0 ROUTINE MAINTENANCE BEFORE CARRYING OUT ANY ROUTINE MAINTENANCE OR ADJUSTMENT PROCEDURE, POSITION THE MAIN SWITCH “0”, DISCONNECT THE EQUIPMENT FROM THE ELECTRICITY SUPPLY USING THE SOCKET/PLUG COMBINATION AND CHECK THAT ALL MOBILE PARTS ARE AT A STANDSTILL. BEFORE EXECUTING ANY MAINTENANCE OPERATION, MAKE SURE THERE ARE NO WHEELS LOCKED ONTO THE CHUCK.

  • Page 84: Technical Data

    17.0 TECHNICAL DATA 17.1 Technical electrical data Max. absorbed voltage (Hp) 0.15 (100 W) Voltage (V) Power supply Phases Frequency (Hz) Typical current draw (A) Rotating speed (revolutions/min) < 100 17.2 Technical mechanical data Rim diameter setting (inches) 10 - 30 Wheel max.

  • Page 85: Dimensions

    17.3 Dimensions Fig. 123 100 mm 3.94" 1290 mm 770 mm 30.31" 50.79" 910 mm 1360 mm 35.83" 53.54"...

  • Page 86: Storing

    18.0 STORING If storing for long periods disconnect the main power supply and take measures to protect the equipment from dust build-up. Lubricate parts that could be damaged from drying out. 19.0 SCRAPPING When the decision is taken not to make further use of this equipment, make it inoperative by disconnecting it from the electrical power supply and the compressed air supply.

  • Page 87: Drawing Number A - Wiring Diagram

    Drawing number A - Rev. 4 VS129705573 Wiring diagram...
  • Page 88 1 – Power supply cable 2 – Net filter 3 – Fuse 4 – Cable from switch to filter to transformer 5 – Tilting switch 6 – Fuse 7 – Transformer 8 – Electronic kit 9 – Power board kit UL/CSA with connectors 10 –...
  • Page 89 Thank You Trained Operators and Regular Maintenance Ensures Satisfactory Performance of Your Wheel Service Equipment. Contact Your Nearest Authorized Rotary Wheel Service Equipment Parts Distributor for Genuine Replacement Parts. See Literature Package for Parts Breakdown.
