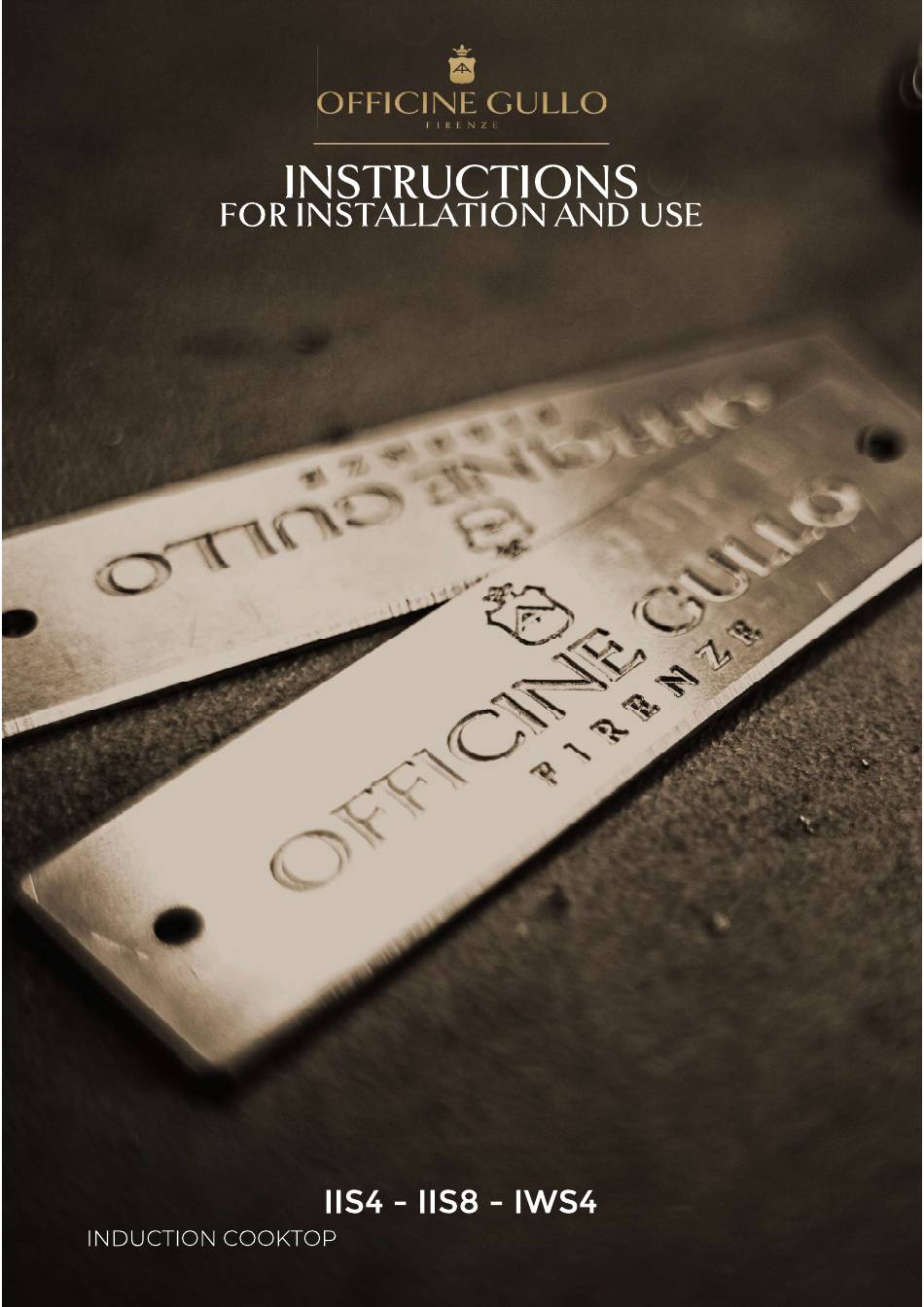

- Page 1 FOR RESIDENTIAL AND PROFESSIONAL USE...
- Page 2 CAUTION your possession (check the tag showing the characteristics). Before using the appliance, read the instruction manual carefully, as it contains important safety information on the proper installation, use and maintenance of the appliance. Please keep the instruction manual for further reference.
-
Page 3: Table Of Contents
INDEX INSTALLATION MANUAL GENERAL TECHNICAL DATA ....................8 TECHNICAL DATA TABLE .......................8 DECLARATION OF COMPLIANCE ..................9 INSTRUCTIONS FOR INSTALLATION ..................9 LAWS, TECHNICAL RULES AND NORMS ................9 INSTALLATION ........................9 ELECTRIC CONNECTION .....................10 EQUIPOTENTIAL ........................10 USER MANUAL INDUCTION GENERATOR ....................11 STARTING THE APPLIANCE ....................13 INSTRUCTIONS FOR USE .....................13 POTS AND PANS .......................13 FUNCTION CHECK ......................14... -
Page 4: Installation Manual
INSTALLATION MANUAL Fig. A/1 IIS4 E. Electrical connection... - Page 5 Fig. A/2 IIS8 E. Electrical connection...
- Page 6 Fig. A/3 IWS4 E. Electrical connection...
- Page 7 Fig. B CONNECTIONS OVERVIEW...
-
Page 8: General Technical Data
TECHNICAL DATA TABLE DIMENSIONS Power max Absorbition Power supply MODELS POWER SUPPLY max A cable IIS4 40 x 70 x 29h 400V/3 50/60 Hz 14,4 4 x1.5 mm² IIS8 80 x 70 x 90h 400V/3 50/60 Hz 4 x 4 mm²... -
Page 9: Declaration Of Compliance
DECLARATION OF COMPLIANCE This appliance is manufactured by OFFICINE GULLO S.r.l Headquarters and factory Via Della Torricella 29, Antella, Bagno a Ripoli 50012 Florence - Italy Tel. +39 055 65 60 3324 +39 055 62 18 07 The manufacturer declines any responsibility for direct or indirect damage caused by improper or incorrect installation, alterations, maintenance or use of the appliance, as in all the other cases considered in the items of our sales conditions. -
Page 10: Electric Connection
ELECTRIC CONNECTION The appliance is supplied without the connection cable. To install the power supply cable, proceed as follows: • Disconnect the power supply. • Remove the bottom panel • Push the connection cable through the cable blocker, connect the conductor wires to the corresponding terminals in •... -
Page 11: User Manual
USER MANUAL INDUCTION GENERATOR INDUCTION GENERATORS ARE A COMPONENT AND ARE NOT A COMPLETE, FINISHED MACHINE. Fields of use. keeping things warm and roasting. saucepans in iron. Induction generators should not be used to heat objects other than those listed above. Caution! Hazard! CAUTION Incorrect usage and failure to comply with the instructions provided could cause injury or damage to people and property. - Page 12 Saucepans must always be kept a small distance apart. They should not touch each other. When you remove the saucepan, it is advisable to switch off the cooking zone to prevent the heating system from switching back on automatically should you happen to replace the saucepan. Metal objects heat up very quickly if placed in the heating zone when it is in operation.
-
Page 13: Starting The Appliance
STARTING THE APPLIANCE Check the connection of the appliance and start it up following the instructions. INSTRUCTIONS FOR USE Caution: • Always keep an eye on the appliance while it is in use! • cooking times and use more energy. Instructions: •... -
Page 14: Function Check
FUNCTION CHECK After everything is connected perform the function check. · Remove pot from the cooking zone. · Adjust the cooking level to zero. · Switch on the mains supply. · The green and the red lamp must not light or blink. ·... -
Page 15: Normal Mode
NORMAL MODE The touch key allocation is standardised as pictured below. high on/off TOUCH KEY FUNCTION On/off key: The on/off key switches the FlexTouch on and off. On the 3 digit display appears 0 if the FlexTouch is on. After switching it on and no key is pressed for a long time the FlexTouch switches automatically off. The display switches off. -
Page 16: Residual Heat Symbol H
RESIDUAL HEAT SYMBOL H The H symbol appears when the glass ceramic temperature exceeds 65°C. The cooking surface should not be touched as there is a risk of burning. The symbol will light when the appliance is off. However, in the event of power failure it will not light. -
Page 17: Error Code Pattern
ERROR CODE PATTERN There are two different error types: • Generator errors (E1) • Digital control errors(E2) Generator errors are faults detected by the generator and forwarded to the control. On the display of the digital control “E1” appears. On the analogue controls faults can be detected according to the duration and frequency For example: error code E1 06 from the generator: long long... - Page 18 Check or replace Control unit operating unit, defective or check wiring wiring defective harness to unit Control unit failure Switch the generator Digital control has off, adjust the DIP- faulty ID switches correctly Replace the control Control unit faulty unit Air routes blocked Fan clogged, Internal temperature...
-
Page 19: Fault Messages From The Digital Controls (E2)
Mains connection Mains voltage is too Check mains error high or too low connection Mains voltage is too Check mains Mains adaptor error high or too low connection Switch off the main fuse, wait a Mains error few seconds and switch on Remove pan, switch off and wait... -
Page 20: Cleaning And Maintenance
The device found Contact customer no valid data support. Problem with supply Supply voltage voltage of Automatic reset the key pad Compatibility of LIN LIN version is not Contact customer version compatible support An error occurred, Contact customer Unknown error its cause is support unknown... -
Page 21: Procedure To Follow If The Appliance Is Not Going To Be Used For Some Time
All the varnished surfaces should be cleaned using a neutral detergent and, where necessary, a soft, possibly micro- Cleaning brushed steel surfaces PROCEDURE TO FOLLOW IF THE APPLIANCE IS NOT GOING TO BE USED FOR SOME TIME Clean and dry the appliance carefully according to the instructions. Disconnect the power supply. MAINTENANCE (ONLY FOR QUALIFIED PERSONNEL) plug or switch off the switch above the appliance.
