Somati system 1RM1 Instruction Manual

Sliding door drive
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Producer: Somati system s.r.o.
05/2015

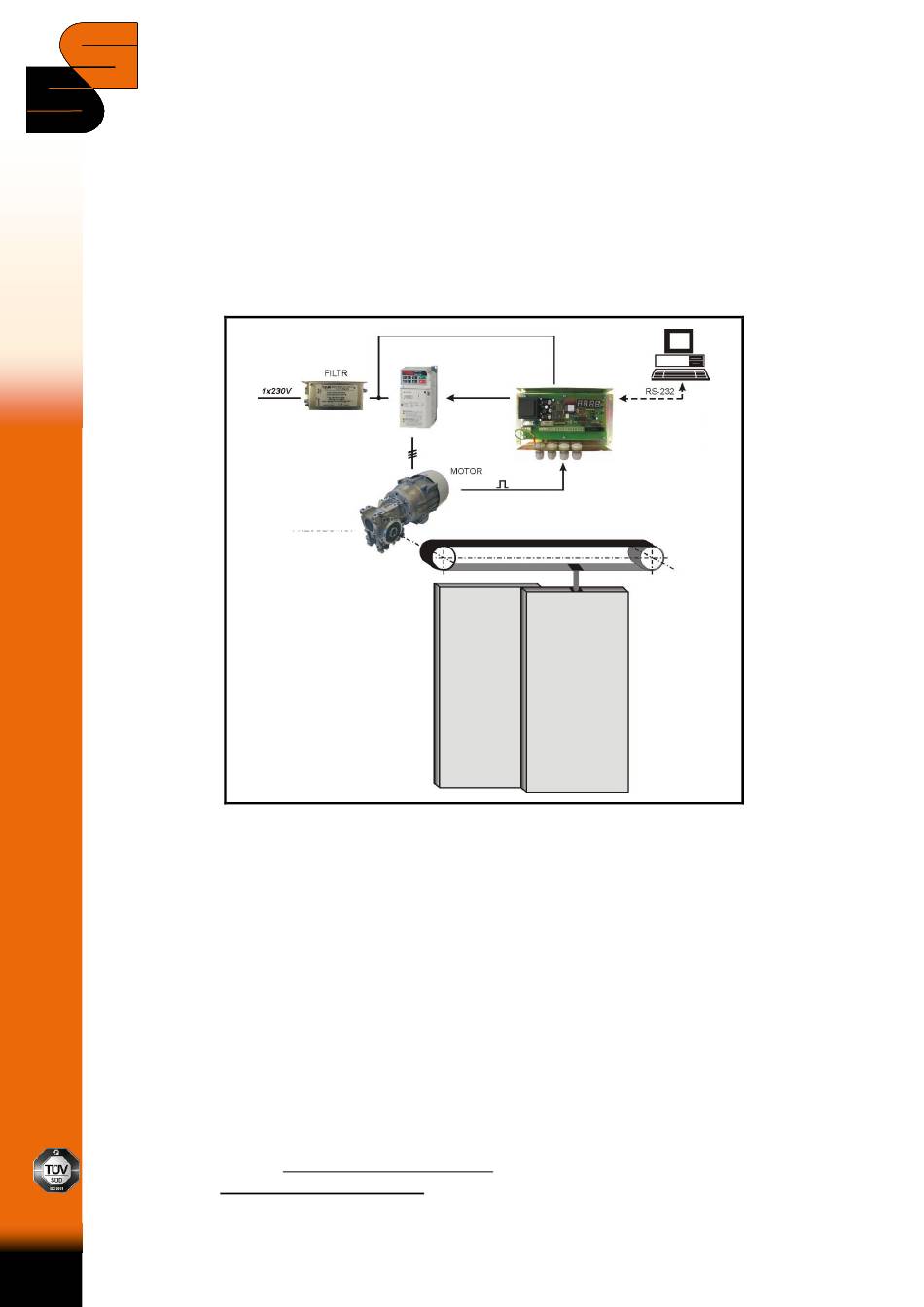

SLIDING DOOR DRIVE
INVERTER J1000 series
WORMGEARBOX
Instruction manual
Installation and setting manual
Jihlavská 510/2c
664 41 Troubsko, okr.Brno - venkov
E-mail
export@somati-system.cz
:
www.somati-system.cz
DOOR
CONTROL UNIT
VJ002v
Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko
ID: 29260159, Tax ID: CZ29260159
www.somati-system.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1RM1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Somati system 1RM1

  • Page 1 CONTROL UNIT VJ002v WORMGEARBOX Instruction manual Installation and setting manual Producer: Somati system s.r.o. Jihlavská 510/2c 664 41 Troubsko, okr.Brno - venkov E-mail export@somati-system.cz www.somati-system.cz Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko 05/2015 ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...
  • Page 2 The instruction manual of the inverter Varispeed J1000 is an integral part of the instruction and setting manual of 1RM1. Wiring of 1RM1 should be performed only when inverter and lift door control unit are turned OFF. Do not touch inverter inside equipment nor connected devices and elements for two minutes after power supply disconnection.

  • Page 3: Table Of Contents

    15.8 Signalization of door status ................33 15.9 Cabling 1 ....................34 15.10 Cabling 2 ....................35 15.11 Cabling 3 ....................36 15.12 Sensor connection for the drive 1RM1 ............37 Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko 05/2015 ID: 29260159, Tax ID: CZ29260159...

  • Page 4: Wiring Example

    - black PNP output to the terminals inA and inB 5. Sensors numbering: By looking at the motor from motor blower side and at clockwise rotation the sensor A precedes the sensor B. Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 5: Mechanical Installation

    7. Interconnect 0V of VJ002 and of inverter for proper function! 8. Use the 16A circuit breaker for the short-circuit protection of the 1RM1 power supply. 9. We recommend placing the circuit breaker or switch fuse near VJ002V for an easy and safe disconnection from the network in case of the reset VJ002V and converters when you set up parameters.

  • Page 6: Electrical Wiring

    Remember to safe and accessible disconnecting drive 1RM1 of the project at el. part of the drive. reset VJ002V such as disconnecting from the network or by using PC (key F121) without disconnecting from the network.

  • Page 7: Input/Output Connection Diagram Of Vj002V

    Input/output connection diagram of VJ002v Rated current 50mA Max. current 120mA Addition: Relay output Can be ordered only with the required relay Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 8: Reference Searching

    If the probe does not light when covering the diaphragms tooth may be faulty sensors supply - 24 V to VJ002V, a large distance probe from the sensing disc, broken wire, etc. Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 9: Reference Searching Via Limit Switch

    OFF in spite of attendance of starting signals on terminals S1 or S2. PoAc switch point on the maximum opening speed SoPE… Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...
  • Page 10 In case that the IDC signal is changed to go close during opening, the operation is controlled by set operation mode. According to the parameter values ctol is or is not in the evaluation function of overloading speed difference. Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 11: Closing

    When you enter ScPS below the minimum frequency E1-09 does not pass an internal start signal of the converter and the converter output is switched off even in the presence of the trigger signal S1 Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...
  • Page 12 E1-08 - the voltage at the center frequency determines the strength gate to the deceleration speed SCDE. Recommended settings can be found in tab. 5 and 6 Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 13: Overload Evaluation

    L6-03, the relay on the terminals MC and MA switches ON. Thus the signal of current overload is given. The door action is analogic to action after evaluation by speed difference, according to selected operation mode. Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 14: Pushing In End Positions

    300 ms - 24V between SGS and D0V. The external voltage from lift control system is brought to D24 and to D0V. Signals for lift control system are optically insulated. Input function VJ002V Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...
  • Page 15 Control unit VJ002V of sliding door engine 1RM1 is equipped with 4 programmable digital inputs in1, in2, in3, in4. These inputs can be assigned to the following control functions. It is true that it is not possible to assign a combination of collision, in this case the control locked.

  • Page 16: Important Control And Dsettings Inverter Components And Constants

    11 IMPORTANT CONTROL AND DSETTINGS INVERTER COMPONENTS AND CONSTANTS Digital operator This chapter contains extract from inverter Varispeed J1000 instruction manual and is focused to functions and setting related to 1RM1 drive and to co-operation with VJ002v units. Comprehensive inverter description, including maintenance instructions, faulty diagnosis etc.,...
  • Page 17 Read and change basic converter Setup mode parameters Read change converter Parameter settings parameters <1> change direction in LO mode LED lit after selecting LO mode Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 18: V/F Pattern

    - starting frequency after inverter start - by giving the reference, which is lower than present value in E1-09 start does not run though the starting signal is ON Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 19: Ramps And S-Curve Pattern

    A at frequencies below 10 Hz. Time of switched off by current values 1-5 minutes. Short- crossing value of 1 A during operation the gate or pressured currents up to 0.4 A will not cause undesired triggering. Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 20: Fault Diagnoses

    Fault Diagnoses The inverter is equipped by extensive diagnostics of the faults. Comprehensive list of faults is in inverter instruction manual. Faults that can be diagnosed in 1RM1 drive and corrective actions: Tab 3. Alarm and Error Displays LED Operator Display...

  • Page 21: Set 1Rm1

    -10 to +35 °C Conditions Storage temperature -20 to +35 °C Elevation 1500 m or less Humidity max. 90% RH (non-condensing) Expected Lifetime 10 000 000 cycles Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...
  • Page 22 Mechanical dimensions: Engine with gearbox 57,5 M6x10 14H7 Frekvency converter Lift unit VJ002V.03 J1000 – JZABOP2 (in metal box) Suppression filter - universal mounting Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...
  • Page 23 1 = LIB and STOP detection směr referencování 0 = reference to close Nref 0 – 2 1 = reference to open 2 = IDC reference setting Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...
  • Page 24 13 = Parameters set No. 3 16 = Parameters set No. 6 0: no function Hand 1: testing function, button UP – OPENING, button DOWN – CLOSING Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...
  • Page 25 The other converter parameters are not listed in the table, it is necessary to leave in the factory presets. The change could result in malfunction of the 1RM1. In case it is not clear, if it is neither any undesired transcription constants in Tab. No.3 not listed, it is possible to perform check in the verify menu, where the parameters are changed from the default.

  • Page 26: Programmable Relay Zen

    13 PROGRAMMABLE RELAY ZEN The switchboard 1RM1 for gate drive is equipped with programmable relay ZEN 20C1DR-D- V2, which processes the signals to / from the control unit gate VJ002V. Programmable display relays can read information about the status of inputs and outputs.
  • Page 27 OPEN. Random Black/White CLOSE. Black LIB – alarm. Black/White Black/White LIB – all OK. Black Button STOP is pressed. Black/White Black/White Button STOP is not pressed. Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 28: Periodical Inspections

    Replacement method If gate closed of full opening during Battery power failure of switchboard 1RM1. Replace with new part! 1 year Battery life is only one year. Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 29: Circumferential Schematics

    15 CIRCUMFERENTIAL SCHEMATICS Power supply Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 30: Power Unit

    Power unit Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 31: Frequency Converter Circuit

    Frequency converter circuit Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 32: Door Unit

    Door unit Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 33: Programmable Relay

    Programmable relay Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 34: Controls

    Controls Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 35: Photocell, Flashlight (Signalization)

    Photocell, flashlight (signalization) Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 36: Signalization Of Door Status

    Signalization of door status Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 37: Cabling 1

    Cabling 1 Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 38: Cabling 2

    Cabling 2 Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 39: Cabling 3

    Cabling 3 Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...

  • Page 40: Sensor Connection For The Drive 1Rm1

    Sensor connection for the drive 1RM1 In case of requirement connection of fire detectors to the rack 1RM1 is necessary to order module for controlling detectors - "module Cemotro Tlachlas" which includes entry for a balanced loop of sensors. It is necessary to connect according to the attached schedule.
  • Page 41 ELEKTROPOHONY Závodí 234  744 01 Frenštát pod Radhoštěm - CZ tel.:+420 556 880 611  fax:+420 556 880 698 e-mail: info@epo.cz  http://www.epo.cz Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko ID: 29260159, Tax ID: CZ29260159 www.somati-system.cz...
