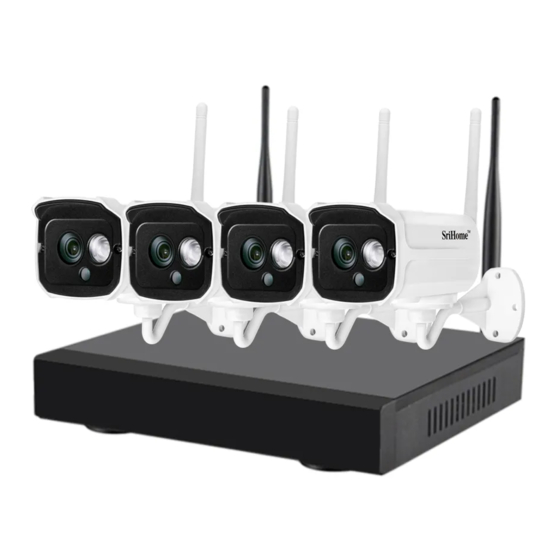

- Page 1 NVR Wireless Kit Quick Operation Guide V2.0 EN202209 For NVS001/NVS002/NVS004/NVS009...
- Page 2 1. Install wireless NVR 1-1. Connection NVR Connect the mouse to the USB port of the NVR. Connect to the monitor via a HDMI / VGA cable. (NVS009 please skip this step) Connect to the internet (Router or Switch) via a net-cable (Local access please skip this step) Connect to the DC 12V adapter and turn on the power.
- Page 3 B. The maximum of hard disk capacity is 8TB (Terabytes) There are 4 Wireless NVRs, please refer to the corresponding model to install the hard disk 2-1. Install HDD for NVS001/NVS002 (1) Loosening the screws on the panel's rear and side.
- Page 4 2-2. Install HDD for NVS004 Install the hard disk with a cross screwdriver. (1) Insert a SATA hard disk into the NVR hard disk interface. (2) Tighten the screws to secure the hard drive. Hard Disk Interface 2-3. Install HDD for NVS009 Note: The installed hard disk is a 2.5-inch high-speed hard disk (1) Open the hard disk compartment cover from the clip under the hard disk compartment (2) Connect a 2.5-inch SATA hard drive to the NVR hard drive interface...
- Page 5 3. SriHome APP Setup Step 1. SriHome App Installation Method 1: Scan the QR code to download “SriHome” App. Method 2: Search“SriHome”on Google Play or iOS App Store. Android Step 2. Register & Login SriHome App Step 3. Add the Device to App You can scan the Device Next...
- Page 6 FAQ1: Share the Wireless NVR to other users To protect the user's privacy, the first user is an administrator by default. Other users accessing the Wireless NVR need administrator permission, or they cannot login even with ID and password. The way to get permission is as follows: 1.
- Page 7 FAQ2. How to add new cameras to Wifi NVR The Wifi NVR is 8CH, if you need to add more cameras , please refer to the following steps to add. Note: 1. The cameras and wireless NVR in the wireless NVR kit are paired at the factory. 2.
- Page 8 FAQ3: Network Setting When the network shows an abnormal state 3-1. Check if your network cable is properly connected. 3-2. Double-click to open the network settings-select DHCP enable-OK. 3-3. If the DHCP function of the router is disabled, please enter the correct IP address manually. Network My Device PlayBack...
- Page 9 FAQ5: If the user forgets his password, he can operate as follows ① Right click on the blank space, close the system>log out. ② Tick automatic login> click Restart in the lower right corner. ③ Tell the customer service the date in the lower right corner to reset the password ④...
- Page 10 FAQ7: NVS009 output VGA/HDMI settings? Note: When switching to VGA/HDMI output, you need to connect NVS009 to another monitor Click the start menu in the lower left corner of the monitor monitor -> click the front-end output icon -> select VGA/HDMI in the output setting bar -> click OK GUI Display Channel Title Front Video Out...
