Summary of Contents for Kobold AFS-G2

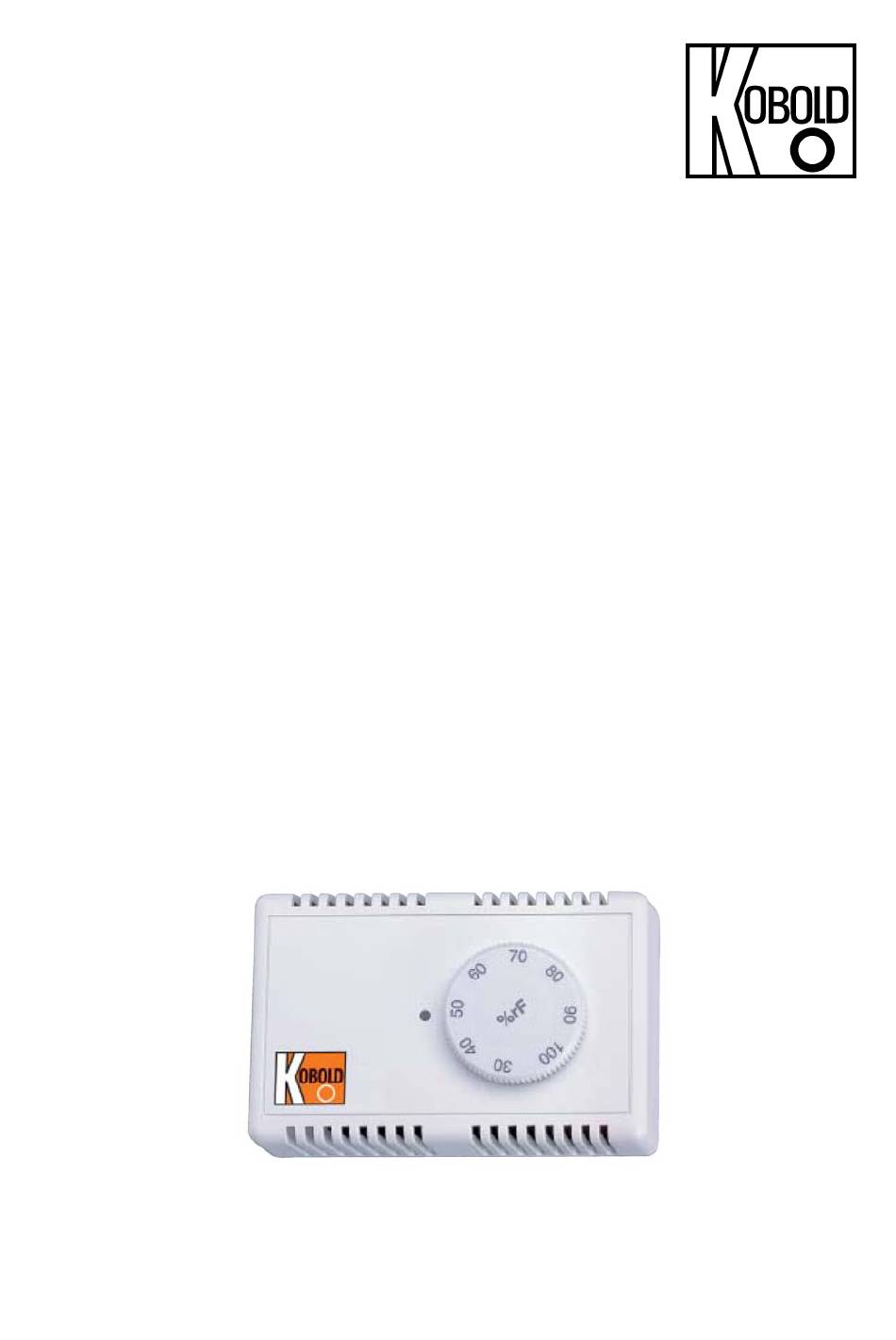

- Page 1 Operating Instructions Room Hygrostat Model: AFS-G2...
-
Page 2: Table Of Contents
Dimensions ....................9 Disposal ...................... 10 EU Declaration of Conformance ..............11 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 AFS-G2 K05/1222... -
Page 3: Note
Please read and take note of these operating instructions before unpacking and operating the unit, and follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Regulated Usage
AFS-G2 4. Regulated Usage The AFS-G2 is to be installed only in the specified applications. Every usage which exceeds the specifications is considered to be non-specified. Any damages resulting therefrom are not the responsibility of the manufacturer. The user assumes all risk for such usage. The application specifications include the installation, start-up and service requirements specified by the manufacturer. -
Page 5: Mechanical Connection
48V, the humidity controller can be used up to 100%RH. The humidity controller should not be used in aggressive media. Mounting: Physical Mounting: via slots in housing base. Mounting position: Arbitrary, preferably with the ventilation slots at right angles to the wind direction. AFS-G2 K05/1222 page 5... -
Page 6: Electrical Connection
Fx = Relative humidity of the air (actual value) Fw = Humidity adjusted on the knob (set value). If the relative humidity (Fx) falls below the setpoint value (Fw), the contact 1-4 opens, and the contact 1-2 closes. page 6 AFS-G2 K05/1222... -
Page 7: Operation
The air must be homogenous, e.g. possess constant humidity and temperature for the entire duration of the measurement. Influences of the relative air humidity For a temperature fluctuation of ±1 °C referred to various room temperatures. AFS-G2 K05/1222 page 7... -
Page 8: Maintenance
Water-repellent and protective film-forming deposits on the sensor, like resin aerosols, lacquer aerosols, fumigant substances etc., are harmful to almost all types of humidity sensors and should be avoided. page 8 AFS-G2 K05/1222... -
Page 9: Technical Data
AFS-G2 10. Technical Data Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 11. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 12. -
Page 10: Disposal
(Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment page 10 AFS-G2 K05/1222... -
Page 11: Eu Declaration Of Conformance
AFS-G2 14. EU Declaration of Conformance We, KOBOLD-Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Hygrostat Model: AFS-G2.. to which this declaration relates is in conformity with the standards noted below: EN 60730-1:2012 Automatic electrical controls for household and similar use -...
