Owner's Manual

IMAGE HERE?

'PerformR RIB'

PerformR RIB

Please keep this manual in a secure place and hand it over to

the new owner when you sell the craft.

If this is your first craft, or you are changing to a type of craft you are not familiar with, for your own comfort and

safety, ensure that you obtain handling and operating experience before assuming command of the craft. Any

boat dealer or national sailing federation or yacht club will be pleased to advise you of local sea schools, or

competent instructors.

1/29

Technical Software

Table of Contents

Need help?

Do you have a question about the PerformR RIB and is the answer not in the manual?

Questions and answers

Summary of Contents for Southern Pacific Inflatables PerformR RIB

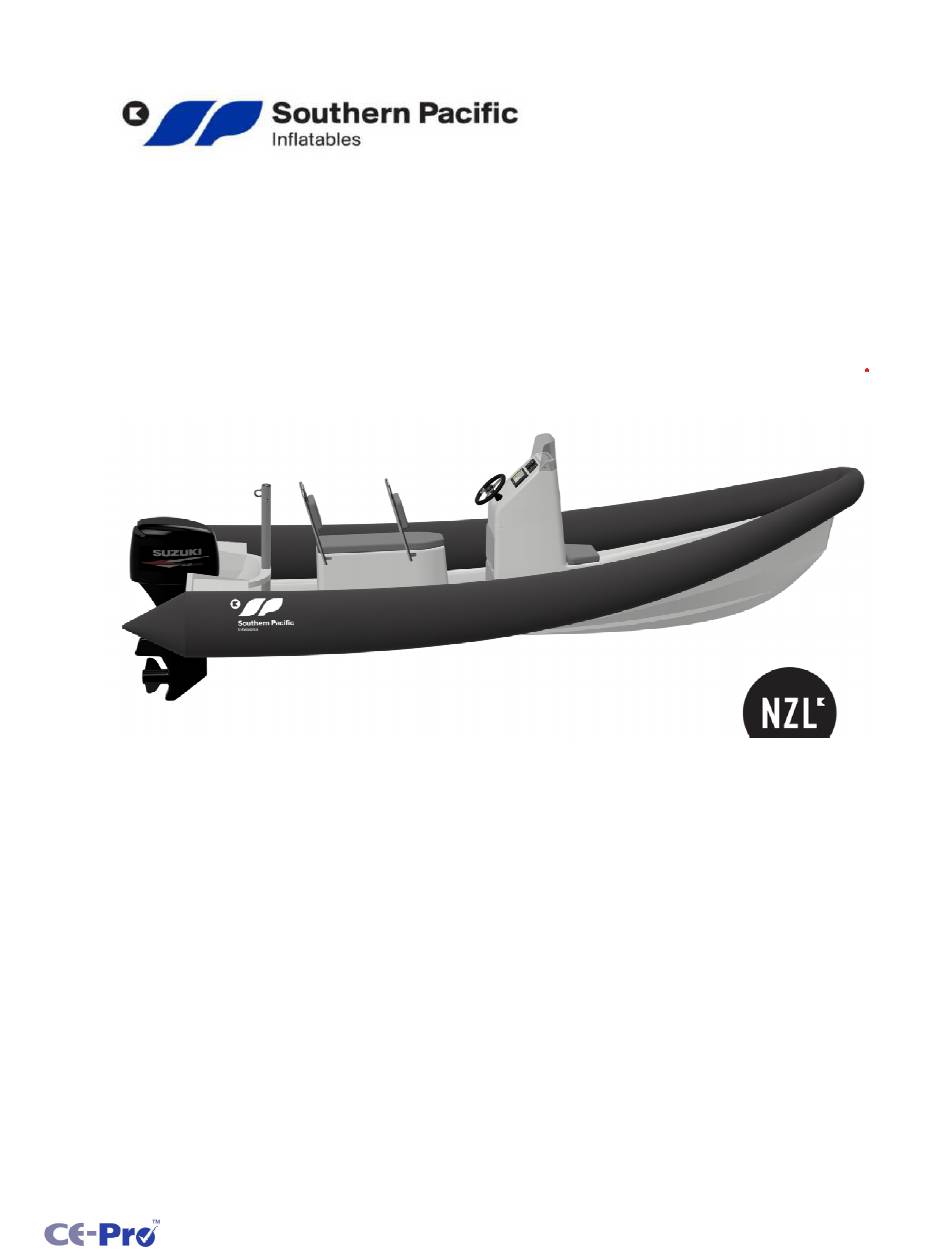

Page 1 Owner's Manual PerformR RIB Victoria Street West Auckland 1142 New Zealand Owner's Manual IMAGE HERE? 'PerformR RIB' PerformR RIB Please keep this manual in a secure place and hand it over to the new owner when you sell the craft.
Page 2: Table Of Contents
Owner's Manual PerformR RIB CONTENTS Section WELCOME Boating Experience Responsibility ABOUT THIS MANUAL Original Equipment Manufacturer (OEM) Manuals Safety Labels Explanation of Hazard Warnings GENERAL ARRANGEMENT Boat Identification & CE Marking Classification 3.1.1 RCD Design Category Explanation Principal Dimensions 3.2.1...
Page 3 Owner's Manual PerformR RIB NAVIGATION & OPERATION Use of Engines Handling Characteristics Visibility from the Main Steering Position Navigation Lights Anchoring, Mooring & Towing Filling With Fuel MAINTENANCE Maintenance & Storage of Tubes Maintaining the Electrical System Winter Storage ENVIRONMENTAL AWARENESS Leakage of Petrochemicals Black &...
Page 4: Welcome
PerformR RIB WELCOME Congratulations on becoming the new owner of a: PerformR RIB This manual has been compiled to help you to operate your craft with safety and pleasure. It contains details of the craft, the equipment supplied or fitted, its systems and information on their operation, set up, maintenance, prevention of risks and management of those risks.
Page 5: About This Manual
Owner's Manual PerformR RIB Never sail when the operator is under the influence of drugs or alcohol; Be aware of the crew/passenger's safety at all times; Reduce speed when there is limited visibility, rough water, people in the water nearby, boats, or structures;...
Page 6: Safety Labels
Owner's Manual PerformR RIB Safety Labels The craft and this manual show symbols which advise the owner/operator and crew of imperative safety precautions to follow when operating and/or servicing equipment. The following symbols may be found on your craft. They should be respected at all times.
Page 7: General Arrangement
Owner's Manual PerformR RIB GENERAL ARRANGEMENT Picture of boat/layout Boat Identification & CE Marking Classification Type of Boat PerformR RIB Manufacturer's Craft Identification Number NZ-QFX00000C121 Name of Boat Manufacturer Kiwi Yachting Consultants T/A Southern Pacific Inflatables RCD Design Category lear...
Page 8: Principal Dimensions
Owner's Manual PerformR RIB Principal Dimensions 3.2.1 Hull Size Length of Hull 6.000 Length on waterline 4.620 Length - max. overall 6.000 Beam of hull 2.180 Beam on waterline 1.700 Beam - maximum 2.180 Deadrise Angle 30.000 β (deg) Freeboard forward 1.258...
Page 9 Owner's Manual PerformR RIB Part of the information is given on the builder's plate affixed on the craft. A full explanation of this information is also given in the relevant sections of this manual. MANUFACTURER CITY, COUNTRY 1234 MODEL NAME MAXIMUM 22.0...
Page 10: Fixed Tanks
Owner's Manual PerformR RIB 3.2.4 Fixed Tanks Max. Fuel Tanks Tank Location Filler Location Drain Location Capacity (L) Petrol fuel tank Under Cockpit Floor Port side fwd No drain 3.2.5 Tubes Specification: POLYMAR® NAUTICA | Boat Line -450g/m²-EN ISO 2286-2 -Resistance to oil and fuel, dirt repellence -Tear strength (warp/weft) 400/400 N 3.2.6...
Page 11: Systems Descriptions
Owner's Manual PerformR RIB SYSTEMS DESCRIPTIONS Bilge pumps The combined capacity of the system is not intended to drain the craft in Warning the case of damage. Notice This boat is not fitted with any bilge pumps. It is recommended that a bailer/bucket is carried aboard for emergency bailing purposes.
Page 12: Dc System
Owner's Manual PerformR RIB 4.2.1 DC System Description The direct current (DC) electrical system derives its power from the series of batteries listed below. The batteries supply the components listed in tables below which show the settings of the overload protection breakers/fuses.
Page 13: Fuel System
Owner's Manual PerformR RIB Battery Disconnection Battery selector switch location: Near Battery Disconnect switch location(s): See table of batteries on previous page. Notice Batteries should be disconnected when not in use and especially while the boat is unattended. Essential service such as electric bilge pumps are wired directly to the batteries and will run even if the battery disconnect switch is open.
Page 14: Steering System
Owner's Manual PerformR RIB Refer to manufacturer's instructions for details of the above equipment. For details on tanks, refer to section: 3.2.4 Do not smoke or use open flame when filling with fuel, when working on Warning the fuel system and when in the engine room.
Page 15: Pre-Launch Observations
Owner's Manual PerformR RIB Hydraulic System The craft is fitted with the following hydraulic systems: Component Location Controls Control Location Steering (see section 4.4). Outboard engine Breakers Engine trim Transom Rocker switch Throttle lever The hydraulic system can be powered by the following sources:...
Page 16: Risk Of Loss Of Stability
Owner's Manual PerformR RIB Risk of Loss of Stability The stability and buoyancy of this boat has been assessed on the basis of the weights specified in section: 3.2.3 Any change in the disposition of the masses aboard (for example, the...
Page 17: Risk Of Fire
Owner's Manual PerformR RIB Risk of Fire Notice Always keep the bilges clean and check for fuel regularly NEVER • obstruct portable extinguishers in lockers Caution • obstruct safety controls (shut off valves, switches) • modify craft's systems, especially fuel.
Page 18: Grounding - Risks & Actions
Owner's Manual PerformR RIB Grounding - Risks & Actions After any grounding incident, make a visual inspection internally and Caution consider a haul out and external inspection as soon as practical. Ensure that any grounding is discussed with an experienced marine professional to determine whether a survey of the area and any repair actions are required.
Page 19: Handling Characteristics
Owner's Manual PerformR RIB Handling Characteristics The owner is responsible for ensuring that normal mode of operation is Caution maintained. This means that the speed of the craft needs to be matched to the prevailing sea state and good seamanship shall be displayed.
Page 20 Owner's Manual PerformR RIB Be aware that factors such as altitude, temperature, load, and bottom Caution growth may affect performance. Do not to install engine(s) with power output higher than recommended Caution by the manufacturer as this could cause loss of craft control and result in serious injury or death.
Page 21: Visibility From The Main Steering Position
Owner's Manual PerformR RIB Visibility from the Main Steering Position Notice Operator vision from the helm can be obstructed by high trim angles of the craft and other factors caused by one or more of the following conditions: • Propulsion engine trim angles •...
Page 22: Anchoring, Mooring & Towing
Owner's Manual PerformR RIB Anchoring, Mooring & Towing Notice It is the owners / operators responsibility to ensure that the mooring lines, towing lines, anchor chains, and anchors are adequate for the vessel's intended use. Owners should also consider what action will be necessary when securing a tow line on board.
Page 23: Maintenance
Owner's Manual PerformR RIB MAINTENANCE Regular inspection and maintenance is an essential activity to ensure the boat's longevity and the crew's safety. This section includes a generic table which details typical inspection and maintenance intervals. This is not specific to your craft and some sections will not apply.
Page 24 Owner's Manual PerformR RIB KEY: X - Activity required Y - Activity required by qualified individual INTERVAL Every Before After 25* Or Every 50* Every 6 Every First 20 Or 100 mnth or Hours Hours Hours Annual Item Required Maintenance/Service...
Page 25: Maintenance & Storage Of Tubes
Owner's Manual PerformR RIB Maintenance & Storage of Tubes For details of the tube arrangement, see: 3.2.5 The tubes are made of a material that will deteriorate when stored in Caution strong direct sunlight for prolonged period. Always store the boat inside, away from harmful ultra-violet rays.
Page 26: Winter Storage
Owner's Manual PerformR RIB Winter Storage Your boat and the systems and fittings on board can be damaged if they are not properly prepared for the winter. You should refer to the advice given in the various handbooks supplied with this manual.
Page 27: Black & Grey Water
Owner's Manual PerformR RIB Black & Grey Water The discharge of effluent into navigable waters is forbidden by law in many areas. If such discharge causes a film or sheen upon or a discoloration of the surface of the water or causes a sludge or emulsion Warning beneath the surface of the water, violators may be subject to a penalty.
Page 28: Exhaust System
Owner's Manual PerformR RIB Exhaust system ALWAYS Have the engine & exhaust system inspected & cleaned by a qualified professional at regular intervals. Inspect the exhaust system to ensure connections are secure. Check the free flow of exhaust gasses through the silencer (muffler) to ensure that it is unblocked, every time you set out.
Page 29: Wash / Waves
Owner's Manual PerformR RIB Any of the following could be signs that CO is filling your boat: Staining, sooty smears, or discolouration on surfaces around an appliance or its flue Appliances that are difficult to light, keep lit or burn weakly • Burners with yellow or orange or ‘floppy’...
Page 31 PerformR RIB Declaration of Conformity of Recreational Craft with the Design, Construction and Noise Emission requirements of Directive 2013/53/EU Name of manufacturer: Kiwi Yachting Consultants T/A Southern Pacific Inflatables Address: Victoria Street West Town: Auckland Post Code: 1142 Country: New Zealand...
