Summary of Contents for Wulian WL-ZAVMDPB-C41112-01

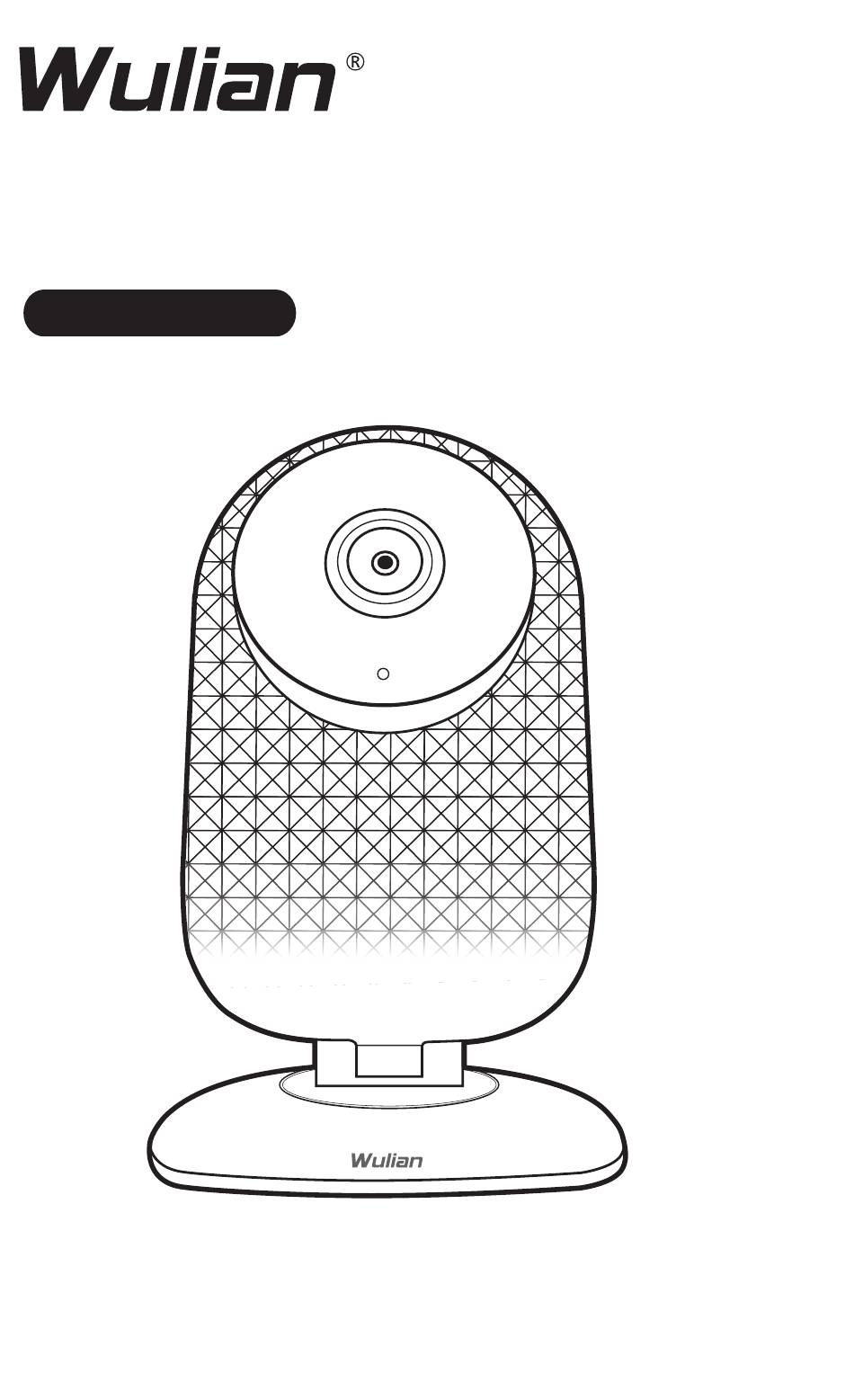

- Page 1 Wireless Cloud Camera (High-definition, 720P) Series User Manual Nanjing IOT Sensor Technology Co., Ltd. Publication No.：2015-0318.V01...
- Page 2 “Wulian”). This product shall be synchronized with relevant APP terminal of smart home. And the supplied accessories shall be used together. Wulian is not responsible for any loss due to improper installation and usage of this product.
-
Page 3: Ⅰ.features
Features Ⅰ.Features ●Supports IEEE 802.15.4 and IEEE 802.11/b/g/n protocol. ●The talkback function makes it easy for you to have video chat with your family even if far away from home. ●With the motion detection technology, you could check the real-time status of your home property anytime and anywhere. - Page 4 Specifications Ⅱ.Specifications Model：WL-ZAVMDPB-C41112-01 WL-ZAVMDPW-C41112-01 WL-ZAVMDPU-C41112-01 IEEE 802.15.4 IEEE 802.11 b/g/n Communication Protocol TCP/IP，ICMP，HTTP，HTTPS，DHCP， Network Protocol DNS，RTP，RTSP，RTCP，NTP，UPnP Wireless Access Wi- Fi Network One (black) Number of ZigBee terminal Three (white) devices to connect Six (blue) IEEE 802.15.4 500m（visible） Communication Distance IEEE 802.11 b/g/n 50m（visible）...
- Page 5 Packing List Ⅲ.Packing List Wulian Camera *1 AC/DC Adapter*1 USB Cable*1 Warranty Specifications Card Specifications*1 Expand Plug+Self-tapping Screw Warranty Card*1 （ST4*30 ）*1...
- Page 6 Installation Ⅳ.Installation Indicator Front Side Set Key SD Card Slot USB Interface Reverse Side...
- Page 7 Option A：Place it on any fixed flat surface. Option B：Ceiling-mounted Step One: Remove the base (attached with magnets). Remove the base Step Two: Mount an expand plug in predesigned position of the ceiling and fix the base with a self-tapping screw. Expand Plug Self-tapping Screw...
- Page 8 Step Three: Attach the camera to the base and installation is completed. Option C：Install it on the wall Step One: Remove the base Step Two: Mount an expand plug in predesigned position of the wall and fix the base with a self-tapping screw. Step Three: Attach the camera to the base and installation is completed.
- Page 9 Users can download the software by scanning the QR Code in the packaging box. Option B Download link：http://www.wulian.cc/service.shtml Tips: For initial use, please read the Software User Manual carefully. Check the Wulian website periodically for software update availability and its relevance.
- Page 10 Networking Ⅵ.Networking Step One: Plug in the power line and start the camera Connect the USB cable to USB interface of this product. After power is on and the Indicator flashes blue, this product could connect with the network. Note: After power is on, if there is voice broadcast of “Camera is online”, then this product is connected to the network.
- Page 11 B.ZigBee Networking 1.Build the ZigBee network for the first time Click Set Key 6 times quickly and Voice broadcast of “Network each click is less than 1s constructed” Add to the network Devices are allowed to add in the ZigBee network Click Set Key 4 times Voice broadcast of “New quickly and each click is less...
- Page 12 Cautions Cautions Ⅶ. ●Before switching on the power, check whether the power cord of the accessories is matched with the adapter to avoid damage to this product due to poor contact. ●To keep the video cable, audio cable, USB cable and power cable from intertwining in installation, place this product in spacious area.
-
Page 13: Ⅷ.trouble Shooting
Trouble Shooting Ⅷ.Trouble Shooting Corrective Action Trouble First, make sure the power supply is Both the Indicators and Setting good. Then check whether the matching Lights are not working. power adapter is used. 1.Check whether this product is placed on fixed flat surface and free from The video taken is not clear. - Page 14 Ordering Ⅸ.Ordering Item No. Model Name Materials & Color WLPN150313002 WL-ZAVMDPB-C41112-01 PC+ABS，Black Wireless Cloud Camera WLPN150306001 WL-ZAVMDPW-C41112-01 PC+ABS，White (High-definition, 720P) WLPN150313001 WL-ZAVMDPU-C41112-01 PC+ABS，Blue...
- Page 15 TỔNG ĐẠI LÝ CHÍNH HÃNG WULIAN TẠI VIỆT NAM CÔNG TY TNHH TM và DV KHCN ĐO LƯỜNG Địa chỉ : Số nhà 12 Khu C - Dự án Mỹ Đı ̀ n h, Quận Nam Từ Liêm, TP Hà Nội, Việt Nam VPGD : Phòng 902, nhà...
