Explore Scientific ST1005H - Wireless Temperature & Humidity Sensors Manual

GENERAL WARNINGS

• Risk of electric shock — This device contains recommended batteries. Do not short-circuit electronic components. Only use the device the device or batteries, or throw them into a as described in the manual; otherwise, you fire. Excessive heat or improper handling run the risk of an electric shock.
• Choking hazard — Children should only use the device under adult supervision. Keep packaging material, like plastic bags and rubber bands, out of the reach of children, as these materials pose a choking hazard.
• Risk of chemical burn - Keep batteries out of the -reach of children! Make sure you insert the batteries correctly. Leaking battery acid can lead to chemical burns. Avoid contact of battery acid with skin, eyes and mucous membranes. In the event of contact, rinse the affected region immediately with a plenty of water and seek medical attention.
• Risk of fire/explosion — Do not expose the device to high temperatures. Use only the recommended batteries. Do not short-circuit the device or batteries, or throw them into a fire. Excessive heat or improper handling could trigger a short-circuit, a fire, or an explosion.
• Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will contact the Service Centre and can send the de vice in to be repaired, if necessary.
• Use only the recommended batteries. Always replace weak or empty batteries with a new, complete set of batteries at full capacity. Do not use batteries from different brands or with different capacities. The batteries should be removed from the unit if it has not been used for a long time.

SCOPE OF DELIVERY

Outdoor sensor, Operating instructions.

BEFORE YOU BEGIN

• We recommend using alkaline batteries. If temper atures regularly fall below 0°C (32°F), we recom mend using lithium batteries.
• Avoid using rechargeable batteries. (Rechargeable batteries cannot maintain correct power requirements.)
• Insert batteries before first use, matching the polarity in the battery compartment. 2x AAA Batteries are required for the Outdoor sensor.

PRODUCT OVERVIEW

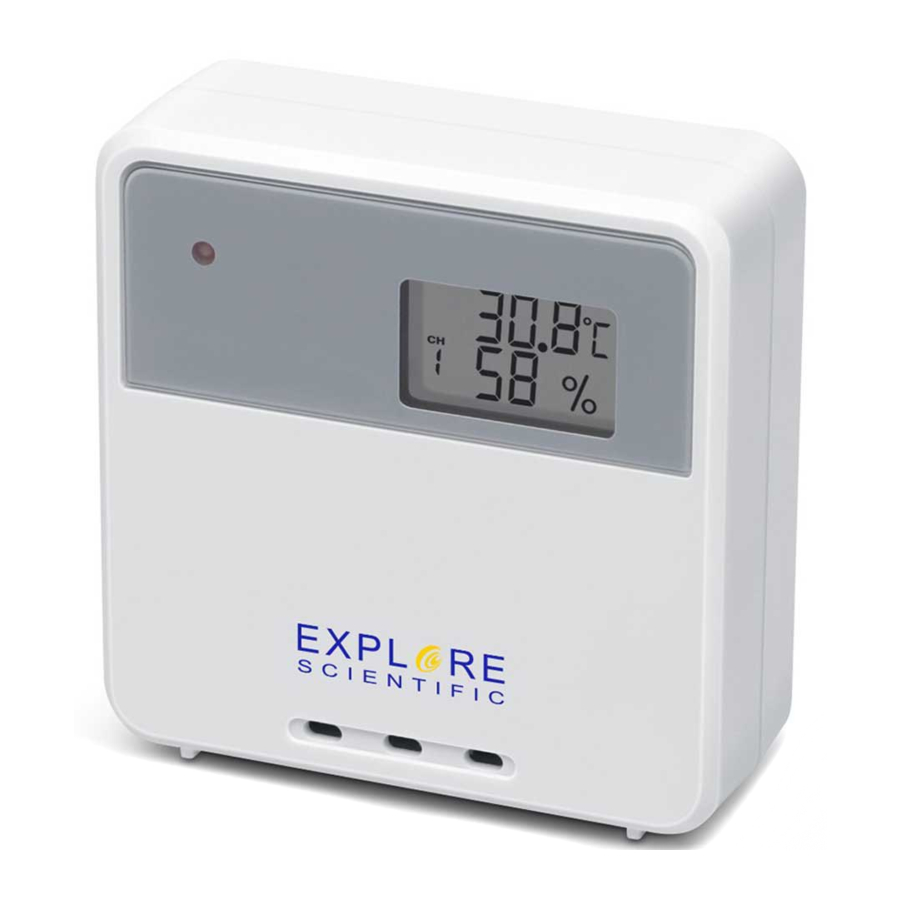

OUTDOOR SENSOR

1. Outdoor temperature & humidity LCD display
2. Battery compartment.
3. TX (Initiate main unit search).
4. Channel switch.
5. C/F switch

GETTING STARTED

The main unit can receive data from up to 3 outdoor sensors.

1. Remove the battery door from the back.
2. Insert 2x AAA (LR03)/1.5V batteries. Please ensure the polarities (+/-) of the batteries match upon installation.
3. Select a channel, then press TX.
4. Reattach the battery door.
5. Place the sensor within 30 m (98 ft) of the main unit using the table stand or wall mount.
6. Initiate a sensor search on the main unit to start receiving temperature data from the sensor.

NOTE: Replace batteries when [ ] displays on the main unit or when the display is dim. Press TX after each battery hange.

Ideal placements for the sensor would be in any location on the exterior of the home at a height of not more than1.5m (5ft) and which can shield it from direct sunlight or wet conditions for an accurate reading.

The transmission range may vary depending on many factors. You may need to experiment with various locations to get the bestresults.

SPECIFICATIONS

Dimensions: 60 x 20 x 60 mm (L x W x H)
Weight: 40 g (Exclude batteries)
Transmission range: 30 m (98 ft)
Temperature range: -20°C to 60°C (-4°F to 140°F)
Humidity range: 20 - 95% RH
Signal frequency: 433 MHz
Maximum transmission power: under 10mW
Power: 2x AAA (LR03) 1.5V batteries

SERVICE AND WARRANTY

EU: www.bresser.de/warranty_terms
USA: www.explorescientific.com/warranty
