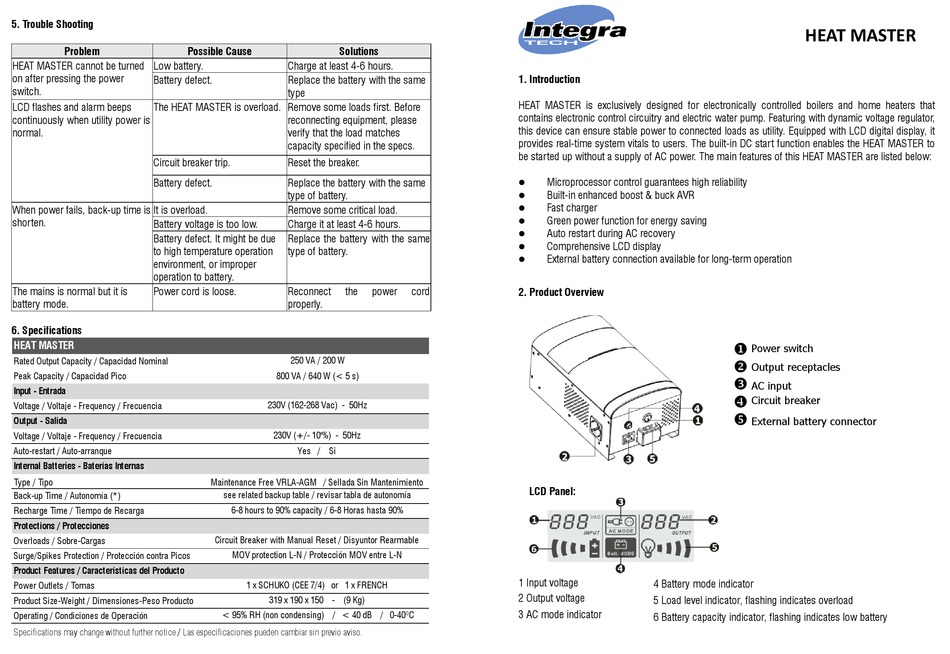

Integra Tech HEAT MASTER Quick Start Manual

5. Trouble Shooting
Problem Possible Cause
HEAT MASTER cannot be turned Low battery.
on after pressing the power
Battery defect.
switch.
LCD flashes and alarm beeps The HEAT MASTER is overload. Remove some loads first. Before
continuously when utility power is
normal.
Circuit breaker trip.
Battery defect.
When power fails, back-up time is It is overload.
shorten.
Battery voltage is too low.
Battery defect. It might be due
to high temperature operation
environment, or improper
operation to battery.
The mains is normal but it is Power cord is loose.
battery mode.
6. Specifications
HEAT MASTER
Rated Output Capacity / Capacidad Nominal
Peak Capacity / Capacidad Pico
Input - Entrada
Voltage / Voltaje - Frequency / Frecuencia
Output - Salida
Voltage / Voltaje - Frequency / Frecuencia
Auto-restart / Auto-arranque
Internal Batteries - Baterías Internas
Type / Tipo
Back-up Time / Autonomía (*)
Recharge Time / Tiempo de Recarga
Protections / Protecciones
Overloads / Sobre-Cargas
Surge/Spikes Protection / Protección contra Picos
Product Features / Características del Producto
Power Outlets / Tomas
Product Size-Weight / Dimensiones-Peso Producto
Operating / Condiciones de Operación
Specifications may change without further notice / Las especificaciones pueden cambiar sin previo aviso.
Solutions
Charge at least 4-6 hours.
Replace the battery with the same
type
reconnecting equipment, please
verify that the load matches
capacity specified in the specs.
Reset the breaker.
Replace the battery with the same
type of battery.
Remove some critical load.
Charge it at least 4-6 hours.
Replace the battery with the same
type of battery.
Reconnect the power
properly.
250 VA / 200 W
800 VA / 640 W (< 5 s)
230V (162-268 Vac) - 50Hz
230V (+/- 10'%) - 50Hz
Yes / Si
Maintenance Free VRLA-AGM / Sellada Sin Mantenimiento
see related backup table / revisar tabla de autonomía
6-8 hours to 90% capacity / 6-8 Horas hasta 90%
Circuit Breaker with Manual Reset / Disyuntor Rearmable
MOV protection L-N / Protección MOV entre L-N
1 x SCHUKO (CEE 7/4) or 1 x FRENCH
319 x 190 x 150 - (9 Kg)
< 95% RH (non condensing) / < 40 dB / 0-40ºC
1. Introduction

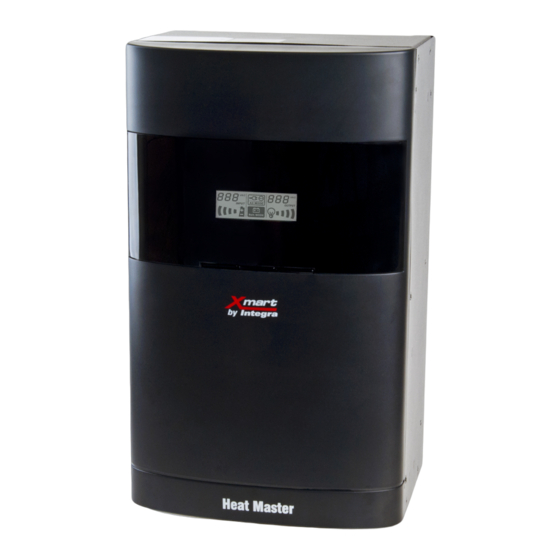

HEAT MASTER is exclusively designed for electronically controlled boilers and home heaters that
contains electronic control circuitry and electric water pump. Featuring with dynamic voltage regulator,
this device can ensure stable power to connected loads as utility. Equipped with LCD digital display, it
provides real-time system vitals to users. The built-in DC start function enables the HEAT MASTER to
be started up without a supply of AC power. The main features of this HEAT MASTER are listed below:
Microprocessor control guarantees high reliability

Built-in enhanced boost & buck AVR

Fast charger

Green power function for energy saving

Auto restart during AC recovery

Comprehensive LCD display

External battery connection available for long-term operation

cord
2. Product Overview
LCD Panel:
1 Input voltage
2 Output voltage
3 AC mode indicator
HEAT MASTER

Power switch

Output receptacles

AC input
 Circuit breaker

External battery connector
4 Battery mode indicator
5 Load level indicator, flashing indicates overload
6 Battery capacity indicator, flashing indicates low battery
