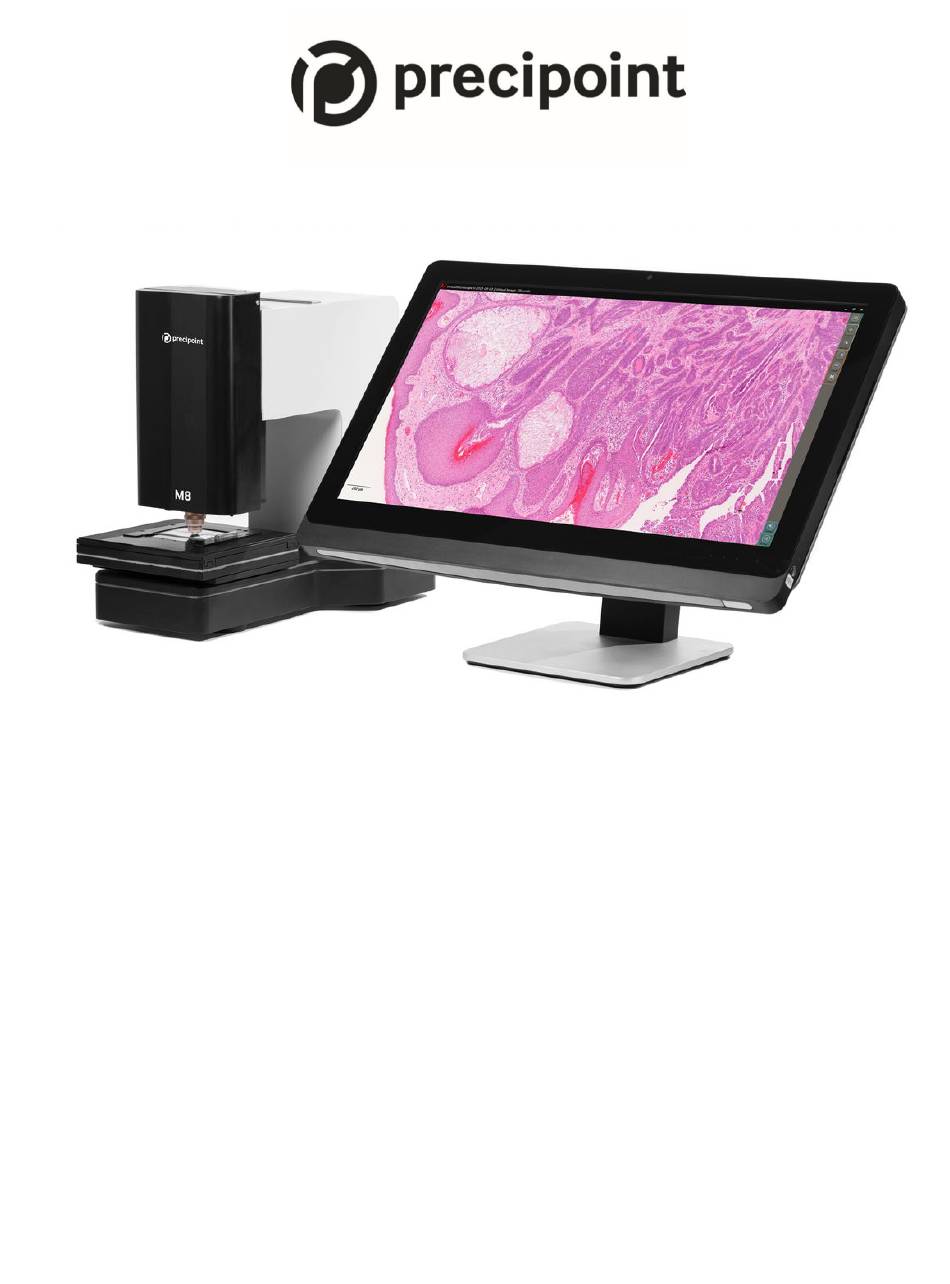

- Page 1 User Manual Microscope & Scanner For research use only. Not for use in diagnostic procedures. User Manual: UM-M8-2021-01 Revision: A Date: December 2021...
- Page 2 Copyright © 2021 PreciPoint GmbH. All Rights Reserved. PRECIPOINT and the PreciPoint logo are registered trademarks of PreciPoint GmbH. M8 is a trademark of PreciPoint GmbH in Germany and optionally in other countries. Other logos, product and/or company names might be trademarks of their respective owners.
-
Page 3: Table Of Contents
Scope of Usage .......................... 5 General Information ......................5 Information about used pictograms ..................7 Intended Use ........................7 Key Features of the M8 ......................9 Scope of Delivery ........................10 Transport, Storage and Disposal ....................13 Transport .......................... 13 Intermediate and Permanent Storage .................. - Page 4 Table of Contents Troubleshooting ........................31 Specifications and Dimensions ....................32 General M8 Microscope and Scanner Specifications .............. 32 12.1 Dimensions ........................33 12.2 Environmental Conditions ....................34 12.3 Operating Data ........................34 12.4 Specification of z-axis ......................35 12.5 Specification of x-y-stage....................
-
Page 5: Scope Of Usage
Complete reading of the user manual is required! The device is a digital microscope and is called M8, in the further manual just called M8. The M8 consists of a microscope and the corresponding control software “MicroPoint” running on the host PC. “ViewPoint”... - Page 6 Chapter 1: Scope of Usage User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 6 of 40...
-
Page 7: Information About Used Pictograms
The user needs basic education and knowledge in microscopy and lab work and have basic knowledge in English. Scope of applications: • Research • Life Sciences • Industry User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 7 of 40... - Page 8 Chapter 1: Scope of Usage The M8 is not intended to be used in applications that require medical certification! The M8 is not for use in diagnostic procedures! Although this device is tested for compliance with the electromagnetic radiation emission limit (EMC), there remains a risk of affecting other devices.
-
Page 9: Key Features Of The M8
It is considered improper use that slides or objects with dimensions other than shown in above specification list are used with the M8. The M8, the objective and/ or the slide may be damaged. Improper use of this device can result in danger for life and health, as well as damages to this device and connected devices. -
Page 10: Scope Of Delivery
Chapter 2: Scope of Delivery 2 Scope of Delivery • 1 PreciPoint M8 microscope (see figure 2.1) o All required connecting cables, such as USB 3.0 cable o 1 magnetic tray holder • Objective(s): Scope of delivery may differ. Various objectives are available upon request (see figure 3.2) - Page 11 Chapter 2: Scope of Delivery Figure 3-1: PreciPoint M8 Figure 3-2: Objective (Example picture) User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 11 of 40...
- Page 12 Chapter 2: Scope of Delivery Figure 3-3: Quick start guide User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 12 of 40...
-
Page 13: Transport, Storage And Disposal
Improper carrying of the device can cause accidents, such as dropping of the device, and consequently damage the device and the slides. Figure 4-1: Lifting and holding the M8 While lifting the device, be careful not to lift the side parts as they are fixed magnetically. -
Page 14: Intermediate And Permanent Storage
Chapter 3: Transport, Storage and Disposal 3.2 Intermediate and Permanent Storage The M8 parts are equipped with advanced mechanical parts and electronic components. To maintain the function and functionality of the device, observe the following instructions for intermediate and permanent storage: The storage location must be indoor and dry. -
Page 15: Disposal
This device falls under the EU Directive 2012 / 19 / EU to reduce the increasing amount of electronic waste. This device may not be disposed in unsorted residual and domestic waste! Check your local disposal regulations for further information. User Manual M8 © PreciPoint GmbH, 2021 December 2021... -
Page 16: Operating Safety
Instructions in this manual must be followed. The M8 is not intended to be used in applications that require medical certification! The M8 is not for use in diagnostic procedures! Operate the device only under conditions specified above. - Page 17 Do not look directly into light sources (LED) emitted by the microscope. This can cause injuries. The flashing light of the LED light source may harm sensitive people (for example epileptic people), though the risk is considered minor. User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 17 of 40...
-
Page 18: Initial Set Up
– see also the product sheet for further information. #5 Foot: This is the stand of the microscope in which there are also the electrical components. User Manual M8 © PreciPoint GmbH, 2021... -
Page 19: Wiring And Connections
5.3 Wiring and Connections 1. Make sure that all cables used are without damage. 2. Ensure that the magnetically fixed side parts of the M8 are in proper position and are not in touch with parts of the z-axis. 3. Connect the computer to the microscope. Put the USB cable into the USB 3.0 cable connection of the microscope and fasten it using the screws in the plug. - Page 20 When the switch is pressed to “I”, the device is turned on. When the switch is pressed at “O”, the device is off. Figure 6-2: Rear side of the M8 User Manual M8 ©...
-
Page 21: Starting The Software
10. Select the right objective. Ensure that the displayed objective in the start screen is exactly the same as the objective mounted into the device. If this is not the case, switch the configuration by pressing Change Objective. Select the appropriate objective (see chapter 8). User Manual M8 © PreciPoint GmbH, 2021 December 2021... - Page 22 12. Place the slide into the designated mount of the x-y-stage. Instructions on how to place slides are provided in chapter 7. When the slides are inserted, click Continue. You may now start using the microscope. User Manual M8 © PreciPoint GmbH, 2021 December 2021...
-
Page 23: Basic Menu Structure Of Micropoint
Chapter 6: Basic Menu Structure of MicroPoint 6 Basic Menu Structure of MicroPoint The M8 comes with three different modes: Live View, Instant Scan and Slide Scan. Each mode features unique benefits and possibilities. In this user manual, we briefly introduce each mode. For detailed information about each mode, please refer to the user manual “MicroPoint”. -
Page 24: Instant Scan Mode
Overall, you may process large areas of a specimen without the need of scanning a whole slide image first. For detailed explanation of the buttons, please see MicroPoint user manual. Figure 7-3: Instant Scan mode User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 24 of 40... -
Page 25: Slide Scan Mode
(best for histological samples with strong colors) that will automatically suggest a scanning area. Once the scan is complete, use the free of charge PreciPoint viewer software ViewPoint to digitally view and process your scanned images. Alternatively, you can also use it in our paid-for PreciCloud browser- based viewer with easy sharing function (contact our Sales team in case this is interesting for you on sales@precipoint.de). -
Page 26: Changing Slides
Repeat this step to insert a second slide. When all slides are mounted, release the handle. The slide mount closes automatically. User Manual M8 © PreciPoint GmbH, 2021 December 2021... - Page 27 3. When all slides are inserted, press Continue in the dialogue window of the software. The device continues operation by generating an overview image of the inserted sample. User Manual M8 © PreciPoint GmbH, 2021 December 2021...
-
Page 28: Changing Objective
Tip: Use one hand to unscrew the objective and hold the other one under the objective to avoid it falling into the glass plate on the stage. Store the objective safely when not in use. User Manual M8 © PreciPoint GmbH, 2021... - Page 29 5. Now select the mounted objective from the displayed list in the change objective menu on the start screen. Log your selection by pressing Select Objective. Figure 9-5: Select objective User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 29 of 40...
-
Page 30: Care Of The M8
• As the microscope uses LED for primary illumination, lamp replacement is rarely required. Please contact the PreciPoint support if you experience problems. • Please check the conditions for storage and operation environment of the device in the data sheet and chapter 3. -
Page 31: Maintenance Of The M8
There are no parts or components that need to be replaced by the user. All part or component replacements in the M8 need to be performed by qualified PreciPoint Technical Support personnel or personnel authorized to conduct technical support by PreciPoint. -
Page 32: Specifications And Dimensions
Restrictions for viewing are possible. Images need to be uploaded to the PreciCloud for viewing. PreciPoint workstation PreciPoint workstation is comprised of a PC and a monitor with minimum requirements to be found below. 12.1 General M8 Microscope and Scanner Specifications... -
Page 33: Dimensions
12.2 Dimensions Figure 12.1: Basic structure of the device User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 33 of 40... -
Page 34: Environmental Conditions
IP 20 Supply frequency 50 / 60 Hz Immunity / Certificates According DIN EN 61326-1 and DIN EN 61326-2-2 Voltage range ± 100 – 240 V 10 % User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 34 of 40... -
Page 35: Specification Of Z-Axis
· L Flatness scanning area ≤ 20 µm Accuracy valid within temperature range ± 1 °C Power supply DC 24 V, 2 A Controller electronics Integrated Mounting Horizontal User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 35 of 40... -
Page 36: Objektiv
CFI Plan Fluor Objective 40x, PN MRH00401 • CFI Plan Fluor Objective 60x, PN MRH00602 Manufacturer Olympus/ Nikon Mounting thread Olympus: RMS Nikon: M25x0.75 Infinity corrected optic User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 36 of 40... -
Page 37: Optical And Imaging Data
Dell XPS 8930 USB 3.0 Type A Interface USB-Interface 12.10 Monitor Minimum System Requirements LED flatscreen with VA or IPS Panel Display type QHD (2560*1440 Pixel) Screen resolution User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 37 of 40... -
Page 38: Specifications Of Intended Microscopy Glass Slides
Thickness 1mm ± 0.05 mm M8 is optimized for scanning glass slides with coverslips affixed with mounting media. The coverslip/label shall not protrude beyond the edge of the glass slide. The entire coverslip and label must adhere to the glass slide. There must be no lifted edges or parts of the coverslip/label. -
Page 39: Compliance Specifications
12.12 Compliance Specifications Feature Details Safety DIN EN 61326-1 (VDE 0843-20-1) DIN EN 61326-2-2 (VDE 0843-20-2-2:2013-08) User Manual M8 © PreciPoint GmbH, 2021 December 2021 Page 39 of 40... -
Page 40: List Of Figures
Figure 2: Objective (Example picture) ............................11 Figure 3: Quick start guide ................................12 Figure 4: Lifting and holding the M8 ............................13 Figure 5: Rear side of the M8 ................................ 20 Figure 6: Desktop icon „MicroPoint“ (operating software)....................21 Figure 7: Start screen of „MicroPoint“...
