NETGEAR ProSafe FVS338 Brochure

• Help is there when you need it!
NETGEAR provides 24x7
technical support* in English,
with selected local language
support during office hours.
Thoroughly Protected
Easy to Use
Flexible & Durable

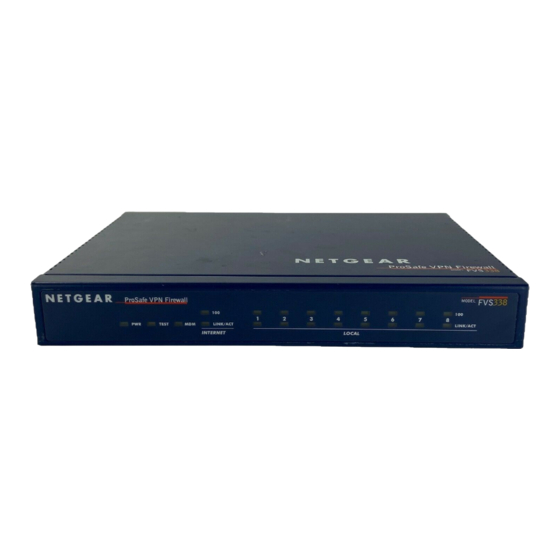

FVS338
ProSafe™ VPN Firewall 50
8-port 10/100 Mbps Switch
50 VPN Tunnels for Encrypted Remote Access
NETGEAR's ProSafe VPN Firewall 50 with Dial Back-up is a SNMP-Manageable, high-performance network
solution that furnishes multidimensional security. Fully equipped and broadband-capable, this Virtual Private
Network (VPN) firewall comes with connection insurance: a built-in serial port for dial-up access. This
practical feature means your business can maintain operation if your broadband Internet connection fails.
It lets you retain an analog modem for emergency backup and also provides a migration path from analog
to broadband, making the transition effortless.
High on security, this true firewall provides Denial of Service (DoS) protection and Intrusion Detection using
Stateful Packet Inspection (SPI), URL keyword filtering, logging, reporting, and real-time alerts. It supports
up to 50 IPSec VPN tunnels simultaneously using Public Key Infrastructure (PKI), reducing your operating
costs and improving the security of your network. With 8 auto-sensing, Auto Uplink™ switched LAN ports
and Network Address Translation (NAT) routing, up to 253 users can access your broadband connection at
the same time. With support for Trend Micro anti-virus policy enforcement functionality, the FVS338 ships
with a 60 day evaluation copy of Trend Micro Client/Server Suite for SMB and Client/Server/Messaging
Suite for SMB for customers without current licenses. Designed with small businesses in mind, the Trend
Micro Suites combine workstation and server virus protection (including Trojans, worms, and hackers, plus
spyware, grayware, and blended threats) into a single solution, empowering small business owners to
deploy and manage an effective antivirus strategy with limited IT investment.
Takes care of all your security needs, with support up to 50 IPSec VPN tunnels simultaneously, SPI Firewall,
Denial of Service (DoS) attack protection, multiple VPN pass-through and anti-spam/anti-virus policy enforcement
support for extra security. SYSLOG and email reporting enable thorough network monitoring. IKE authentication
provides peace of mind against unauthorized VPN network access. The ProSafe VPN Firewall 50 provides optimal
value and defense against network security threats.
Smart Wizard connects to your ISP quickly; the user-friendly Web-based configuration screen and install assistant
™
reduce setup time. The VPN wizard automates VPN configuration and secure remote administration via Secure
Socket Layer (SSL) makes it simple to connect to multiple sites. Support for DHCP (client and server) as well as
PPPoE allows for easy, widespread deployment. This well-built firewall has an integrated 8-port 10/100 Mbps switch
and is compatible with Windows , UNIX ®
Auto Uplink on the LAN ports eliminates the need for crossover cables. Support for DHCP (client and server) as
well as PPPoE allows for easy, widespread deployment.
Make a VPN connection to other VPN devices or connect through NETGEAR's ProSafe VPN Client software,
sold separately in single and five-user licenses VPN01L – supports popular Microsoft
easy to configure, cost-effective and provides broad security support. The rugged metal unit houses advanced, high-
quality electronics, and NETGEAR's tested and proven technology is backed by a 3-year warranty.
Telecommuter with ProSafe VPN
Client Software VPN01L
FVS338 VPN Firewall 50
100 Mbps
10 Mbps
Desktop PCs with
Servers
FA311 network card installed
® , Macintosh ® , and Linux ® O/S. It comes with an Ethernet cable, and
Everybody 's connecting. ™ Everybody 's connecting. ™
NMS100 ProSafe Network Management System NMS100 ProSafe Network Management System
Software CD Instructions: Software CD Instructions:
Version 1.0 This CD should automatically Version 1.0 This CD should automatically
run when inserted into your run when inserted into your
CD-ROM drive. If the CD CD-ROM drive. If the CD
does not start automatically, does not start automatically,
browse to the CD drive and browse to the CD drive and
click on NMSsetup.exe click on NMSsetup.exe
Telecommuter with ProSafe VPN
© 2004 NETGEAR, INC. ALL RIGHTS RESERVED © 2004 NETGEAR, INC. ALL RIGHTS RESERVED
© 2004 NETGEAR, Inc. All rights reserved 240-10041-01 © 2004 NETGEAR, Inc. All rights reserved 240-10041-01
Client Software VPN01L
240-10129-01 240-10129-01
VPN Tunnel
encrypts your data
Internet
Broadband Broadband
modem modem
Everybody 's connecting. ™ Everybody 's connecting. ™
NMS100 ProSafe Network Management System NMS100 ProSafe Network Management System
Software CD Instructions: Software CD Instructions:
Version 1.0 This CD should automatically Version 1.0 This CD should automatically
run when inserted into your run when inserted into your
CD-ROM drive. If the CD CD-ROM drive. If the CD
does not start automatically, does not start automatically,
browse to the CD drive and browse to the CD drive and
click on NMSsetup.exe click on NMSsetup.exe
© 2004 NETGEAR, INC. © 2004 NETGEAR, INC.
ALL RIGHTS RESERVED ALL RIGHTS RESERVED
© 2004 NETGEAR, Inc. All rights reserved 240-10041-01 © 2004 NETGEAR, Inc. 240-10041-01 All rights reserved
240-10129-01 240-10129-01
Telecommuter with ProSafe VPN Telecommuter with ProSafe VPN
Client Software VPN01L Client Software VPN01L
Windows platforms and is
®
FVS338 VPN Firewall 50
Desktop PCs with
FA311 network card installed
