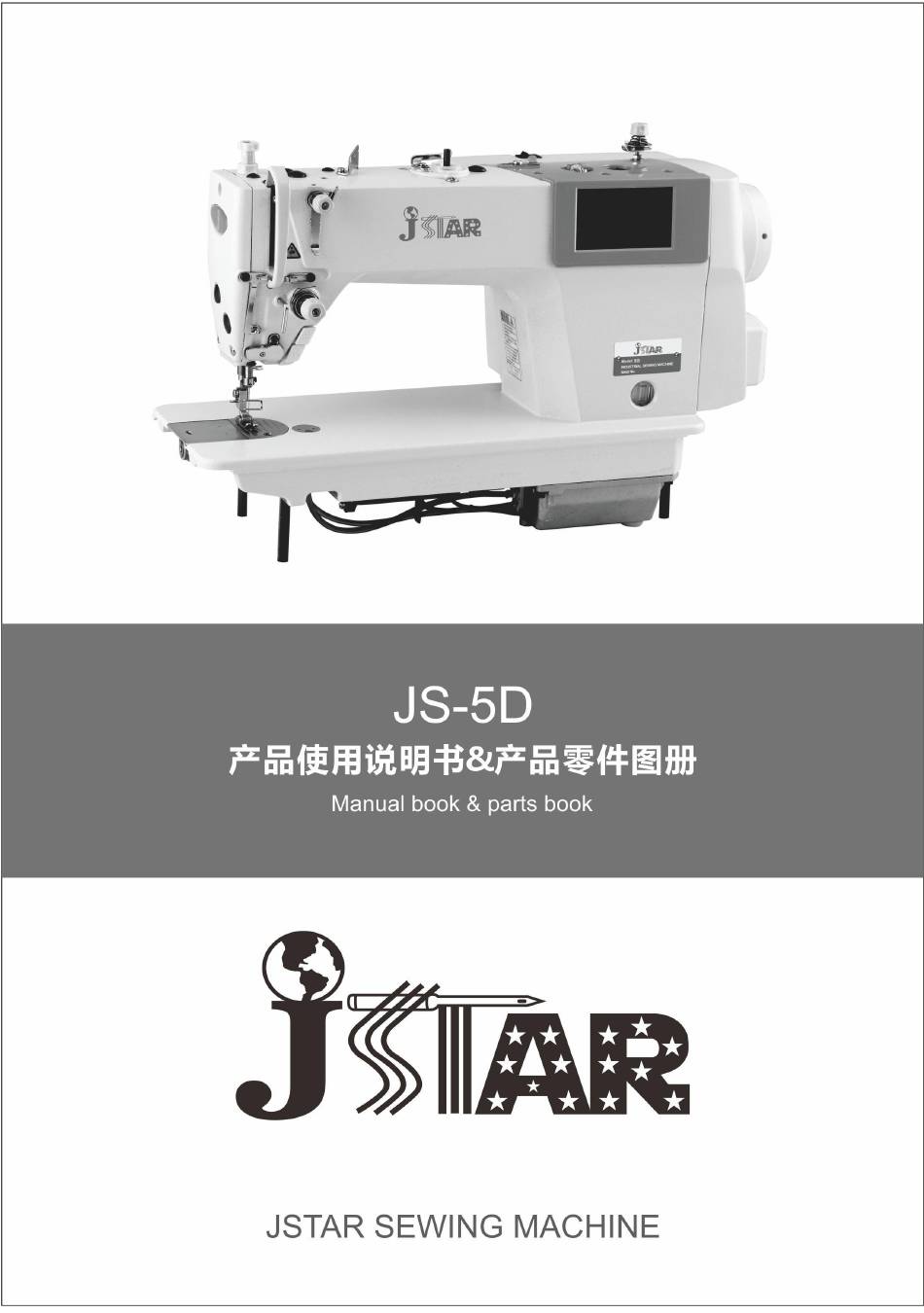

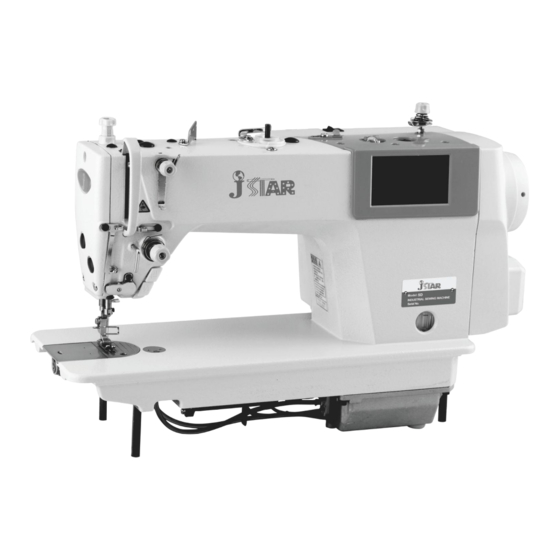

Summary of Contents for JSTAR JS-5D
- Page 2 Safety Instruction Users are required to read the operation manual completely and carefully before installation or operation. This product must be installed or operated by properly trained personnel. All power must be turned off during installation, and remember not to operate with power. All the instruction marked with sign must be observed or executed;...
- Page 3 1. Interface and operation instructions 1.1 Main interface description Name Indicate Clamp function If click, set used or cancelled clamp function. setting Constant stitch In constant stitch sewing mode, if click, switch to stitch numbers and segments display sewing switching interface.
- Page 4 Needle stop If click, switch the needle stop position after sewing (up position / down position). position If click, switch between function OFF, starting tight seam function ON, ending tight Tight seam seam function ON and full function in turn. If long-press, switch to tight seam function setting.
- Page 5 Items Range Default Description "3" stands for the number of the pattern. The figure represents the 3rd pattern. "4" represents the total number of segments of the pattern. If you click, you can select the total number of segments. "3" represents the segment No. of the pattern. 1-10 As shown in the figure, there are 4 patterns in the 3rd pattern.
- Page 6 Items Range Default Description "4" represents the number of constant stitch 1-15 sewing mode. As shown in the figure, it represents 4th constant stitch sewing mode. "4" represents the total number of segments of the constant stitch sewing mode. If clicked, the total number of segments can be selected.
- Page 7 Back-tacking stitch length compensation -100 ～ 1 00 Tacking stitch length compensation in -100 ～ 1 00 P144 high speed Back-tacking stitch length compensation -100 ～ 1 00 P145 in high speed Back-tacking stitch overall compensation ～ Large stitch length back-tacking stitch ～...
- Page 8 2.2.2 Ending tight seam When the value is 0, the ending tight seam 0-12 22201 mode is turned off. Stitches length 22202 0-5.0 100-2000 Speed 22203 CW/CCW Direction 22204 2.3 Back-tacking setting 2301 Start back-tacking speed 200-3200 1800 2302 End back-tacking speed 200-3200 1800 Mode selection for...
- Page 9 time the thread is trimmed; the count screen is displayed after the current value becomes 0) Counter current value The current value is the current actual value; 2402 0-9999 0/9999 /setting value the setting value is a reference value Sewing counter trimming 0-50 2403 time...
- Page 10 2.7 Clamping & tension setting 2701 Tension strength setting 1-80 P103 With or without tension 2702 ON/OFF while foot lifting action 0: OFF Wiping / clamping strength 1: Wiping function 2703 0-11 setting ～ 1 1: Clamping function, the higher the value, the stronger the action.
- Page 11 Stitch length setting of stepping back-tacking Testing mode State information Main shaft motor setting Clamp function without any thrum Layer seam setting Other settings Speed limit setting of main shaft motor start sewing Items Range Default Description Parameter 3.1 Trimming function setting 3101 Trimming speed 100-500...
- Page 12 Electronic knee-control 3309 device the highest presser 0-200 P126 foot lift height The highest of presser foot 3310 0-300 P172 lift highness limit Kneeling device starting 3311 0-1023 P122 AD value Rotation direction of the 3312 P147 presser foot motor 0: OFF Knee-control function 1: Valid when the main shaft motor stops...
- Page 13 Back-tacking stitch 3706 0-200 P243 compensation Back-tacking step motor 3707 1-12 steady current Back-tacking step motor 3708 1-12 maximum current Manual close stitches 3709 0-5.0 P132 distance Correction stitches distance 3710 0-5.0 of manual button A Correction stitches distance 3711 0-5.0 of manual button B Correction stitches distance...
- Page 14 3.8.3 Autorun test mode Testing speed (when the Motor running Periodic time (m) (No Period test speed is 0,the current Running time (0.1s) Stop time (0.1s) direction limit when time is 0) cycle is not executed) 3500 3.9 State information 3901 Version number Motor speed display...
- Page 15 Adjustment of reverse angle 31007 10-50 after trimming 31008 Up position value 0-359 31009 Down position value 0-359 31010 Low (positioning) speed 100-500 Stopping strength as 31011 1-45 half-way Stopping strength after 31012 1-50 trimming In the quick setting interface of the needle position for the upper and lower stops, when Up / down needle position the upper positioning value is saved, the lower...
- Page 16 3.13 Other setting 31301 Type selection 1-50 3.14 Speed limit setting of main shaft motor start sewing First stitch speed limit of 31401 0-1500 It is invalid when the parameter value is 0. P205 start sewing Second stitch speed limit of 31402 0-2000 It is invalid when the parameter value is 0.
- Page 17 3. GND: 3, 7 4. Presser foot sensor: 4, 8(+S5V)
