ESDDI provides 12 month warranty for customer,
please contact support @esddis.com if you have any problem
PS-055 Photography lighting kit Installation Guide
Softbox installation:
1. Tripod installation:
Adjust the bottom knob, unfold the tripod, and tighten the knob to adjust the height
as needed.
2. Softbox window installation:
Open the softbox and place the bottom of the softbox into the top of the tripod, locking the knob
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for ESDDI PS-055
- Page 1 ESDDI provides 12 month warranty for customer, please contact support @esddis.com if you have any problem PS-055 Photography lighting kit Installation Guide Softbox installation: 1. Tripod installation: Adjust the bottom knob, unfold the tripod, and tighten the knob to adjust the height as needed.
- Page 2 Rotate the bulb clockwise into the softbox socket and turn it until the bulb can no longer rotate; Attach a soft cloth to the front of the box light box if required; According to individual needs, adjust the lamp head angle adjustment knob to select the appropriate position of the fixed softbox...
- Page 3 Photography umbrella installation: 1. Tripod installation: Adjust the bottom knob, unfold the tripod, and tighten the knob to adjust the height as needed 2.Install the photography umbrella: A. Install the lamp switch: take out the umbrella switch, insert it the top of the tripod and lock the knob.
- Page 4 B.Install the umbrella and light bulb: Open the umbrella, insert the handle into the socket of the lamp switch hole and tighten it. Screw the bulb into the lamp socket and turn it to the end until the lamp can no longer rotate; C.The angle of the photography umbrella head can be adjusted according to individual needs, and the appropriate position of the photography umbrella can be selected;...
- Page 5 Background system installation： 1. Tripod installation: Adjust the bottom knob, unfold the tripod, and tighten the knob to adjust the height as needed.。 2.Crossbar installation The four crossbars can be assembled from 1.5 to 3 meters according to individual needs. When assembling the crossbar, the two tubes with mounting holes must be placed on the outermost sides of the two sides...
- Page 6 When installing the crossbar, snap the silver metal end into the other tube with two small holes and screw it into the crossbar to fit the hole with the lock pin. 3. Install the background cloth: A. Pass the crossbar out of the hanging sleeve of the background cloth; B.Or after assembling the cross frame and the tripod, use the three clips provided to clip the background cloth to the crossbar.；...

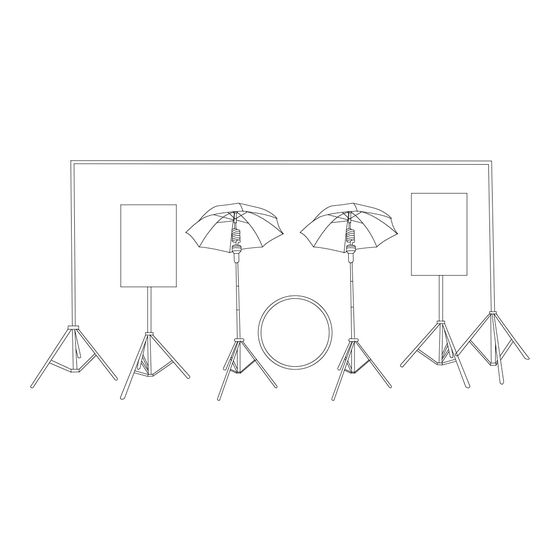

- Page 7 4.Combination Insert the hole on the outside of the crossbar into the tripod, install the screw pad and screw, and tighten it Reflector installation: Remove the reflector from the bag and shake it to open； Complete map （without background ）...
