JONOVA HRT58 Operation Manual

72" skid steer hydraulic rotary tiller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
•
Please read the product manual completely before assembly
•
Check against the parts list to make sure all parts are received
•
Wear proper safety goggles or other protective gears while in assembly
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRT58 and is the answer not in the manual?

Questions and answers

Summary of Contents for JONOVA HRT58

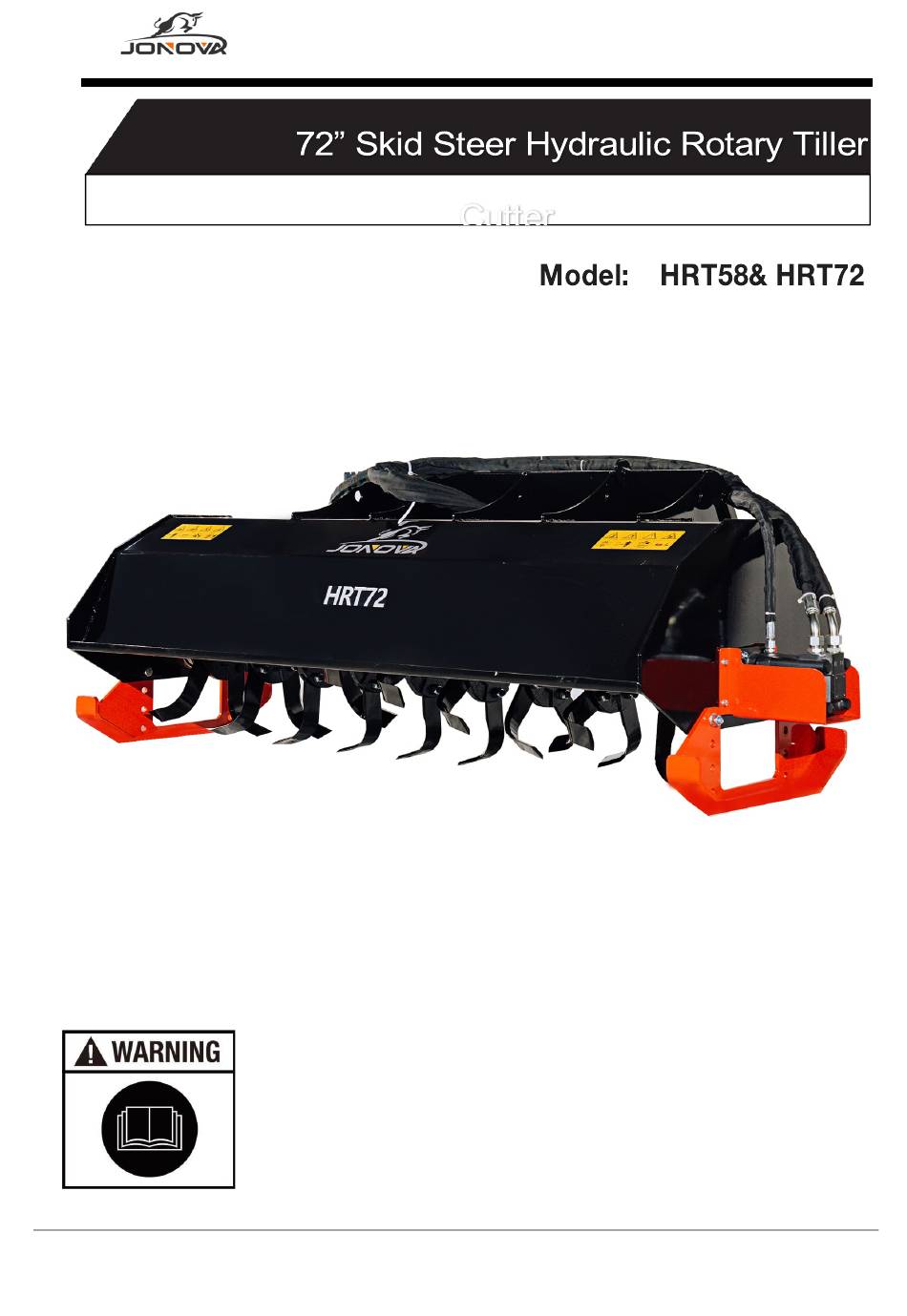

  • Page 1 OPERATION MANUAL • Please read the product manual completely before assembly • Check against the parts list to make sure all parts are received • Wear proper safety goggles or other protective gears while in assembly...

  • Page 2: Your Safety

    Your Safety YOU are responsible for the SAFE operation and maintenance of your JONOVA Skid Steer Brush Cutter. YOU must ensure that you and anyone else who is going to use, maintain or work around the Skid Steer Brush Cutter be familiar with the using and maintenance procedures and related SAFETY information contained in this manual.

  • Page 3: General Safety

    General Safety 4. 1. Read and understand the Operator’s Manual and all safety signs before using, maintaining, adjusting or cleaning the Skid Steer Hydraulic Rotary Tiller.
 2 . Have a first-aid kit available for use should the need arise and know how to use it.
 3 . Have a fire extinguisher available for use should the need arise and know how to use it.
...

  • Page 4: Equipment Safety Guidelines

    Equipment Safety Guidelines Safety of the operator and bystanders is one of the main concerns in designing and developing equipment. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment. You, the operator, can avoid many accidents by observing the following precautions in this section.

  • Page 5: Safety Training

    Safety Training Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe equipment can be wiped out by a single careless act of an operator or bystander.
 In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of this equipment.

  • Page 6: Safety Signs

    Safety Signs Always keep safety signs clean and legible.
 Replace safety signs that are missing or have become illegible.
 Replaced parts that displayed a safety sign should also display the current sign.
 Safety signs have a part number in the lower righthand corner. Use this part number when ordering
...

  • Page 7: Maintenance Safety

    Maintenance Safety 1. Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. 2. Follow good shop practices. - Keep service area clean and dry. - Be sure electrical outlets and tools are properly grounded. - Use adequate light for the job at hand. 3.

  • Page 8: Operating Safety

    Operating Safety 11. Please remember it is IMPORTANT that you read and heed the safety signs on the Skid Steer Hydraulic Rotary Tiller. Clean or replace all safety signs if they cannot be clearly read and understood. They are there for your safety, as well as the safety of others. The safe use of this machine is strictly up to you, the operator.

  • Page 9: Hydraulic Safety

    Hydraulic Safety 1. Make sure that all the components in the hydraulic system are kept in good condition and are clean. 2. Before applying pressure to the system, make sure all components are tight, and that lines, hoses and couplings are not damaged. 3.

  • Page 10: To The New Operator Or Owner

    To the New Operator or Owner Follow all safety instructions exactly. Safety is everyone's business. By following recommended procedures, a safe working environment is provided for the operator, bystanders, and the area around the worksite. Untrained operators are not qualified to operate the machine. Many features incorporated into this machine are the result of suggestions made by customers like you.
  • Page 11 HYDRAULIC CONNECTIONS & MOUNTING The machine is shipped from the factory in a basic, universal configuration that allows it to be mounted to any model skid steer. However, the skid steer must be equipped with a remote hydraulic outlet on the front of the cab frame.
...

  • Page 12: Checking Bolt Torque

    Bolt Torque CHECKING BOLT TORQUE The tables shown below give correct torque values for various bolts and cap screws. Tighten all bolts to the torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. Replace hardware with the same strength bolt. Torque figures indicated above are valid for non-greased or non-oiled threads and heads unless otherwise specified.
  • Page 13 Skid Steer Hydraulic Rotary Tiller Assembly...
  • Page 14 Skid Steer Hydraulic Rotary Tiller Assembly Part No. Part Description HRT72.1 ROTOR ASSEMBLY HRT72.1.1 ROTOR WELDMENT HRT72.1.2 TINE, BI-DIRECTIONAL TILLER GB/T 889.2 LOCK NUT M16*1.5 GB/T 97.1 WASHER 16 GB/T 5786 BOLT HEX M16*1.5*50 HRT72.2 FRAME WELDMENT HRT72.3 AXLE HEAD(LEFT) HRT72.4 SNAP RING(LEFT) HRT72.5...
