Summary of Contents for RHINOMOTIVE PRO Series

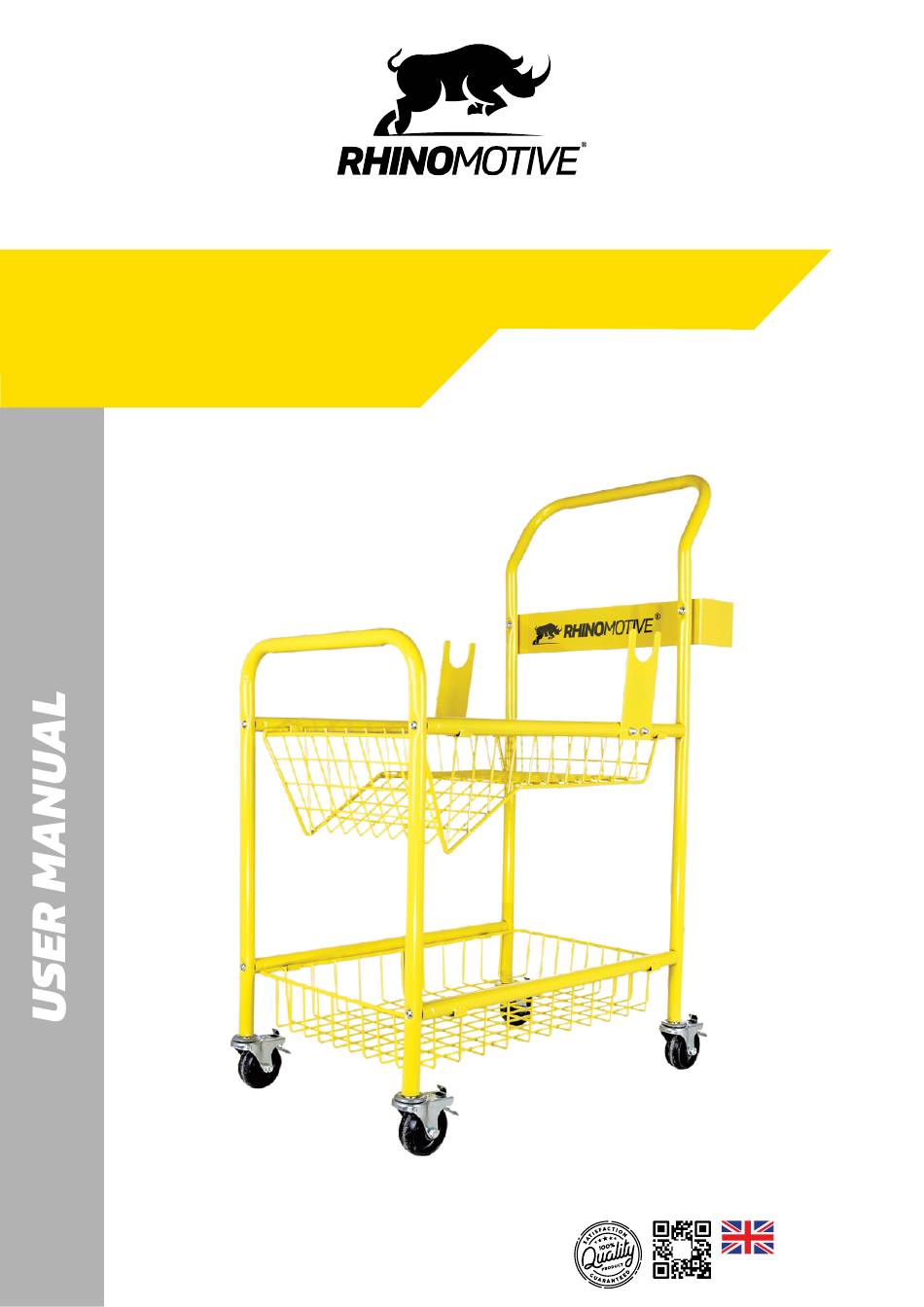

- Page 1 DETAILING TROLLEY PN: R1149 RHINOMOTIVE LTD - UK 71-75 Shelton Street, London, United Kingdom Scan QR Code www.rhinomotive.com...
- Page 2 Components are packed in plastic bags that could present a suffocation hazard. Dispose of plastic bags as soon as unpacked. 1. APLICATION/USE Used in body shops, detailing centres, PDI, etc. to store and carry RHINOMOTIVE chemicals/polishes and for safe hanging of polishing machines. 2. TECHNICAL SPECIFICATIONS •...
- Page 3 9 10 4. ASSEMBLY INSTRUCTIONS 4.1. Insert the castor into the U Shape Bar www.rhinomotive.com...
- Page 4 4.3. Use Bolt (1) to attach the Handlebar onto the Horizontal Bar (9) with hooks on the lower side 4.4. Use Bolt (1) to attach the Handlebar onto the Horizontal Bar (9) with hooks on the lower side 4.5. Use Bolt (1) to attach the Handlebar onto the Horizontal Bar (9) with hooks on the lower side www.rhinomotive.com...
- Page 5 4.6. Use Parts (2) (3) (4) to install the holder for polishing machines 4.7. Install the Bottom Net Basket (13) 4.8. Install the Upper Net Basket (14) 4.9. Use Bolt (1) to install the Storage Box SERIES RHINOMOTIVE LTD - UK 71-75 Shelton Street, London, United Kingdom www.rhinomotive.com...
