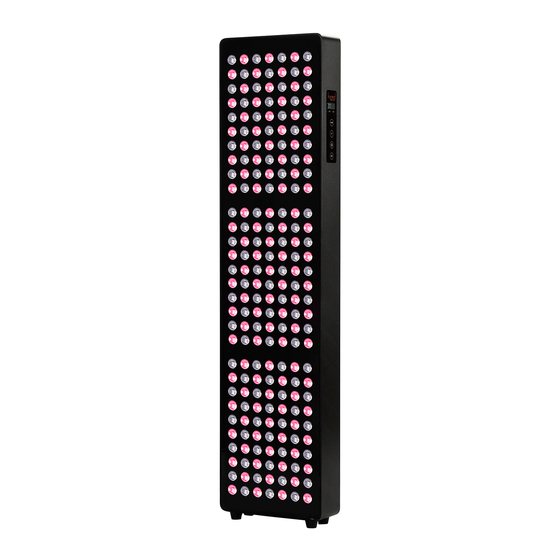

Summary of Contents for Infrared RED LIGHT BP70
- Page 1 Red Light Therapy Panel User Manual https://infraredredlight.com...
-
Page 2: Technical Specification
Technical Specification Product Model BP70 BP210 BP300 BP560 BP840 Dimensions 322*216*71mm 880*216*71mm 880*276*71mm 1159*415*71mm 1717*415*71mm Power Consumption 273W 390W 728W 1092W LEDs 70pcs 210pcs 300pcs 560pcs 840pcs Lens Beam Angle 30 Degree Cooling Fans 1pcs 2pcs 2pcs 4pcs 8pcs Weight 4.2kg... -
Page 3: Controller Operation
Irradiance Product Model BP70 BP300 BP560 BP840 BP210 6 Inches 136mW/cm² 156mW/cm² 146mW/cm² 156mW/cm² 146mW/cm² 15.8*12in 37.8*14.2in 48.78*19.84in 70.7*19.8in 37.8*12in 12 Inches 125mW/cm² 140mW/cm² 129mW/cm² 140mW/cm² 129mW/cm² 19*15in 41*17.3in 52*22.84in 74*22.84in 41*15in 18 Inches 110mW/cm² 132mW/cm² 116mW/cm² 132mW/cm² 116mW/cm² 22.1*18.2in 44.1*20.5in... - Page 4 Light Mode Selection Click the light button, 3 light modes can be switched: Red + NIR (1st) -> Red (2nd) -> NIR (3rd). 4th press for off. 5th press for another light mode selection cycle, Red + NIR (5th) -> Red (6th) -> NIR (7th).
-
Page 5: Remote Controller
The available battery for the remote controller is 23A 12V. 23A 12V Cascading Operation Support multiple panels of BP70/BP210/BP300 and 2 panels of BP560 to connect and operate synchronously. 1. Keep one panel plugged in. 2. Connect more panels with the signal cable. The suggested maximum cascading quantity is 6 for BP70/BP210/BP300, 2 for BP560. - Page 6 P - 05 https://infraredredlight.com...
- Page 7 Lights Therapy Effects Red Light at 630nm 660nm Red lights act on the "power plant" in your body’s cells called mitochondria. They can absorb light wavelengths and are stimulated to work with other cells more efficiently, then improve skin appearance, enhance collagen production, smooth tiny wrinkles and fine lines, reduce acne and scars, boost fresh cell growth and enhance skin rejuvenation.
- Page 8 Door/Wall Mounting It’s suitable for BP210 and BP300. You can view the video on our website. Step1 Attach the fittings to the top back of your device with four screws. Step2 Hang the hook on your door or wall. Step3 Connect the length-adjustable rope to the hook and your device.
- Page 9 Step4 Raise your device to the proper height by carefully pulling down the rope to avoid large vibrations. Step5 Lower your device to the appropriate height by discreetly pushing up the lever of the pulley. Step6 Plug the power cord into your device, then connect the other end to an outlet.
- Page 10 Use Suggestion Session：10 – 20 minutes for the same area in one session. It is better to start with a shorter session if you never use light therapy. Frequency: 1 – 2 times a day for the same area treatment. Keep minimum 6 hours interval for the 2nd treatment for the same area.
-
Page 11: Maintenance
Do not spray liquid directly. 3-Year Warranty All panels of Infrared Red Light (IRL) purchased new from IRL directly or an authorized reseller are warranted for a period of three years from the date of shipment from the factory. - Page 12 Thank You!
