Summary of Contents for xStation PU-18

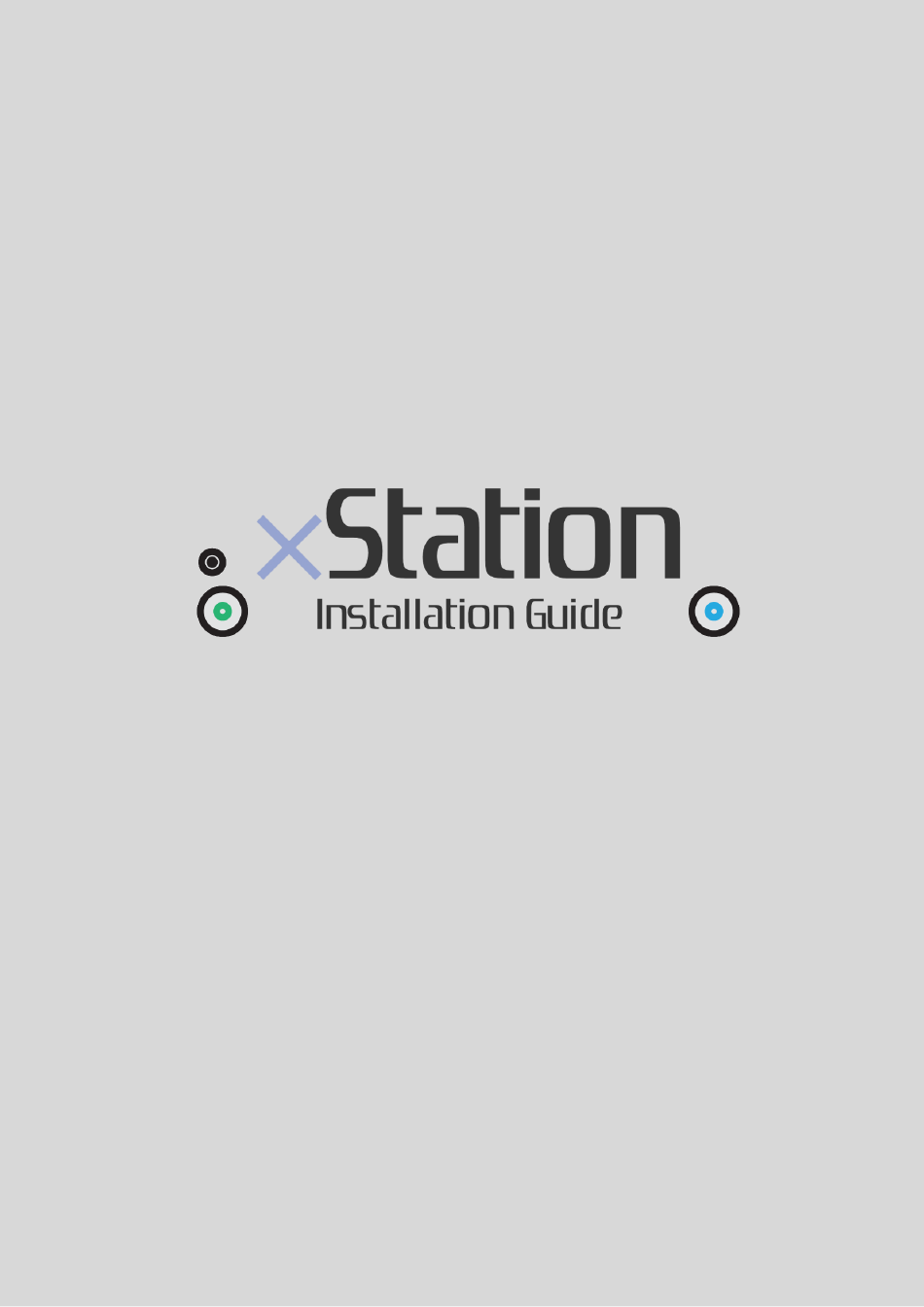

- Page 1 PU-18...
- Page 2 ODE installation guide for the PU-18 Playstation 1 motherboard PU-18 Mainboards can be found in: All SCPH-5001 All SCPH-5501 – 5503 All SCPH-5552 (very rarely) SCPH-7001 – 7003 1. You have to disassemble the Playstation 1 completely to get to the mainboard.
- Page 3 3. From IC701 (CXD2545Q) you have to lift the following pins: 45, 46, 47, 56, 74, 77,78 and 80. Please make sure that only the shown pins are lifted. 4. Please be careful not to damage the mainboard when lifting pins. Use a needle or x-acto knife and a fine soldering tip to simply touch the pin and apply some heat, then gently lift it from underneath using the needle or blade.
- Page 4 5. Please make sure that you have lifted the pins completely. They should have no contact with the motherboard 6. We are now finished with the top of the mainboard; turn it bottom side up. Now you have to solder the Quick Solder Board (QSB). Focus on the area marked below.
- Page 5 7. The positioning is kept very simple and can already be seen at the solder pads of the QSB. Simply place the QSB on the mainboard as shown, the yellow markings make it clear again. 8. Before soldering, the via pads on the left and on the right (yellow circle marked in the picture above) need to be lightly scratched.
- Page 6 After preparing it should look like this: - on the left - on the right: 9. Now you have to desolder/remove one small resistor, which is located next to the OSC V67.737 KDS813 in the purple box. Dev: Production and Sales Guide by: rama www.castlemaniagames.com...
- Page 7 10. The small resistor (marked in violet) has to be removed. 11. Finally, you have to connect the APLL pad from the QSB to the marked location, above the desoldered resistor. (See enlargement) Dev: Production and Sales Guide by: rama www.castlemaniagames.com seewood...
- Page 8 12. The difficult part is now finished, but the lower part of the PS1 case still needs to be prepared. Cut off the small plastic pin marked below in red. This is necessary to prevent the flex cable from breaking during installation. 13.
- Page 9 14. To ensure that the cable sits correctly route it through the slot on the top shield. 15. Prepare the PCB and push all 3 spacers into the xStation board. If you look at it from above they can be found in:...
- Page 10 16. Now grab the other side from the flex cable and carefully connect it to the cable holder on the xStation. When it is done you have to fold the flexcable a bit. Folding it like this is best: 17. Mount the xStation on the posts of the original Disc Drive.
- Page 11 When everything is ready, you have to reassemble the Playstation 1 in reverse order. A freshly installed xStation: recommended adaptation of PCB and SD card adapter 1. You can use the rubber spacer to clamp 2. Use a 3D printed mount to the xStation in place.
