Summary of Contents for Bosch WTW85439GR

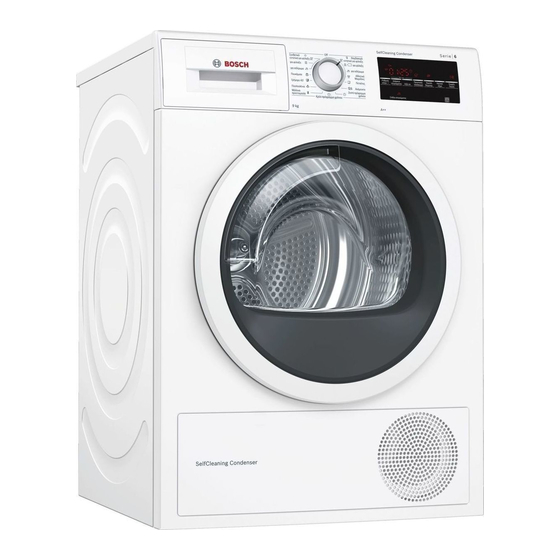

- Page 1 Tumble dryer WTW85439GR en Installation and operating instructions...
- Page 2 Caution! To meet the high quality demands required by Bosch, every tumble dryer This signal word indicates a possibly that leaves our factory is carefully dangerous situation. Not heeding the checked to ensure that it functions caution can cause property and/or correctly and is in perfect condition.
-
Page 3: Table Of Contents
Contents e n I n s t a l l a t i o n a n d o p e r a t i n g i n s t r u c t i o n s Programme sequence ... .27 Intended use. -
Page 4: Intended Use
Intended use Intended use This appliance is intended for private ■ I n t e n d e d u s e domestic use only. Do not install or operate this ■ appliance anywhere that is liable to experience frost and/or outdoor conditions. -
Page 5: Safety Instructions
Safety instructions Do not allow children to Safety instructions ■ clean or maintain this appliance unsupervised. The following safety information Keep children under 3 years S a f e t y i n s t r u c t i o n s and warnings are provided to ■... -
Page 6: Installation
Safety instructions Warning Installation Risk of suffocation! Warning If allowed to play with the Risk of electric shock/fire/ packaging/plastic film or material damage/damage to packing components, children the appliance! may become caught in these or If the appliance is not installed pull them over their heads and properly, this may lead to a suffocate. - Page 7 Safety instructions Incorrectly placing (stacking) Warning ■ this appliance on top of a Risk of electric shock/fire/ washing machine may result material damage/damage to in injury, material damage the appliance! and/or damage to the If the appliance's mains cable is appliance.
-
Page 8: Operation
Safety instructions Do not use the appliance if Warning ■ industrial chemicals have Risk of injury! been used to clean the The appliance is very heavy. ■ laundry. Lifting it may result in injury. Do not lift the appliance on Warning your own. - Page 9 Safety instructions Warning Warning Risk of fire/material damage/ Risk of poisoning! damage to the appliance! Poisonous fumes may be given If a program is terminated off by cleaning agents that before the drying cycle has contain solvents, e.g. cleaning finished, this prevents the solvent.
- Page 10 Safety instructions If you pour the wrong Caution! ■ quantity of detergent or Material damage/damage to cleaning agent into the the appliance appliance, this may result in If the amount of laundry in ■ material damage or damage the appliance exceeds its to the appliance.
-
Page 11: Cleaning/Maintenance
Safety instructions Cleaning/Maintenance Warning Risk of poisoning! Warning Poisonous fumes may be given Risk of death! off by cleaning agents that The appliance is powered by contain solvents, e.g. cleaning electricity. There is a risk of solvent. electric shock if you come into Do not use cleaning agents that contact with live components. - Page 12 Safety instructions Caution! Material damage/damage to the appliance Cleaning agents and agents for pretreating laundry (e.g. stain removers, prewash sprays, etc.) may cause damage if they come into contact with the surfaces of the appliance. Therefore please note: Do not allow these agents to ■...
-
Page 13: Environmental Protection
Environmental protection Energy-saving tips Environmental protection Spin the laundry before drying. ■ The drier the laundry, the shorter the drying time will be, thus Packaging/old appliance consuming less energy. E n v i r o n m e n t a l p r o t e c t i o n Load the dryer with the maximum Dispose of packaging in an ■... -
Page 14: Installation And Connection
Installation and connection You could cut your hands on the ■ Installation and sharp edges of the dryer. Do not hold the dryer by the sharp edges. connection Protruding parts on the dryer may ■ break off when it is lifted or pushed. Scope of delivery Do not move the dryer by holding on I n s t a l l a t i o n a n d c o n n e c t i o n... -
Page 15: Optional Accessories
Installation and connection Optional accessories Transport and frost protection Order optional accessories from the Empty the condensate container. after-sales service: Select any programme using the programme selector. Washer-dryer stack connection set: Press the Start button. ■ To save space, the dryer can be Wait for 5 minutes. -
Page 16: ΠDraining The Condensation
Draining the condensation water Disconnect the hose from the ΠDraining the connecting piece and put it in the "parked" position. condensation water Condensation will form in the appliance D r a i n i n g t h e c o n d e n s a t i o n w a t e r as it dries the laundry. - Page 17 Draining the condensation water Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C). Caution! Accumulated water can be drawn back into the dryer and may cause material damage. Check that the water drains away from the wash basin quickly.
- Page 18 Draining the condensation water Pull out the condensation container Slide in the condensation container fully. until it clicks into place. Turn the condensation container The condensation is now discharged via 180° onto its underside and remove the drain hose into the waste-water the stopper that is fitted.Turn the system or into a wash basin condensation container back over...
-
Page 19: The Main Points In Brief
The main points in brief The main points in brief T h e m a i n p o i n t s i n b r i e f Load the laundry and close Switch on the dryer. Select a programme and, the door. -
Page 20: Getting To Know Your Appliance
Getting to know your appliance Getting to know your appliance Dryer G e t t i n g t o k n o w y o u r a p p l i a n c e ( Condensate container 0 Control and display panel 8 Drum interior light (depending on the model) @ Dryer door... -
Page 21: Control Panel
Getting to know your appliance Control panel ( Use the programme selector to switch the dryer on and off and to select the programme. 0 Programmes ~ Page 24. 8 Start button for starting or interrupting the programme ~ Page 26. @ Buttons ~ Page 26. -
Page 22: Display Panel
Getting to know your appliance Display panel Display panel Buttons in the display panel Anti-Crease selected. ” Fine adjustment of the dryness – level. ( Select the degree of dryness. Timed programme selected. 0 Select the drying time. "Ready in" time selected. 8 Select the Ready in time. -
Page 23: Laundry
Laundry – Clean the moisture sensor Laundry regularly ~ Page 33. P reparing the laundry Sorting washing according to: L a u n d r y Warning c Suitable for tumble drying Risk of explosion/fire! a Dry at normal temperature Remove any cigarette lighters and ` Dry at low temperature matches from pockets. -
Page 24: Programmes And Buttons
Programmes and buttons Programmes and buttons Programmes P r o g r a m m e s a n d b u t t o n s Programme and fabrics Maximum load and programme settings/info Name of the programme The maximum load is based on the dry weight of the fabrics Which fabrics is the programme suitable for? Possible programme settings... - Page 25 Programmes and buttons Ζεστό πρόγραμμα χρόνου (Time programme warm) 5 3 kg All types of fabric; time programme. You can adjust the programme length using the button for Suitable for pre-dried or slightly damp laundry and for drying off the drying time. multi-layered, thick laundry.
-
Page 26: Buttons
Programmes and buttons Buttons Buttons Explanations and notes Not all buttons and their functions can be selected in all programmes. Note: Ρύθμιση στέγν. + If the laundry is too damp after drying, you can finely adjust the dryness level e.g. Cupboard Dry. -
Page 27: Operating The Appliance
Operating the appliance Default programme settings Note: Operating are standard settings that are already defined when a programme the appliance is selected. After selecting a programme, you can see the default Loading laundry and programme settings in the display O p e r a t i n g t h e a p p l i a n c e switching on the dryer panel. -
Page 28: Changing The Programme Or Adding Laundry
Operating the appliance Changing the programme or Removing laundry and adding laundry switching off the dryer You can remove or add laundry and Remove the laundry. change or alter the programme at any Turn the programme selector to the time during drying. "off"... -
Page 29: Clean The Fluff Filter
Operating the appliance Clean the fluff filter Open both filters and remove all the fluff. During drying, fluff and hair from Note: the laundry is trapped by the fluff filter. If the fluff filter is blocked or dirty, this reduces the flow of air, which prevents the dryer from achieving its maximum performance. -
Page 30: Emptying The Condensate Container
Operating the appliance Emptying the condensate Push in the condensate container until you feel it lock back into place container in the dryer. Condensation will form in the appliance as it dries the laundry. If there is no drain hose connected to the appliance, the condensation water from the appliance will run into the condensation container. -
Page 31: Signal Setting
Signal setting The volume of the audible signal at Signal setting the end of the programme is shown in the display. You can change the following settings: S i g n a l s e t t i n g The spin speed that is used for ■... -
Page 32: Noises
Noises The automatic cleaning of the dryer > Noises causes a clicking sound. During drying, particularly in the N ote: N o i s e s initial phase, operation of the appliance results in noise from the compressor and pump. This is perfectly normal and does not impair proper functioning of the appliance. -
Page 33: Cleaning
Cleaning Cleaning the moisture sensor Cleaning The dryer is equipped with a Note: C leaning the dryer and the stainless-steel moisture sensor. The C l e a n i n g control panel moisture sensor measures how damp the laundry is. After long periods of usage the moisture Warning sensor may become covered by a fine... -
Page 34: Cleaning The Filter In The Condensate Container
Cleaning Cleaning the filter in the condensate container The filter in the condensate Note: container cleans the condensation water that is used during the dryer's automatic cleaning cycle. Pull out the condensate container horizontally. Pour out the condensation water. Remove the filter. Clean the filter under warm, running water or in the dishwasher. -
Page 35: Faults And What To Do About Them
Faults and what to do about them Faults and what to do about them F a u l t s a n d w h a t t o d o a b o u t t h e m Faults Cause/remedy ð... - Page 36 Faults and what to do about them Faults Cause/remedy Drying time too long? The fluff filter may be dirty and cause a longer drying time. Clean the fluff fil- ■ ter. If the air inlet on the dryer is blocked or not freely accessible, this may ■...
-
Page 37: After-Sales Service
After-sales service After-sales service After-sales service A f t e r - s a l e s s e r v i c e If you cannot rectify the fault yourself (faults, what to do?), please contact our after-sales service. We will always find an appropriate solution to avoid unnecessary visits by engineers. -
Page 38: Consumption Values
Consumption values Consumption values Consumption values table C o n s u m p t i o n v a l u e s Spin speed which is Programme used for spinning Duration** Energy consumption** the laundry Cottons 9 kg 4.5 kg 9 kg 4.5 kg... -
Page 39: Technical Data
Technical data Technical data Dimensions: T e c h n i c a l d a t a 85 x 60 x 60 cm Height x width x depth Weight: Approx. 56 kg Maximum load: 9 kg Condensate container: 4.6 l Connected voltage: 220 - 240 V Connected load:... - Page 40 0344 892 8979 (Calls charged at local or mobile rate.) 01450 2655 (0.03 € per minute at peak. Off peak 0.0088 € per minute.) You can find the contact information for all countries in the attached after-sales service directory. Robert Bosch Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY *9001270500*...
