Jumper JPD-500F - Pulse Oximeter Manual

Introduction

This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:

1. this device may not cause harmful interference.
2. this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resid ential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Precautions

• Do not attempt to maintain the Oximeter unless you are professional engineers. Only professionals with maintenance qualification are allowed to perform interior maintenance as necessary.
• Periodically change the contact position between the Oximeter probe and the finger for a measurement that lasts a long time. Adjust the position of the probe before the measurement lasts two hours, and check the integrity of skin, the blood circulation condition of the finger as well as the position of the finger.
• This product is not applicable to the examination of newborn babies.
• Seek for medical care in time if the measured value goes beyond the normal range while you are sure that the instrument does not malfunction.
• Do not directly expose your eyes to light-emitting components of the Oximeter, as that could cause harm to your eyes.
• For details about clinical limitations and contraindications, please carefully consult relevant medical literatures.

The following factors may cause disturbance to or affect the accuracy of examination:

• This product is used in an environment involving high-frequency devices, such as high-frequency electric knives and CT apparatuses.
• The probe of the Oximeter is placed on the same body part or limb as with blood pressure cuff arterial duct or intravenous injection.
• The user suffers from hypotension, severe vascular atrophy, severe anemia, or low oxygen.
• The user is in sudden cardiac arrest or shock state.
• The finger with nail polish or a fake fingernail may cause wrong readings of pulse oxygen saturation.

Warnings

Do not use the Oximeter in an environment with any inflammable gases, inflammable anesthetic, or other inflammable substances.

Do not attempt to charge any common dry battery, as that could cause leakage, fire disaster, or even explosion. Dispose of exhausted batteries in accordance with environment protection regulations.

Do not use the Oximeter in an MRI or CT environment.

Do not operate the Oximeter when it is damp with overflow or water vapor condensation. Avoid moving the Oximeter from an excessively-cold environment to a high-temperature moist environment.

Product Accessories

1. One hanging rope;
2. storage bag;
3. Two AAA batteries
4. One user manual
5. One JUMPER Health(app) user manual

Symbol Conventions

Symbol	Description
	BF-type application part
	Caution: Please see this manual.
%SpO2	Symbol of oxygen saturation
bpmPR	Symbol of pulse rate
	No SPO2 alarms.
	Consult the instructions for use.
IP22	The degree of protection against harmful ingress of water and particulate matter
	When end users abandon this product, they must send the product to the collection place for recycling.
	CE Mark: The Product system conforms to essential requirements of the Medical Device Directive 93/42/EEC.

Overview

Oxygen saturation is the percentage of oxyhemoglobin (HbO2) that is combined with oxygen against all combinable hemoglobin (Hb). It is an important physiological parameter involved in respiration and circulation. The oxygen saturation of arterial blood in a normal human body is 98%. Oxygen saturation is an important indicator of the oxygen condition in the human body. In general, the normal values of oxygen saturation shall not be lower than 94%. If the measured value of oxygen saturation is lower than 94%, an insufficient supply of oxygen is considered.

The pulse rate is the number of pulse beats per minute. Normally, the pulse rate is consistent with the heart rate. In general, the pulse rate of every people is 60 to 90 beats per minute.

The Perfusion Index (PI) usually reflects the limb perfusion status of an examined patient, and shows the detection precision of the instrument as well; that is, examination can still be performed even in the low or weak perfusion condition. The PI of a normal human body is 0.3% or greater.

Working Principles, Expected Usage, and Applicable Scope

Based on full digital technology, the Finger Pulse Oximeter non-invasively measures the actual content (oxygen saturation) of oxyhemoglobin (HbO2) in arterial blood using the optical transmittance method.

The Finger Pulse Oximeter measures the blood oxygen saturation and pulse rate of a human body via finger artery. It is applicable to a wide range of fields, such as families, clinics. Use this instrument for measurement before or after sports. You are not advised to use this instrument during sports activities. Do not use it for continuous care for patients.

Appearance of Structure

Screen Display

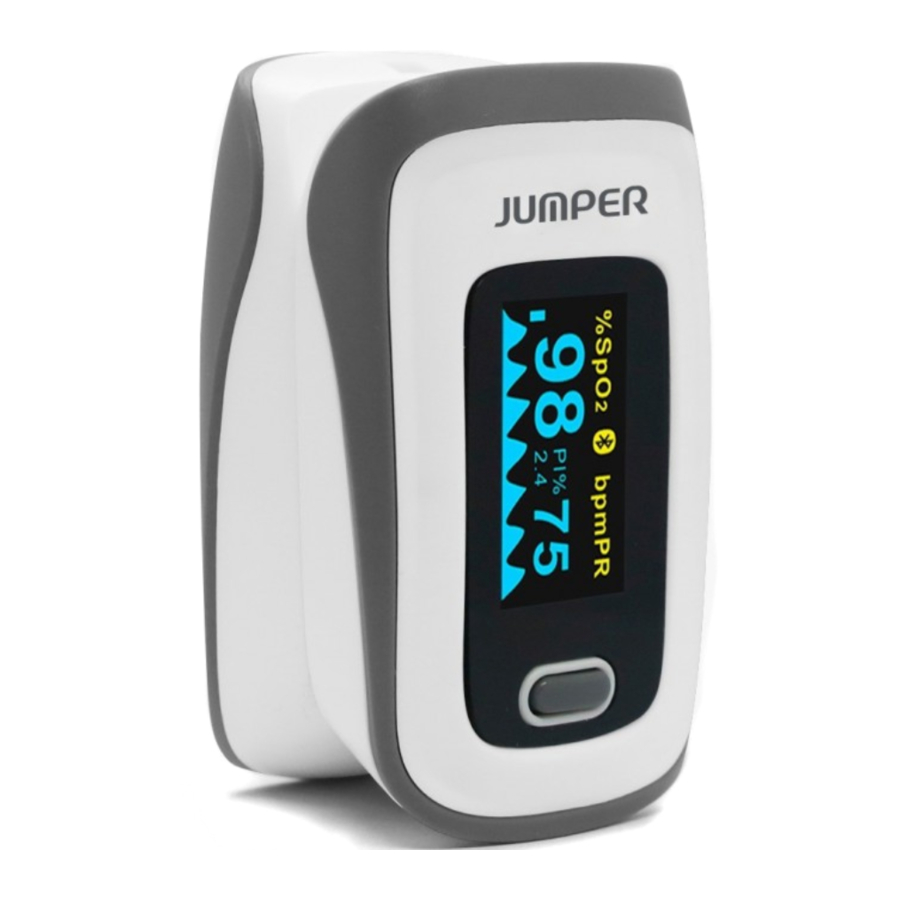

The following figure shows the information display on the OLED screen of the Oximeter in normal detection state:

Note: Battery power indication and bluetooth symbol will alternately displayed.

Power-On Button/Functional Button Operations

After powering on the Oximeter, hold the power-on Button/functional button for about one second. The Oximeter shows a parameter setting interface. Press or hold the power-on/functional button to perform corresponding operations. Hold it to set an item, or press it to switch an option. Press means no more than 0.5 seconds, while Hold means more than 0.5 seconds.

Alert Sound Setting

Hold the power-on button/functional button while the Oximeter is in powered-on state. Parameter setting interface 1 is displayed, as shown in the following figure. Move "*" to the corresponding option, and hold the functional button to set Alm to on and set Beep to off. When Alm is set to on and the measured values of the blood oxygen saturation and pulse rate go beyond the upper limit or lower limit, the Oximeter gives off an alert sound. When Alm is set to off and the measured values go beyond the limit, the Oximeter will not give any alert sound. When Beep is set to on, a tick will be heard along with pulse beats during pulse rate measurement. When Beep is set to off, no sound will be output along with pulse beats during pulse rate measurement. While the "*" symbol stays on the Restore option, hold the functional button to restore factory settings.

Brightness Setting

On parameter interface 1, press the functional button to select the Brightness option and then hold the functional button to set the brightness to a value ranging from 1 to 5. The greater the value, the greater the brightness of the screen.

Alert Range Setting

On parameter interface 2, press the functional button to switch between options. On this interface, you can set the upper limit and lower limit of SpO2 Alm and PR Alm. While the "" symbol stays on the +/- option, hold the functional button to set the option to + or -. In + mode, select the corresponding option and hold the functional button increment the upper or lower limit; in - mode, hold the functional button to discrete the upper or lower limit. Move "" to the Exit option, and hold the functional button to return to the monitoring interface.

Operation Guide

Stick one finger completely into the measurement parts of the Oximeter, keep the fingernail surface upward, and release the clip. Then press the power button to power on the Oximeter.

If you do not yet completely insert your finger into the cavity, the measurement result may be inaccurate.

Do not vibrate your finger during measurement. Preferably, ensure that your body does not move. After the readings become stable, read the measured values of oxygen saturation and the pulse rate on the screen.

The Oximeter will automatically shut down 10 seconds later after your finger leaves away.

Connecting the Instrument to a Mobile Phone via Bluetooth

Note: For details on specific operations, see software operation instructions for the mobile phone.

Replace the batteries when the battery capacity is insufficient along with the symbol () flickers on the screen.

Install the two AAA dry batteries into the battery slot according to polarity indication, and mount the battery cover.

Cleaning

Power off the instrument and remove the batteries before cleaning. Ensure that the appearance of the instrument is neat, dust-free, and dirt-free. Clean the outer surface of the instrument (including the OLED screen) using 75% medical alcohol and a piece of dry soft cloth.

Avoid liquid flowing into the instrument during cleaning.

Do not immerse any part of the instrument into any liquid.

Disinfection

Before measurement with the instrument, wipe the rubber finger pad using a piece of dry soft cloth dipped with 75% medical alcohol. Clean the finger to be measured using the medical alcohol for disinfection purposes before and after use.

Do not disinfect the instrument by means of high-temperature/high- pressure or gas disinfection.

Maintenance

• Remove the batteries from the battery slot and properly store them if you do not plan to use the Oximeter for a long period of time.
• Store the Oximeter between 14F and 122F (–10 C to +50C) and at humidity levels 10%- 93%.
• Periodically check the Oximeter for damage.
• Avoid using the Oximeter in an environment with inflammable gases or using it in an environment where the temperature or humidity is excessively high or low.
• Check the accuracy of the oxygen saturation and pulse rate readings by using an appropriate calibration apparatus.

Technical Specifications

1. Dimensions: 62.0 mm (Width) × 37.0 mm (Depth) × 32.0 mm (Height) Weight: 42.5 g (including the height of the two AAA dry batteries)
2. Peak wavelength range of the light emitted from the probe: red light 660 nm ± 3; infrared light 905 nm ± 5.
3. Maximum optical output power of the probe: 1.2 mw for infrared light (905 nm).
4. Bluetooth module: 4.1 (single-mode)
5. Manufacturing date: see the label
6. Normal working condition

7. Default values and conditions of alert

8. Technical parameters

Safety Type

Anti-electric-shock type: internal power supply device

Anti-electric-shock degree: BF-type application part

Running mode: continuous working

Waterproof grade: IP22

Storage and Transportation

Packaged products should be stored in well-ventilated rooms without corrosive gas and with an ambient temperature of –10C to +50C, a relative humidity 10%- 93% (without condensation), and an atmospheric pressure of 50–106 kPa.

After-sale Service

After-sale service unit: Shenzhen Jumper Medical Equipment Co., Ltd.

Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan,

Shenzhen, Guangdong, China Tel: +86-755-26696279

Fax: +86-755-26852025

E-mail: info@jumper-medical.com

Website: www.jumper-medical.com

Postal Code: 518103

Storage and Transportation

MedPath GmbH

Mies-van-der-Rohe-Strasse 8, 80807 Munich, Germany

Shenzhen Jumper Medical Equipment Co., Ltd

Address: D Building, No. 71, Xintian Road, Fuyong Street,
Baoan, Shenzhen, Guangdong, China
Post Code: 518103

Phone: +86-755-26696279
Fax: +86-755-26852025
Mail: info@jumper-medical.com
