ARMSTRONG 135cm to 150cm BED
ASSEMBLY INSTRUCTIONS

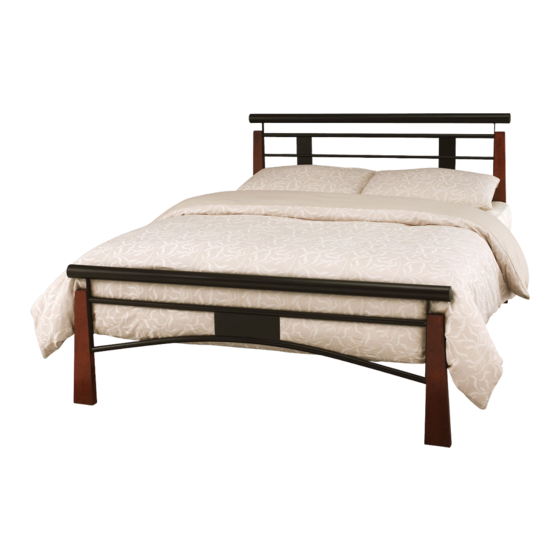

ARMSTRONG DOUBLE BED
1.Please read through and follow the step-by-step instructions in the leaflet.
2.We recommend that assembly is done in the room intended for use and it is assembled by two people.
3.Please do not discard any packaging before you have checked all the parts and fittings are included.
4.Assemble this product on a flat and clean surface to avoid scratching.
5.Do not tighten any bolts before all the parts have been assembled loosely. Product and/or fittings might be damaged by over
tightening screws or bolts. Beware of cross -threading the screws or nuts during assembly.
6.Keep fittings away from childrens' reach.
COMPONENT PARTS
[1]-Headend x 1pc
[3]- Headend Wood Post x 2pcs
[4]- Footend Wood Post x 2pcs
[5]- Siderail x 2pcs
[6] - Centre Rail x 1pc
[7]- Across Bar x 3pcs
[8] - Wooden Slats x 24pcs
[9]- Centre Plastic Holder x 12pcs
[10]- Side Plastic Holder x 24pcs
[11]- Support Legs x 3pcs
SAFETY WARNING:
[2]-Footend x 1pc
Do not stand on the bedbase without a mattress on it.
FITTINGS
[A] - M6x20mm bolts x 16pcs
[B] - M6x35mm bolts x 5pcs
[C] - M6x50mm bolts x 9pcs
[D] - M6 Hex Nuts x 14pcs
[E] - M6 Allen Key x 1pc
Advertisement
Table of Contents
Related Manuals for Serene Furnishings ARMSTRONG 135cm BED
Summary of Contents for Serene Furnishings ARMSTRONG 135cm BED
- Page 1 ARMSTRONG 135cm to 150cm BED ASSEMBLY INSTRUCTIONS ARMSTRONG DOUBLE BED 1.Please read through and follow the step-by-step instructions in the leaflet. 2.We recommend that assembly is done in the room intended for use and it is assembled by two people. 3.Please do not discard any packaging before you have checked all the parts and fittings are included.
- Page 2 STEP 1 : FRONT VIEW Attach the Headend [1] and Footend [2] to the Headend Wood Post [3] and Footend Wood Post [4] to form headend and footend. STEP 2a : Attach Siderails [5] to the Headend and Footend. STEP 2b : Attach Across Bar [7] and followed by the Centre Rail [6] to form the bed base.
