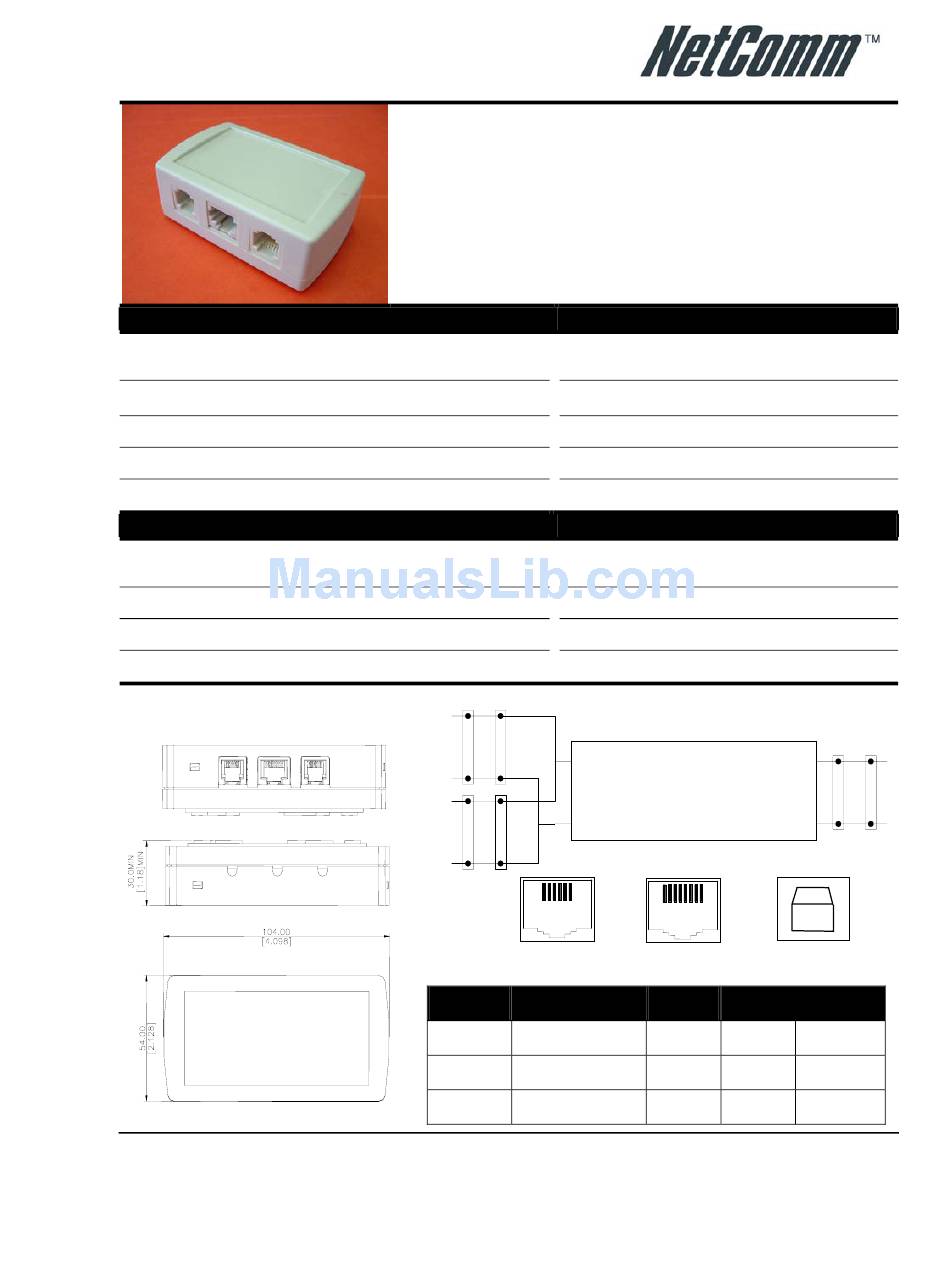

NetComm EM1180 Specifications

EM1180 Central ADSL/ Telephone
Line Splitter
High quality low pass filter with optimum
performance
Surge and overload current protection
Wall mounting facility
Removes interference from cordless telephones
Multiple input and output termination.
Includes screw termination block and modular
connectors for ease of wiring connection.
Can be wall mounted vertically or horizontally.
Standard modem user connection.
Installation instructions included

Dimensions

J2
J1
J5
J4
Telephone: (02) 9424-2000

Features

Installation

J3
J2/J5
J1/J4
J6
Connector
J1/J4
J2/J5
J3/J6
NetComm Limited.
2~6 Orion Road, Lane Cove, NSW, 2066
Facsimile: (02) 9424-2010 web: www.netcomm.com.au
ADSL PSTN Splitter Filter
Australian Version

Application

Suitable for all Australian ADSL
system
G.dmt and G. Lite application

Compliance

ACA Telecommunication labelling
notice: 2001
AS/ACIF S002: 2001 Amd 1
TS001 and AS/NZS 3260

Schematic

L. P. F.
Overload protector
Surge protector
1 6
1 8
RJ12 RJ45
Function Style
ADSL Modem RJ45/IDC Pin4/Pin2
Line RJ12/IDC Pin3/Pin2
Local Phone RJ12/IDC Pin3/Pin2
J3/J6
1
2
IDC Connection
Tip Ring
Pin5/Pin1
Pin4/pin1
Pin4/Pin1
