NetComm NP3680 User Manual

NetComm NP3680 User Manual

2-port usb print - scanner - storage server
Hide thumbs Also See for NP3680:
Table of Contents

Advertisement

Quick Links

User Guide
NP3680
2-Port USB Print - Scanner - Storage Server

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NP3680 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NetComm NP3680

Summary of Contents for NetComm NP3680

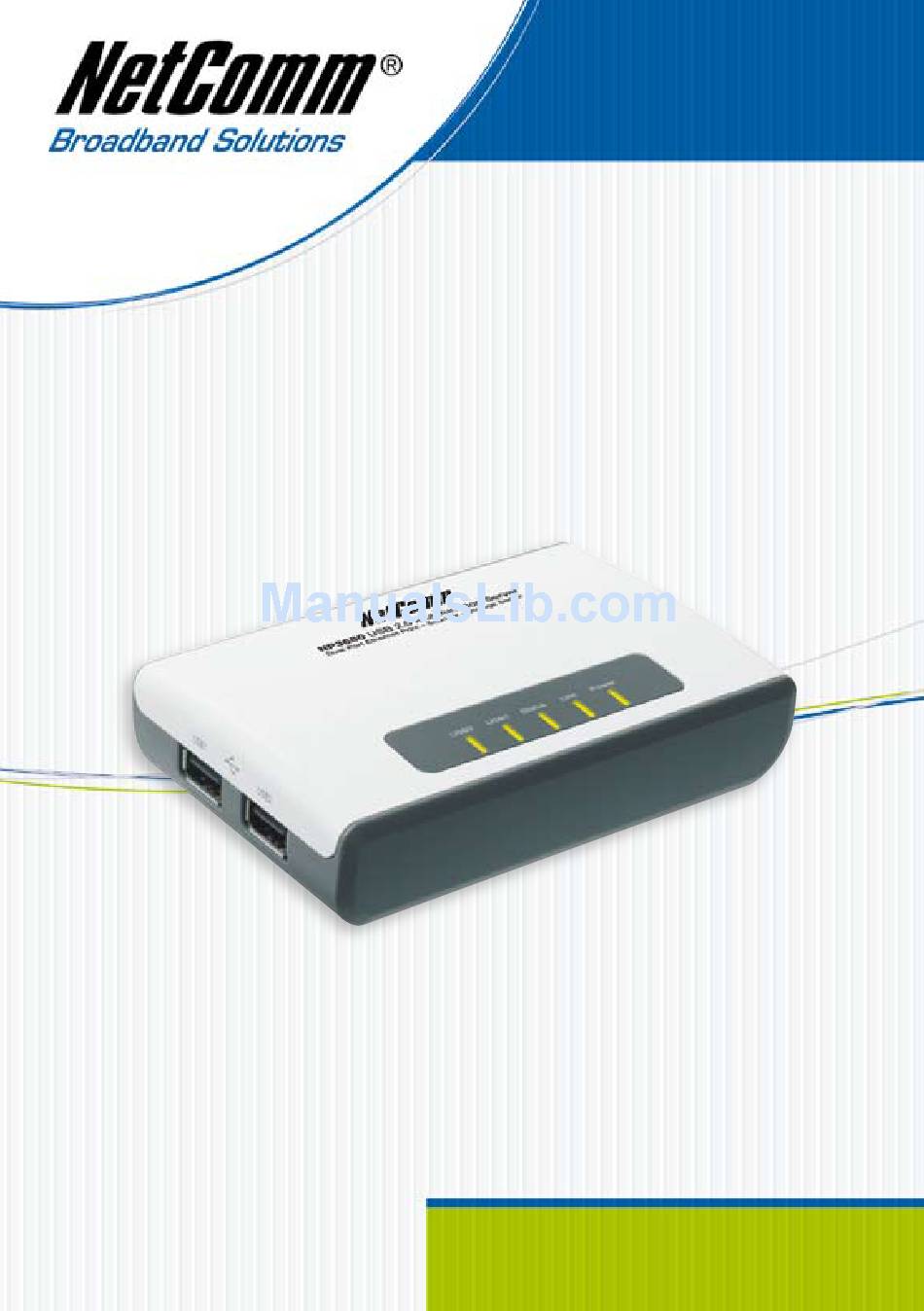

  • Page 1 User Guide NP3680 2-Port USB Print - Scanner - Storage Server...

  • Page 2: Table Of Contents

    Connecting a File Server ... 35 6.1 Preliminary ... 35 6.2 Storage Names ... 35 6.3 Connecting USB Mass Storage to the Server ... 35 6.4 Supported Codepages ... 36 6.5 Adding Your USB Mass Storages to Network with Security ... 38 Chapter7 Connecting a Scanner ...
  • Page 3 RJ-45 Network Ports ... 80 Straight and crossover cable configuration ... 80 Straight-Through Cabling ... 81 Cross-Over Cabling ... 81 APPENDIX B Registration and Warranty Information ... 82 Contact Information ... 82 Copyright Information ... 82 Customer Information ... 83 NP3680 User Guide YML838 Rev ...

  • Page 4: Chapter1 Introduction

    Chapter1 Introduction Thank you for purchasing this NP3680 USB MFP Server (in the following referred to as “Server”). This Server is designed to connect your AIO/MFPs (All-In-One/Multifunction Peripheral), printers, USB mass storages (hard drives, flash drives, and memory card readers), and scanners, to your network, allowing all network users access to these shared USB devices resources.

  • Page 5: Chapter2 Product Overview

    Verify that nothing is missing from the package by using the check list below. Please contact your dealer if anything is missing or damaged. All packing materials are recyclable. Please confirm the items in the package below: • One NetComm MFP Server • One CD (Control Center Utility and User Documentation) •...

  • Page 6: Physical Description

    USB device or this Server. USB2 Indicator: is lit while a USB device connects to USB2 Port of this Server. If it is not lit, or if it blinks, there is a problem with the USB device or this Server. NP3680 User Guide YML838 Rev ...

  • Page 7: Installation Procedures

    2.4 Installation Procedures 2.4.1 Installation and Integration Please refer to the table below to select the appropriate installation method. The Control Center is available on the CD or from NetComm’ website. Function Print Server Windows Apple MAC OS X Unix/Linux Edit File Server Windows Apple MAC OS X...

  • Page 8: Features And Benefits

    The Server’s web pages and user software allow you to continuously monitor the status of connected USB devices. Future Proof: The firmware stored in the Server’s Flash memory can be upgraded over the network. This allows you to quickly update and enhance its operational features when new Server software becomes available. NP3680 User Guide YML838 Rev ...

  • Page 9: Chapter3 Basic Installation

    When the USB1 and USB2 indicators stop flashing, the Server is ready to work. 6. If you connect USB HP printers to the Server, please press the Init button for 3 seconds on the Server once to print a page of Server configuration report. NP3680 User Guide YML838 Rev ...

  • Page 10: Assigning An Ip Address To The Server

    3.2.5 Host Names and Host Name Rules The Host Name of the Server defaults to be “NP3680” (for NP3680). If you put two or more Servers in your local area network, to avoid using the same Host Names you have to change the Host Names by using the Control Center or the Server’s web pages.

  • Page 11: Setting The Ip Address Using Dhcp

    DNS server IP address in the DHCP scope or manually set the DNS server IP address using Server’s web pages or the Control Center. 3.2.7 Setting the IP Address Using the Control Center 1. Install the Control Center. The Control Center is available on the Product CD. 2. Start the Control Center and Auto-searching Server window will appear. NP3680 User Guide YML838 Rev ...
  • Page 12 Automatically get IP by DHCP, you can use desired DNS by clicking the Manual DNS button and manually assigning a DNS. 7. Click Apply to save your settings and the Server will reboot. 8. You have now finished the procedure of setting the IP address. NP3680 User Guide YML838 Rev ...
  • Page 13 IP address or click the Home Icon of the Control Center. 3. Go to the web page and click the CONFIG menu icon. 4. Enter administrator (default: admin) and password (default: admin). 5. Click the TCP/IP menu icon. NP3680 User Guide YML838 Rev ...
  • Page 14 When assigning a static IP address you also have to define Subnet Mask and Default Gateway. 7. Click Submit to save your settings. And the Server will reboot. You have now finished the procedure of setting the IP address. NP3680 User Guide YML838 Rev ...

  • Page 15: Chapter4 Installing The Print Server In Windows

    Set up / Install the Local Windows Printer Driver Step 6 Turn on “Online Use Printer” in Installed Windows Printer Driver NP3680 User Guide YML838 Rev  Method Standard Windows Add Printer Wizard The Control Center’s Add Printer Standard Windows Add Printer Wizard Standard Windows Add Printer Wizard The Control Center’s Add Printer...

  • Page 16: Connecting The Server

    4.2 Connecting the Server To configure your Server correctly, you should know which type of network topology that your Server is connecting to. 4.2.1 The Server and Windows PC on Same LAN 4.2.2 The Server and Windows PC on Different LANs Example: Wired Windows PC across Internet Internet NP3680 User Guide YML838 Rev ...

  • Page 17: Setting Up Local Windows Printer Driver

    4. Select a Windows driver for your printer. Click Next. 5. Choose whether you want to share the printer with other network users. Do you want to print a test page? Select the appropriate radio button and click Next and Finish. NP3680 User Guide YML838 Rev ...

  • Page 18: Adding Network Printers In Windows

    4. The Add Standard TCP/IP Printer Port Wizard will pop up and click Next. 5. In the Printer Name or IP Address box, enter the Host Name of the Server (default: NP3680) or IP address of the Server. In the Port Name box, enter your desired names or USB1_LPR or USB2_LPR for printer connected to USB1 port and USB2 port, respectively.
  • Page 19 If your Server is running on a different LAN than your Windows PC such as Internet PC, you must enter Server’s IP address in Printer Name or IP Address box. 6. Click Next. NP3680 User Guide YML838 Rev ...
  • Page 20 7. Click Custom/settings. 8. Click Settings and confirm that the settings are as below. The queue names are USB1_LQ, USB2_LQ for USB1 port 1 and USB2 port, respectively. Click OK. 9. Click Finish. NP3680 User Guide YML838 Rev ...

  • Page 21: Using The Control Center For Lpr Printing

    Printing with LPR (Line Printer Remote). If your Server is running on a different LAN than your Windows PC such as Internet PC, you must choose IP address in Select IP address or Host Name in printer port box. 3. Click Apply. NP3680 User Guide YML838 Rev ...

  • Page 22: Using Standard Windows Method For Raw Tcp Printing

    4. The “Add Standard TCP/IP Printer Port Wizard” will pop up and click Next. 5. In the Printer Name or IP Address box, enter the Host Name of the Server (default: NP3680) or IP address of the Server. In the Port Name box, enter USB1_RAW or USB2_RAW for printer connected to USB1 port and USB2 port, respectively.

  • Page 23: Using The Control Center For Raw Tcp/Jetdirect Printing

    Print with Raw TCP Mode. If your Server is running on a different LAN than your Windows PC such as Internet PC, you must choose IP address in Select IP Address or Host Name in printer port box. 3. Click Apply. NP3680 User Guide YML838 Rev ...

  • Page 24: Using Standard Windows Methods For Smb/Cifs Printing

    ”\\ Server’s IP address\printer name” (Please refer to the Server’s web pages or the Control Center to know exact path). For example: if you set the Server’s Host Name as “NP3680” and printer name (USB1 port) as LaserJet 303, then the network path is expressed as: \\NP3680\...

  • Page 25: Using The Control Center For Smb/Cifs Printing

    Printing with Network Path (SMB). If your Server is running on a different LAN than your Windows PC such as Internet PC, you must choose IP address in Select IP address or Host Name in printer port box. NP3680 User Guide YML838 Rev ...
  • Page 26 4. Click the Next button. On the next window, select Connect to a printer on the Internet or on a home or office network. In the URL: field, enter the following to connect to the Server: http://Server’s Host Name /printer name or http:/Server’s IP address /printer name For example, http://NP3680/LaserJet 303 NP3680 User Guide...
  • Page 27 If your Server is running on a different LAN than your windows PC such as Internet PC, you must enter IP address in URL: Field. 5. Click Next and then continue Windows Add Printer Wizard. NP3680 User Guide YML838 Rev ...

  • Page 28: Chapter5 Installing The Print Server In Unix/Linux

    # login root 2. Register the Server’s Host Name and IP address into /etc/hosts file. To edit host file, use an editor, e.g. “vi”. Example: The IP address is “ 192.168.1.100”, Host Name is “NP3680” 192.168.1.1 dns # DNS Server 192.168.1.2 mail # Mail Server...

  • Page 29: Using The Server On Bsd Unix/Linux

    1. Log in to the BSD Unix machine through “root”. # login root 2. Register the Server into /etc/printcap file. Example: To register the printer of USB1 port by the printer name “Printer1”. Printer1 :\ ---(A) :lp=:rm=NP3680:rp=USB1_LQ:\ ---(B) :sd=/var/spool/lpd/Printer1:\ ---(C) :lf=/var/spool/lpd/Printer1/Printer1_errs: ---(D) where (A) Describes the printer name.

  • Page 30: Using The Server On Redhat Linux (Fedora Core)

    In the RedHat (Fedora Core) x-window user interface, follow these steps: 1. To start the application, select Main Menu button (on the Panel)-> Applications->System Settings -> Printing. 2. Click on the New button in the Printer configuration window. 3. Click on the Forward button in the Add a new print queue window. NP3680 User Guide YML838 Rev ...
  • Page 31 Forward button. Example: If your Server’s IP address is 192.168.1.100 and it connects to HP PSC 1300 MFP via USB1 port. You can enter IP address in the Server box as 192.168.1.100 and Queue name in Queue box as USB1_LQ. NP3680 User Guide YML838 Rev ...
  • Page 32 HP PSC 1300 MFP via USB1 port. You can enter IP address in the Server box as 192.168.1.100 and TCP Port in Port box as 9100. C. Networked Windows (SMB): Click on the Specify button to specify SMB server Authentication. NP3680 User Guide YML838 Rev ...
  • Page 33 Fill in the Workgroup, Host Name, User name and Password in Authentication window and then click on the OK button. iii. Click on the Forward button. NP3680 User Guide YML838 Rev ...
  • Page 34 1300 ser. You can enter IP address in Server box as 192.168.1.100 and printer name in Path box as psc 1300 ser. 7. Select your printer driver. Click on the Forward button. Windows will display the Finish, and create the new print queue folder. 8. Click Finish button. NP3680 User Guide YML838 Rev ...

  • Page 35: Chapter6 Connecting A File Server

    NetUSB mode. Please refer to the Storage Access Mode. 2. NetComm is not responsible for the loss or corruption of data in memory devices, including hard disk; NetComm is not responsible for the leak, manipulation, loss, or corruption of data in memory devices connected to the Server after unauthorized access.

  • Page 36: Supported Codepages

    2. If the tool finds the Servers in your local area network, then you have to select one Server from the Server List. 3. Double click the highlight list and enter the Server’s administrator (default: admin) and password (default: admin). 4. After you have logged in successfully, setting General Configuration dialog appears. NP3680 User Guide YML838 Rev ...
  • Page 37 1. Go to the web page, click CONFIG 2. Login your administrator (default: admin) and password (default: admin). 3. After you have logged in successfully, setting General Configuration dialog appears. 4. Select your codepage form File Server Codepage box and click Apply. NP3680 User Guide YML838 Rev ...

  • Page 38: Adding Your Usb Mass Storages To Network With Security

    SMB/CIFS server via Internet. If you select the item, you allow Internet users can access your storage using the SMB/CIFS protocol. Enable Server Authentication: select the item, if you want to share your storage with user • level security which requires user name and password to login. If you clear the item, your storage will be shared without security.
  • Page 39 If you clear the item, your FTP server will not support anonymous login function. C. Storage Access Mode: To use FTP and SMB/CIFS to access storage, please set the storage access mode to the server mode. For the NetUSB mode, please refer to chapter 9.
  • Page 40 If you clear the item, your FTP server will not support anonymous login function. C. Storage Access Mode: To use FTP and SMB/CIFS to access storage, please set the storage access mode to the server mode. For the NetUSB mode, please refer to chapter 9.

  • Page 41: Using Shared Storages By Smb/Cifs Method For Windows

    You can refer to Control Center or the Server’s web pages to get it. You will see that the Server will be displayed as the default Host Name “NP3680” or the Host Name that you have set. 6. If you cannot find Workgroup name of the Server in Microsoft Windows Network, you can select Search for Computer…...
  • Page 42 “anonymous” to login with Read-only permission. If you clear Server authentication, you do not need username or password to login to the Server. You can add user name and password in User Account box the Control Center or the Server’s Web pages. 4. Perform FTP commands to use this FTP server. NP3680 User Guide YML838 Rev ...

  • Page 43: Chapter7 Connecting A Scanner

    SANE client. For non HP MFPs/Scanners, please use “NetUSB” technology, which is described in Chapter 9. 7.1 Connecting HP All-In-One to the Server 7.2 Using the Shared Scanner in Windows 7.2.1 Using the Control Center 1. Start the Control Center, select your Server, and click Network Scanner. 2. Select your scanner for USB1 port or USB2 port. NP3680 User Guide YML838 Rev ...
  • Page 44 7. Save as your images to the file. choose flatbed scanning or scrollfed scanning choose lineart (black/white), Gray and color mode choose the image resolution tune the contrast of the image tune the brightness of the image define the scanning range of the image NP3680 User Guide YML838 Rev ...

  • Page 45: Using Windows Applications

    TWAIN driver in advance. When you install the Control Center, it will also install this TWAIN driver. Example: Using Photoshop 1. Start Photoshop, click File ->Import->NetComm Network Scanner 2. Select a Server’s IP address or enter a Server IP address in Server Information box. You can click Search Server button to search existing Servers in your network.

  • Page 46: Using The Shared Scanner In Linux

    3. Edit \etc\sane.d\net.conf and put the IP address of the Server where the scanner is connected into one line, for example: 192.168.1.100. 4. To start the application, select Main Menu button (on the Panel)-> Applications->Graphics -> Scanning. 5. Perform scan function. NP3680 User Guide YML838 Rev ...

  • Page 47: Chapter8 The Control Center

    Goto HomePage : go to the web pages of the highlighted server. Network Scanner : perform network scanner function of the highlighted server. Set Printer: perform set printer function of the highlighted server. Network Storage : access the network storage by SMB/CIFS method. The storage access mode must be in Server Mode. Note 1: You can also right-click the mouse button on the highlighted server to get the “Configure MFP Server”, “Goto HomePage”, “Network Scanner”, “Set Printer”, and...

  • Page 48: Displaying Server Status

    File Server Codepage: If users want to communicate files using FTP client tool or SMB on Windows 98 SE/Me/2000 with the Server, they have to set their Server codepage to be same as the codepage that their Windows PC is using. Generally, the criteria of choosing codepage are based on your Windows NP3680 User Guide YML838 Rev ...
  • Page 49 Server Authentication: select or clear Enable Server Authentication support. Select the item, if you want to share your storage or printer with user level security which requires user name and password to login. If you clear the item, your storage will be shared without security.
  • Page 50 2. NetUSB Mode: In this mode, you can access the USB storage using NetUSB technology. In this mode, FAT16/32 and NTFS file formats are supported, but only one user is allowed to access the storage at the same time. Please refer to chapter 9 for the details about NetUSB technology.
  • Page 51 • Retype Password: confirm your previous password typing. User Accounts list • User name: add a new user account for accessing the storage attached to the Server. Password: set a password for added user. • Permission: select Read-Only or Read-Write permission to access File servers.
  • Page 52 Privacy Password: set privacy password of SNMP v3. • Email: If you want to receive some alerting mail from the Server, you have to enable SMTP Protocol, and • set Email configuration. You can set new SMTP port number (default: 25). NP3680 User Guide YML838 Rev ...
  • Page 53 Cc: stands for carbon copy; enter an e-mail address to send that mail to a second person. • • SMTP Server requires authentication: login to remote SMTP server which requires authentication. • Account Name: enter account name for remote SMTP server. • Password: enter account’s password for remote SMTP server. NP3680 User Guide YML838 Rev ...

  • Page 54: Maintenance

    Instead, the it just minimizes itself to the system tray. There are two ways to really close the Control Center. The first way is choosing “Exit” item in the “File” menu in the Control Center. The second way is right-clicking the icon of the Control Center in the system tray and choosing the “Exit” item. NP3680 User Guide YML838 Rev ...

  • Page 55: Chapter9 The Netusb Technology

    The NetUSB Technology 9.1 Introduction The goal of NP3680 USB MFP server is to provide the print/scan/file server in a single product. For printers and scanners, there is no industrial standard. In order to support many different models of printers and scanners from various vendors, you must put so many printer/scanner drivers into a single product. Obviously this is very hard and not practical.

  • Page 56: Link & Unlink

    “NetUSB” allows you to use USB printers or USB MFPs as if they were connected directly to your PC although they are actually connected to the NP3680 USB MFP server. The “link” operation is a software operation that simulates an actual USB device plug-in. That is to say, when you do a “link” operation in the Control Center, PC can then detect a USB device’s plug-in, although actually you do not plug in any USB device.

  • Page 57: How To Use

    NetUSB technology, you must first make sure that your PC can access NetComm USB MFP server via TCP/IP. The simplest way to do this is using “Control Center” to search for the NetComm USB MFP server on the network and change its IP address to be the same subnet as your PC. If the MFP server and your PC are not in the same TCP/IP subnet, Control Center will show the MFP server in green, as the following figure.
  • Page 58 After the installation, you can see the newly created devices on the PC. If the USB device is a MFP, you can see a new printer and a new scanner from the “Control Panel”. NP3680 User Guide YML838 Rev ...

  • Page 59: Netusb Printing

    By the way, if the printer is manually linked (owned) by someone else and he forgets to unlink the printer, you can click the “Force Link” button to forcedly get the ownership. However, this way is not recommended. NP3680 User Guide YML838 Rev ...

  • Page 60: Netusb Scanning

    E. Then the “Scanner Wizard” will run. Set the options as your need. Then submit the scan job. F. After the scanning finished, click the “Unlink” button in the Control Center to release the ownership of the scanner (or MFP). NP3680 User Guide YML838 Rev ...

  • Page 61: Accessing Usb Storage Using Netusb Technology

    You can see the storage icon in the system tray, as the following figure. E. Just use the new disk as a general disk. F. After you finish the disk operations, click the storage icon in the system tray and choose “Safely remove USB Mass Storage Device”.

  • Page 62: Chapter10 The Server's Web Pages

    1. If you don’t know the current IP of you Server, open the Control Center utility. 2. You can see the IP address of you Server in the Server List. 3. Open a Web Browser and enter the Server’s IP address or click the Home Icon of the Control Center. NP3680 User Guide YML838 Rev ...
  • Page 63 10.2.1 Displaying Server Status Click on Status in the menu bar. This will display the status of Host Information, TCP/IP and USB devices. NP3680 User Guide YML838 Rev ...
  • Page 64 Windows PC is using. Generally, the criteria of choosing codepage are based on your Windows codepage. For example, if your Windows codepage is Traditional Chinese, you have to select Traditional Chinese (Big5) in the Server. Please refer to the chapter “File Server”. NP3680 User Guide YML838 Rev ...

  • Page 65: Supported Protocols

    Enable Internet Access: select or clear Enable Internet Access support. If you clear the item, you do not allow that users can access your SMB/CIFS server via Internet. If you select the item, you allow Internet users can access your storage using the SMB/CIFS protocol.
  • Page 66 2. NetUSB Mode: In this mode, you can access the USB storage using NetUSB technology. In this mode, FAT16/32 and NTFS file formats are supported, but only one user is allowed to access the storage at the same time. Please refer to chapter 9 for the details about NetUSB technology.

  • Page 67: User Accounts

    • Retype Password: confirm your previous password typing. • User Accounts list User name: add a new user account for accessing the storage attached to the Server. • • Password: set a password for added user. • Permission: select Read-Only or Read-Write permission to access File servers.
  • Page 68 (2) to send Trap packets receiving the wrong Community name. SNMP V3 Enable SNMP V3: select or clear Enable SnmpV3 support • User Security name: set user security name of SNMP v3 • Auth Password: set authentication password of SNMP v3. • Privacy Password: set privacy password of SNMP v3. • NP3680 User Guide YML838 Rev ...

  • Page 69: Restart Server

    Restart Server Click this button, the Server will restart. NP3680 User Guide YML838 Rev ...

  • Page 70: Maintenance

    Download New Firmware from Website: click this button to download new firmware or user software • from this product’s public website. Upgrade Firmware: click Open to find the firmware file to be upgraded. Click Upgrade to upload the • firmware into the Server. NP3680 User Guide YML838 Rev ...

  • Page 71: Chapter11 Email Alerting

    Chapter11 Email Alerting This Server emails a notification to the user at these events: 1. Adding or Removing a USB device. 2. System Error. NP3680 User Guide YML838 Rev ...

  • Page 72: Chapter12 Snmp

    Management Protocol). Users can use SNMP client software such as HP OpenView to manage the Server. The Server supports all relevant parts of MIB-II and a private MIB. You can set these MIB variables from the Server’s web pages or by using the Control Center. NP3680 User Guide YML838 Rev ...

  • Page 73: Chapter13 Troubleshooting

    This chapter provides useful information to help you resolve difficulties that you may experience with your Server. Fault symptoms, possible causes, and remedial actions are provided within a quick reference table. This Server’s USB ports only support MFPs, printers, scanners, and mass storage. 13.1 LED Indicators...

  • Page 74: Chapter14 Restore Factory Defaults

    Plug in the power adaptor while pressing the Init button until LED indicators of Power, USB1 and USB2 blink. After that, plug off the power adaptor and then plug in the power adapter again to restart the Server. Finally, the Server will operate using the Factory Default values. NP3680 User Guide YML838 Rev ...

  • Page 75: Default Parameters List

    14.4 Default Parameters List Host Information Comment (Optional): NP3680 USB MFP Server • Host Name: NP3680 • Workgroup: WORKGROUP • • Code Page of File Server: Western European TCP/IP • Automatically get IP by DHCP: Enabled Manual DNS: None (Disabled). • Static IP: Disabled • IP Address: 192.168.1.100 • • Subnet Mask: 255.255.255.0 • Default Gateway: none • DNS Server: none Supported Protocols LPR Printing: Enabled • IPP Printing: Enabled •...
  • Page 76 User Accounts • Administrator: admin • Password: admin SNMP • Authentic Community: public • Trap Community: public • Trap Address: 0.0.0.0 SysContact: sales@netcomm.com.au • SysName: NP3680 USB MFP Server • SysLocation: www.netcomm.com.au • EnableAuthenTrap: 2 (disable) • • SNMPv3: Disabled • User Security Name: None • Auth Password: None Privacy Password: None •...

  • Page 77: Chapter15 Upgrade Firmware

    Please note that after that, the Server will operate using the factory default values after restarting, i.e., your Server’s configuration will recover to Factory Default values. 2. Start the TFTP client Tool: Image Burner 3. Enter the Server’s Fallback IP address: 192.168.1.100 and click Open Image to open your new NP3680 User Guide YML838 Rev ...
  • Page 78 LAN, i.e. PC’s IP is 192.168.1.xxx and subnet mask is 255.255.255.0. 4. Click Upload Image. 5. Wait for Image Uploading to finish and then click Close. 6. Plug-off the power adapter and then plug-in the power adapter to restart the Server. NP3680 User Guide YML838 Rev ...

  • Page 79: Chapter16 The Init Button

    B. Perform a TFTP server. You can upgrade new firmware using the “Image Burner” utility. Note: After performing the tasks mentioned above, you have to plug off the power adaptor and then plug in the power adaptor to restart the Server. NP3680 User Guide YML838 Rev ...

  • Page 80: Appendix A Cable Information

    If you are unsure about which cable to use or which socket to connect it to, please refer to the hardware installation section in this manual. If you are still not sure about cable connections, please contact a professional computer technician or NetComm for further advice. RJ-45 Network Ports RJ-45 Network Ports can connect any networking devices that use a standard LAN interface, such as a Hub/ Switch Hub or Router.

  • Page 81: Straight-Through Cabling

    1. You can also refer to the illustrations and charts of the internal wiring on the following page. Straight-Through Cabling Cross-Over Cabling Note: To prevent loss of signal, make sure that the length of any twisted-pair connection does not exceed 100 metres. NP3680 User Guide YML838 Rev  Figure 3 Wire Becomes Figure ...

  • Page 82: Appendix B Registration And Warranty Information

    APPENDIX B Registration and Warranty Information All NetComm Limited (“NetComm”) products have a standard 12 month warranty from date of purchase against defects in manufacturing and that the products will operate in accordance with the specifications outlined in the User Guide. However some products have an extended warranty option (please refer to your packaging). To be eligible for the extended warranty...

  • Page 83: Customer Information

    NetComm. Failure to do so may cause damage to this product, fire or result in personal injury.

  • Page 84: Product Warranty

    The warranty is automatically voided if: 1. You, or someone else, use the product, or attempts to use it, other than as specified by NetComm; 2. The fault or defect in your product is the result of a voltage surge subjected to the product either by the way of power supply or communication line, whether caused by thunderstorm activity or any other cause(s);...
