PCI022_MZK-KR150NUS
User Manual
http://www.sapido.com.tw
1
USER MANUAL V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCI022 MZK-KR150NUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCI PCI022 MZK-KR150NUS

Summary of Contents for PCI PCI022 MZK-KR150NUS

  • Page 1 PCI022_MZK-KR150NUS User Manual http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 2 Notice Please notice and cooperate while using this product based on the statement below. a. FCC Section 15.105 This equipment has been tested and found to comply with the limits for a lass B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Table Of Contents

    Table of Contents FCC Caution ............................5 Safe Seating Gestures .......................... 6 Chapter 1 Introduction ......................... 7 Overview ........................7 Features ........................8 Specifications......................9 1.3.1 Product Appearance ..................11 1.3.2 LED Indicator Status Description ..............11 System Requirements ....................12 Get Your IP Automatically & Manually ..............12 1.5.1 Network Testing....................16 1.5.2...
  • Page 4 4.3.2 Wireless Advanced Settings ................48 4.3.3 Wireless Security Setup ..................49 4.3.4 Wireless Access Control .................52 4.3.5 WDS Settings ....................53 4.3.6 WPS ........................58 NAT ..........................63 4.4.1 Visual Server.....................63 4.4.2 Visual DMZ ......................65 Firewall........................66 4.5.1 Port Filtering .....................67 4.5.2 IP Filtering ......................68 4.5.3 MAC Filtering ....................70 4.5.4...
  • Page 5 Operating Systems ....................105 Browsers........................105 Communications Regulation Information ............105 http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 6: Fcc Caution

    FCC Caution The device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

  • Page 7: Safe Seating Gestures

    Safe Seating Gestures You should follow the manufacturer’s instructions for adjusting the backrest to fit your body properly. An adjustable chair that provides firm, comfortable support is best. Adjust the height of the chair so your thighs are horizontal and your feet flat on the floor. The back of the chair should support your lower back (lumbar region).

  • Page 8: Chapter 1 Introduction

    Chapter 1 Introduction Overview PCI022_MZK-KR150NUS Broadband Router is a convenient wireless solution for delivering 802.11n wireless connectivity with a maximum wireless signal rate of up to 150Mbps. Use it in home or company. Moreover, with connect to a 3.5G (EVDO/HSPA) or WiMAX USB modem, this PCI022_MZK-KR150NUS Broadband Router allows user to share the wireless network outdoor or be an alternative or backup to fixed broadband.

  • Page 9: Features

    Features This product is recessed wireless router, not only Wall mount : allow multiple computers or Internet devices connect to the Internet easily , but can mount into wall. UPnP Supported : insert your 3.5G or WiMAX modem card and enjoy the Internet without extra setting 3.5G and Wireless PCI022_MZK-KR150NUS Combo : Ideal for mobility or backup for fixed lined connection...

  • Page 10: Specifications

    Specifications Item Specification Key Components Realtek RTL8196C (400MHz ) Main Processor Flash 8Mbytes Serial Flash 32Mbytes SDRAM Wireless Chip Realtek RTL8188RE-VL (MAC+BB+RF) 1T1R Communication Interfaces WAN/LAN Port 1 x 10/100 Mbps RJ45 with auto MDI/MDIX 1 x 10/100 Mbps RJ45 with auto MDI/MDIX LAN Port USB 2.0 host x1 (supports 3.5G or WiMAX USB USB Port...
  • Page 11 72.6(L) x 48.1(W) x 49(D) mm (main body only) Dimensions Device Weight Notice: 1. USB device with power more than 500mA is not supported http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 12: Product Appearance

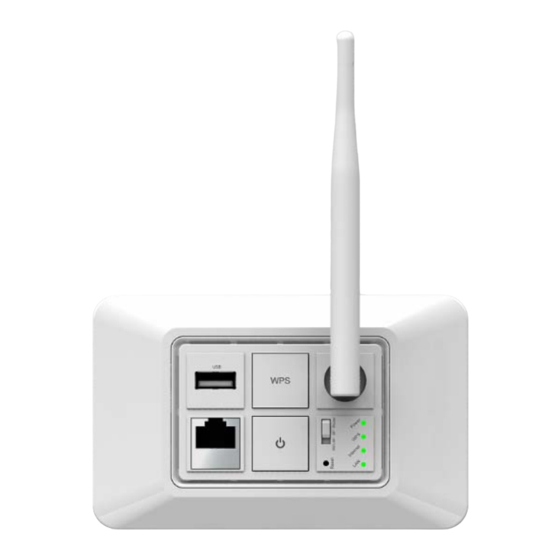

    1.3.1 Product Appearance AC100~240V / 50~60Hz universal input Power Receptor Push “WPS” button to looking for other WPS devices. The security will be set up between these 2 Wi-Fi devices after pairing. Press “Reset” button over 10 seconds. When status indicator turns from Reset Button flashing to solid, the process is completed.

  • Page 13: System Requirements

    WPS status 30ms Blinking Reddish WPS function in progress Orange 120ms 100Mbps Ethernet is connected Green Blinking 100Mbps Ethernet Tx/Rx activity 30ms WAN/LAN port WAN/LAN x 1 activity 10Mbps Ethernet is connected Green Blinking 10Mbps Ethernet Tx/Rx activity 120ms 100Mbps Ethernet is connected Green Blinking 100Mbps Ethernet Tx/Rx activity...
  • Page 14 After PCI022_MZK-KR150NUS Broadband Router connected with your computer, please make sure your IP is in the automatic IP position or you adjust it manually in order to activate the Internet network from home to Internet. If you don’t know how to enter the settings, please follow the steps as below.
  • Page 15 Step 3. Double click on Internet Protocol (TCP/IP). Step 4-1. For getting IP automatically if you are one of the users under PCI022_MZK-KR150NUS Broadband Router, please skip Use the following IP address and then select Obtain an IP address automatically and Obtain DNS server address automatically and then click on OK button.
  • Page 16 Step 4-2. For getting IP manually in order to specify a Virtual Server, such as Print Server, FTP Server and so on, please skip Obtain an IP address automatically and then select Use the following IP address. And the following default setting of PCI022_MZK-KR150NUS Broadband Router should be noted: IP Address: 192.168.1.10 (as your Print Server for example) Subnet Mask: 255.255.255.0...

  • Page 17: Network Testing

    1.5.1 Network Testing There are two ways to test your Network whether it can work on Internet or not. They are “Testing with Internet Browser” and “Testing with Dos”. 1.5.2 Testing with Internet Browser Open an Internet Browser, such as Internet Explore or Netscape. Input a valid web address http://www.yahoo.com you like, for example, in the web address blank and then press...
  • Page 18 Step 2. Input cmd in the blank, and then click OK button. The Command Prompt window appears. Step 3. Input ipconfig in the flashing area then press enter. You will get an IP Address 192.168.1.100, for example, and Default Gateway as 192.168.1.1. Step 4.
  • Page 19 If it can’t work, it will show Request timed out. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 20: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation Diagram of Connecting Hardware to PCI022_MZK-KR150NUS Broadband Router PCI022_MZK-KR150NUS Broadband Router is a portable and convenient wireless solution for delivering 802.11n wireless connectivity with a maximum wireless signal rate of up to 150Mbps. Use it in conference rooms, hotel rooms, or even at hotspots. 2.1.1 Hardware Connection and Application for Router Mode When PCI022_MZK-KR150NUS Broadband Router switches to Router Mode, there will be...
