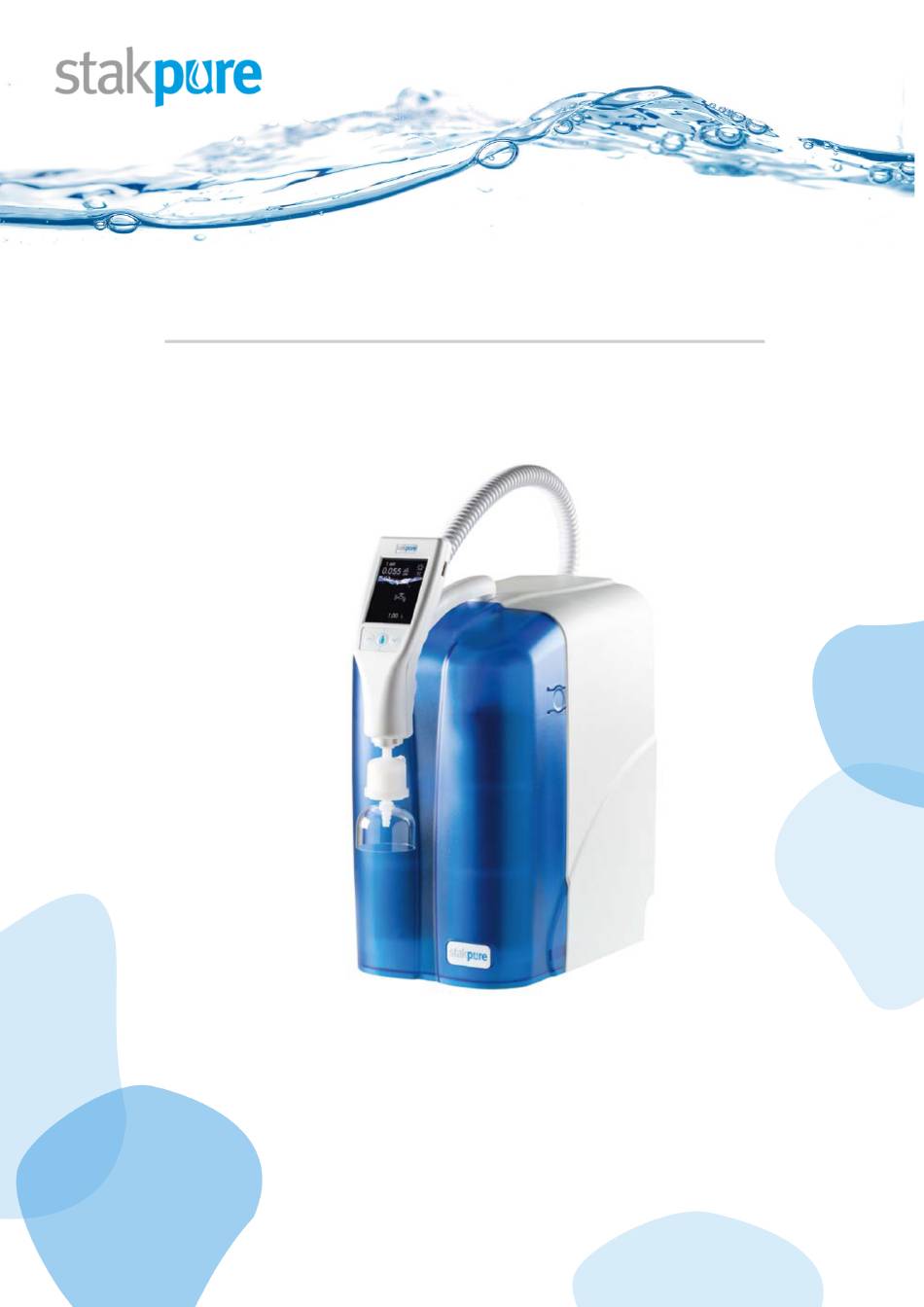

  • Page 1 Operating manual touch OmniaPure xs Blueline...
  • Page 2 __________________________________________________________________________________ touch OmniaPure xs Blueline; Version as of November 2022 Subject to technical changes...
  • Page 3 __________________________________________________________________________________ touch OmniaPure xs Blueline; Version as of November 2022 Subject to technical changes...
  • Page 4 Foreword Dear Ladies and Gentlemen, The stakpure GmbH team thanks you for the trust you have placed in us. By choosing this ultrapure water system from our company, you have opted for an innovative, high- quality and durable product. Before installing and starting up your ultrapure water system, please read the installation and operating instructions in this operating manual carefully.

  • Page 5: Table Of Contents

    Table of Contents User Notes ............................7 Safety instructions ........................... 8 Intended Use ..........................10 Transport and packaging ....................... 11 Delivery package..........................12 Technical data..........................12 Flow charts ............................ 15 touch Flow chart OmniaPure xs UV-TOC ................... 15 touch Flow chart OmniaPure xs UV-TOC/UF ................
  • Page 6 Faults / Messages ........................36 18.1 Faults table ..........................36 18.2 Error messages ........................37 Disposal ............................. 39 EU declaration of conformity ....................40 __________________________________________________________________________________ touch OmniaPure xs Blueline; Version as of November 2022 Subject to technical changes...

  • Page 7: User Notes

    Symbols used Warning notices with this symbol indicate a hazard which, if not avoided, could result in death or serious injury. Warning notices with this symbol indicate a hazard which, if not avoided, could result in minor or moderate injury. This symbol indicates a risk with possible property damage.

  • Page 8: Safety Instructions

    2 Safety instructions The safety instructions described below are for your own safety and help to prevent possible damage to the OmniaPure xs system. Read the instructions before installation, commissioning and maintenance and follow them carefully. Danger of electric shock! Improper electrical supply of the OmniaPure xs system can lead to an electric shock! For the electrical supply of the OmniaPure xs system, only use the wide-range power pack included in the scope of delivery.
  • Page 9 Danger of skin and eye injuries! Contact with the disinfectant can lead to skin and eye irritation and/or injuries! Always wear appropriate protective clothing (at least gloves & goggles) when disinfecting the OmniaPure xs system to avoid contact with the disinfectant. Make sure that no disinfectant can escape uncontrolled from the OmniaPure system, check the connection hoses for correct and tight fit.

  • Page 10: Intended Use

    Depending on the country, a safety combination consisting of a backflow preventer and a system separator may have to be available on the building side. A DN 50 floor drain with free drainage is to be provided in the operating room. If there is no floor drain, we recommend using a water monitor to prevent damage to the system and equipment as well as the building.

  • Page 11: Transport And Packaging

    4 Transport and packaging The OmniaPure xs systems are carefully inspected and packaged prior to shipment, however damage may occur in transit. Check the packaging and the system for possible transport damage. If you find any damage, please contact the shipping or transport company responsible for the delivery directly. For transport, only lift the device at holding points 1, 2 and 3.

  • Page 12: Delivery Package

    5 Delivery package The scope of delivery of the OmniaPure xs system consists of the following parts: Position Number Designation touch OmniaPure xs Blueline System Table power supply 48V 120W Power cord PE hose d8 2,5m PE hose d8 incl. input protection filter and Water connection adapter R ¾“...
  • Page 13 Water connections Feed water inlet Hose AD 8mm Rinse water outlet Hose AD 8mm Threaded connection for sterile filter G1/4“ Sterile filter outlet Hose tail 6mm Electrical connection Voltage 100 – 240 VAC Frequency 50/60Hz Power consumption (max.) 120W USB interface USB socket type A Serial interface (optional) RS 232...
  • Page 14 Dimensions and Weights touch OmniaPure xs UV-TOC UV-TOC/UF Height in mm, aprox. Wide in mm, aprox. Depth in mm, aprox. Empty weight in kg approx. Operating weight kg approx. Materials of the components in contact with water Solenoid valve input POM, EPDM Flush solenoid valve POM, EPDM...

  • Page 15: Flow Charts

    7 Flow charts touch 7.1 Flow chart OmniaPure xs UV-TOC touch 7.2 Flow chart OmniaPure xs UV-TOC/UF Designation Designation Pretreatment cartridge TIA Temperature sensor TOC Ultrapure water cartridge LSZ1 Leakage sensor Sterile filter Circulation pump Hat filter (in the connection hose) Ultrafiltration module Flow meter UV Photooxidation...

  • Page 16: System Description

    8 System description 1: Detachable OptiFill dispenser with integrated control 6: Ultrapure water cartridge unit and USB port 7: UV reactor 2. Rotating dispenser arm 8: Ultrafiltration module 3: Snap closure 9: Dispenser admission 4: Removable cover hood 10: USB port 5: Space for pre-treatment cartridge (not in the picture) __________________________________________________________________________________...

  • Page 17: System Connections On The Back

    8.1 System connections on the back Inlet: Feed water connection Power: Power supply connection Drain: Rinse water connection RS232: Connection for data printer 1: Connection accessories flow (Option) 2: Connection accessories return 9 Function description The systems of the OmniaPure xs series prepare pre-treated water into ultrapure water by using several treatment technologies.

  • Page 18: Assembly

    10 Assembly 10.1 Operating environment When selecting the installation location, observe the following requirements: The pressure of the feed water must be between 0.5 and 6 bar. The standing surface must be level. A suitable protective contact socket must be available for the electrical supply of the OmniaPure xs system (see technical data).
  • Page 19 Use the connection accessories to connect the OmniaPure xs system to the feed water connection and to the free drain. Observe the requirements for the feed water (see technical data). Connect the connection hose with integrated hat filter with its R3/4" internal thread to the house feed water connection.
  • Page 20 Finally, open the shut-off valve on the building's feed water connection. Check the hose connections for leaks. Remove the cover of the OmniaPure xs system and place the pretreatment cartridge in the right slot and the ultrapure water cartridge in the left slot. Connect the cartridges with the quick-release couplings by pushing them on.

  • Page 21: Wall Mounting

    10.3 Wall mounting Risk of injury from falling and crushing! The OmniaPure xs system may only be attached to a suitable wall using the optionally available wall holder. Use the wall mount exclusively for the OmniaPure xs system. Make sure that the wall and the fastening material have a sufficient load-bearing capacity of at least 100kg.
  • Page 22 The next step is to attach the wall holder rail to the wall. This requires 6 holes with a diameter of 8mm and a depth of at least 60mm. Drill the holes according to the pattern shown in the "Wall Mount Rail" figure below. Pay attention to a horizontal alignment. Wall mount rail Then insert the dowels into the drilled holes and fasten the wall mounting rail to the wall with the screws so that the two mounting holes are facing upwards.

  • Page 23: Operating Concept

    11 Operating concept The Omnia devices are operated using the three buttons below the display. If entries are required in the respective menus, an ESC and Enter key also appear as touch keys on the screen. You get to the menus by "swiping", if you push the main display up, you get to the customer menu. All other conductivities including limit value and temperature of the corresponding measuring cell, operating hours (pumps, UV) are displayed there.

  • Page 24: Navigation

    11.2 Navigation Setup menu Calibrating menu Main display System- Consumption Consumption limits display settings __________________________________________________________________________________ touch OmniaPure xs Blueline; Version as of November 2022 Subject to technical changes...

  • Page 25: Operating Concept

    11.3 Operating concept After pressing the "Change" soft key, the selected line is highlighted in red. Another value can be selected by pressing the arrow key. The input is activated with the drop key and the cursor jumps to the first digit. Use the drop button to move the cursor to the position to be changed and use the arrow keys to set the desired value.

  • Page 26: Volume Metered Water To Be Withdrawed

    11.4 Volume metered water to be withdrawed The withdrawal mode is activated by pressing the drop button, recognisable by a drop indicator under the withdrawal tap on the display. In the withdrawal display you have the option to select one of the preset withdrawal values.

  • Page 27: Client Menu

    11.5 Client menu Consumption Conductivity cartridge Conductivity Conductivity TOC Monitor UV Monitoring Replace Pumps Filter cartridge Send to Error Log RS232 Send to Disinfection __________________________________________________________________________________ touch OmniaPure xs Blueline; Version as of November 2022 Subject to technical changes...

  • Page 28: Setup Menu

    11.6 Setup menu Consumption Limits Limit value Limit value Limit value TOC Monitor Limit value Limit value Pump Pump Circulation exchange Rinsing Date&Time Change Emergency supply __________________________________________________________________________________ touch OmniaPure xs Blueline; Version as of November 2022 Subject to technical changes...

  • Page 29: Calibrating Menu

    11.7 Calibrating menu System- settings 1 Measurement System- activation settings 2 Measuring Measuring cell LF1 cell LF2 Measuring Measuring cell LF4 cell LF3 Measuring cell LF5 Monitoring Pump power Monitoring Pressure switches cell Tank Dosing level Tank control Firmware values Update Change __________________________________________________________________________________...

  • Page 30: Commissioning

    12 Commissioning As soon as the power supply to the OmniaPure xs system is established, the system starts and the system name, serial number and software version are displayed for 3 seconds. The display then changes to the main display. Start Main display Serial no.

  • Page 31: Maintenance

    13 Maintenance Regular maintenance and care of the OmniaPure xs system is required to ensure consistently good water quality. For professional and regular maintenance of the OmniaPure xs system, we recommend concluding a maintenance contract with an authorised customer service. If improper maintenance, care and repair work is carried out on the system, the warranty for this system will expire.

  • Page 32: Changing The Cartridges

    13.2 Changing the cartridges The cartridges have to be changed at regular intervals (12 months) or if the limit value you have specified is exceeded for a long time. The start of the interval is the point in time at which the respective filter cartridge was first connected to the system.

  • Page 33: Disinfection

    13.3 Disinfection To protect the OmniaPure xs system from contamination from biological deposits, disinfection should be carried out at regular intervals (12 months). For the implementation you need the disinfection kit article no.: 19200091. Risk of chemical burns! The disinfection of the OmniaPure xs system may only be carried out by appropriately qualified specialist personnel.

  • Page 34: Decommissioning & Dismantling

    14 Decommissioning & Dismantling Decommissioning and dismantling may only be carried out by authorised specialist personnel. If the OmniaPure xs system is to be decommissioned and dismantled, proceed as follows: Disconnect the system from the power supply by pulling out the mains plug Disconnect all hoses from the system connectors.

  • Page 35: Spare Parts

    15 Spare parts R+I Nr. Designation Art. no. Cap filter 31000041 Flow meter 25000070 Conductivity cell pretreatment 14180004 Conductivity cell ultrapure water 14180004 Conductivity cell TOC 14180004 LSZ1 Leakage sensor 50002819 Circulation pump 29006000 UV immersion tube 50003454 UV ballast 29000060 Inlet solenoid valve 50003160...

  • Page 36: Faults / Messages

    18 Faults / Messages 18.1 Faults table Fault Possible cause Remedy System does not start / Ensure the power supply Display does not function No or faulty power supply according to the specifications under "Technical Data". Check the hose connection of the feed water supply.

  • Page 37: Error Messages

    18.2 Error messages Error messages are flashing and shown in red on the display. If there are several errors, they are displayed one after the other. After the error has been rectified, the display goes out after approx. 15 seconds. Error messages Possible cause Remedy...
  • Page 38 Defect of the Please contact customer Measuring cell LF3 Conductivity measurement LF3 service Defect of the Please contact customer Temp. sensor LF1 Conductivity measurement LF1 service Defect of the Please contact customer Temp. sensor LF2 Conductivity measurement LF2 service Defect of the Please contact customer Temp.

  • Page 39: Disposal

    19 Disposal Stakpure ultrapure water systems are marked with a "crossed out trash can". This means that according to the European Regulation 2012/19/EU, your old electronic device may not be disposed of with normal household waste. You can hand in your old...

  • Page 40: Eu Declaration Of Conformity

    20 EU declaration of conformity __________________________________________________________________________________ touch OmniaPure xs Blueline; Version as of November 2022 Subject to technical changes...
  • Page 41 __________________________________________________________________________________ touch OmniaPure xs Blueline; Version as of November 2022 Subject to technical changes...
  • Page 42 __________________________________________________________________________________ touch OmniaPure xs Blueline; Version as of November 2022 Subject to technical changes...
  • Page 43 __________________________________________________________________________________ touch OmniaPure xs Blueline; Version as of November 2022 Subject to technical changes...
  • Page 44 GmbH Auf dem Kesseling 11 D – 56414 Niederahr Ph.: +49 2602 10673-0 Fax: +49 2602 10673-200 info@stakpure.com www.stakpure.de 50003533...
