Senix ULTRA-30 Series Quick Start Manual

Ultrasonic Distance Sensor
Voltage Output and Push-Button "Teachable"
Non-Contact
Ultrasonic
Air Distance
Measurement
Web/Loop Control
U
LTRA-30 ultrasonic dis-
tance sensors provide an
output between 0 and 10 volts
DC that is proportional to the
distance of a measured target.
The voltage output range can be
calibrated to span the distance
between any two distance "end-
points" in the sensor's range.
The slope can either increase
or decrease with distance. Both
endpoints are push-button
adjustable. It includes a sensitive
transducer and electronics in a
small threaded, rugged, anod-
ized aluminum enclosure that is
easily mounted. Typical applica-
tions measure roll diameters,
and object sizes and height.

Features

• Designed for indoor or dry
environment applications
• Standard 0-10 VDC output
has adjustable distances and
polarity
• Long range, short deadband
• High sensitivity for weak or
non-woven targets
• Simple pushbutton "teach"
setup of many features, and
calibration using actual targets
• Rear LED Status indicator
quickly identifies proper and
improper target conditions
• CE compliant for use in EU
• Output response filter for
stability with unstable targets
• Security "Lock" prevents
accidental mis-adjustment
• All in one small package!
Dimension or Sort
Push-button
"teach"

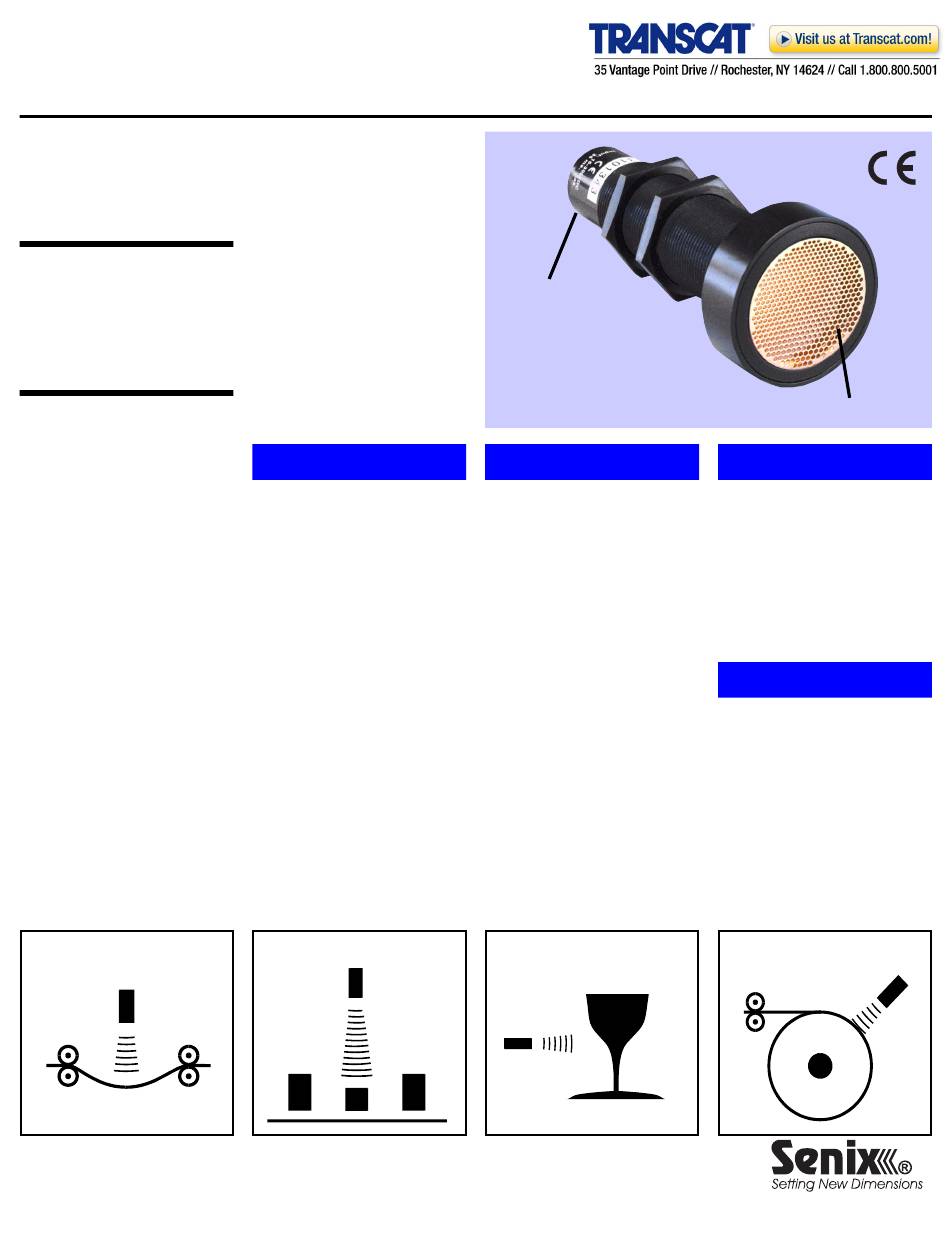

Sensitive transducer detects most materials
Easy Installation
• Simple 3-wire interface–power,
ground and voltage output
• Threaded aluminum
housing quickly bolts into a
round mounting hole
• Permanently attached 2-meter
cable
• Simple push-button TEACH
setup - no potentiometers!
• Rear pushbutton is used with
rear indicator to accomplish all
TEACH features
• Rear indicator displays target
status conditions including too
close, no target and target out
of calibrated range.
Object Detection
ULTRA-30 Series
Reliable Operation
• Detects both hard and soft
objects
• Stable outputs and output filter
options
• No light or laser beam required
• Works in the dark
• Works with optically reflective,
transparent or opaque materials
• Unaffected by target color

Models

ULTRA-30-VA
• Dual range, teach selected
• Short: 3-40 in. (76-1000 mm)
• 5-80 in. (127-2030 mm)
Long:
ULTRA-30L-VA
• Longest range version
• 6.5-180 in. (165-4572 mm)
Roll Diameter
