DORANI DORVT15 Supplementary Installation Manual

SUPPLEMENTARY MODULES INSTALLATION MANUAL

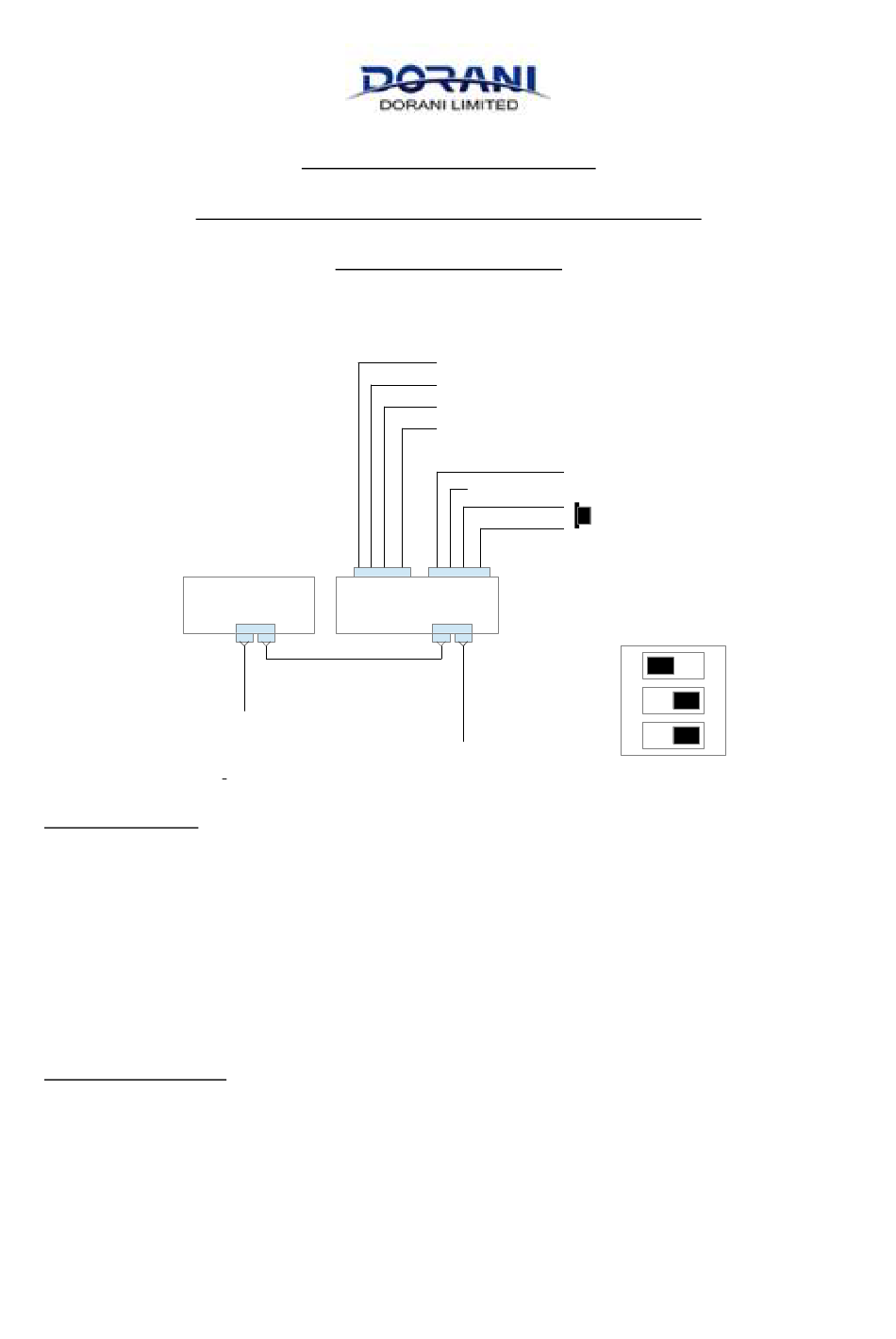

Image 12.1 Connection
If this Module is connected to a
2 Door station System, Port C or
D on the 4 Branch Controller is
used for the input of the Relay
Module
POWER SUPPLY
As Per Monitor
Connections
Images 1.1, 1.2, 2.1
Device & Settings
This device allows a secondary RELAY trigger to be activated without the need for an
additional door station. It also allows for a greater level of security if required as
triggering is done within the home.
Example: Door Station 1 - Call Release 1 = Pedestrian Gate, Release 2 = Driveway Gate
A maximum of 1 Relay Module can be added into the system.
Setting Dip Switches
The dip switch settings on the rear need to be set as per the diagram (Switch 3 = ON)
This enables the Lock release for Door 1 Release 2 on the internal monitors.
Your installation configuration should be done to enable the system to operate in this
manner.
DORANI TOUCH 2 WIRE SERIES
DORVT15: Relay Module
RELAY MODULE
(DORVT09) (DORVT12)
BUS
IM DS
As Per Door Station
Images 1.1, 1.2, 2.1
Normally CLOSED
Common
Contacts
Normally OPEN
Ground
SW2 Switch 2 (programming)
BUS
IN OUT
Connections
Relay
12V 450mA Output
SW1 Switch Input 1
Ground
Dip Switch
Setting On Rear
ON
3
2
1
