VS4X4
The NetMedia VS4X4 Video Matrix Switcher sends 4 video inputs to 4 different outputs. Each output can show a
single input or a rotating combination of inputs. The selected inputs and combinations may be the same or differ-
ent for each output. To use as a 4-way video distribution amplifier, setup Input 1 as the only source for all 4 outputs.
To setup one or more outputs as a sequencer, enable multiple inputs and select rotation mode. To setup one or
more outputs as a manual switcher, deselect rotation mode and choose the desired input.
Product Includes:

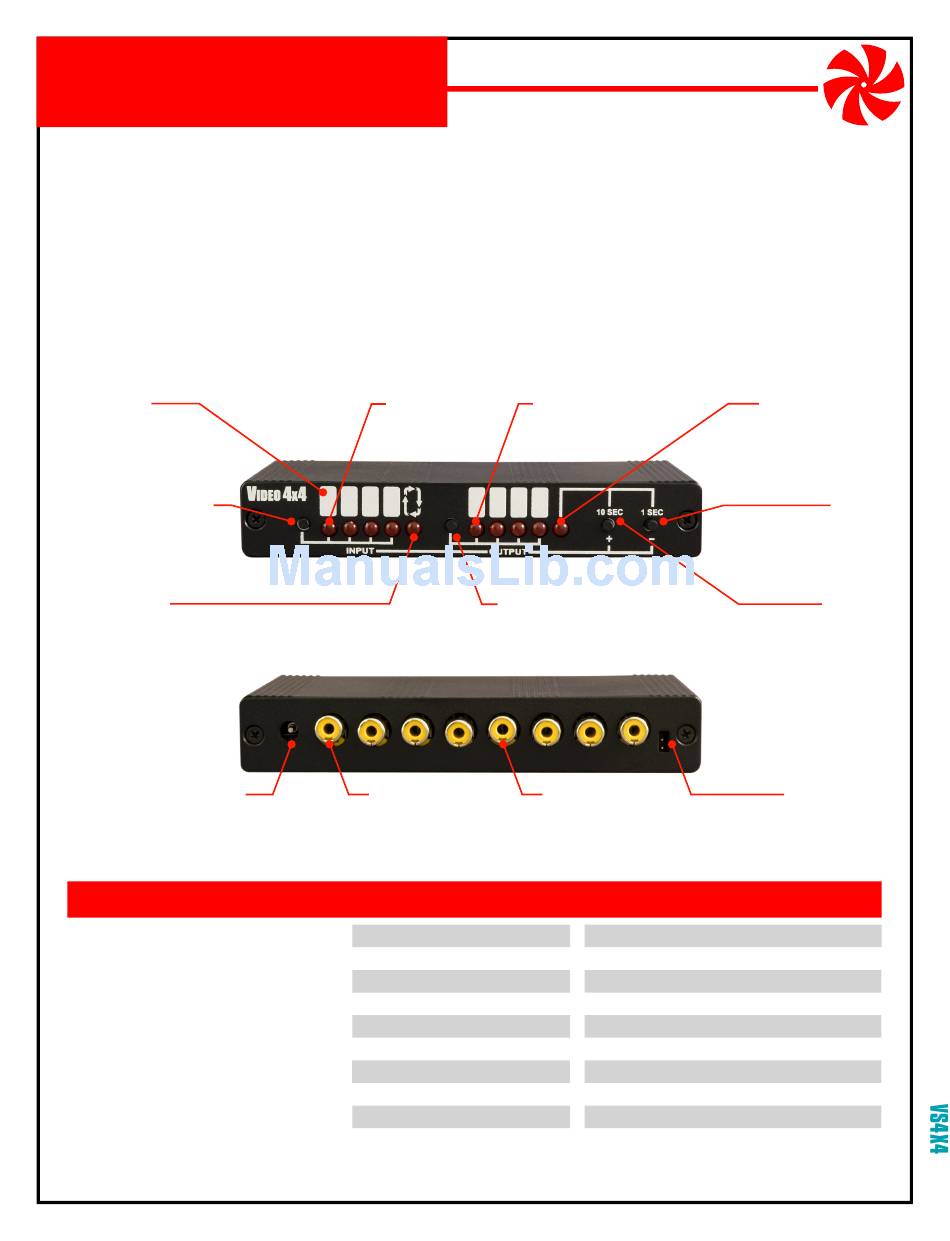

1. Video Switcher Assembly (4 Video Input Connectors, 4 Input LED's, Input Select Button,
Rotation LED, 4 Video Output Connectors, 4 Output LED's, Output Select Button, Dwell Time
LED, 10 Sec/Plus Button, 1 Sec/Minus Button, Label Area, Power Connector, Factory Pins).
2. 12V DC 300mA Power Transformer (Center Conductor Positive).
Label Area
Provides space for input
and output designators.
Input Select Button
Chooses rotation mode or
individual input to
view/enable/disable.
Rotation LED
Indicates that selected
output is in rotation mode.
Power Connector
12V DC 300mA, center positive.
FEATURES
Selects 1-4 inputs for 1-4 separate outputs
Works as video switcher or splitter
Manual or automatic switching
Microprocessor controlled
Supports NTSC or PAL in color and B/W
Setup retained during power outage
Tough aluminum housing
Includes power supply
1 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
Video Matrix Switcher
4 inputs with 4 programmable outputs
Input 1 LED
Output 1 LED
Indicates the selected
Indicates the selected
input and its status.
output and its status.
Output Select Button
Selects output to
program/enable/disable.
Video Output 1
Connects output device for
Output 1 LED
(2,3,4 follow).
SPECIFICATIONS
Dwell Time:
Video Bandwidth:
Video Crosstalk:
Video Output Connectors:
Video Input Connectors:
Power Requirement:
Power Connector:
Housing Size:
Weight:
disables inputs and outputs.
Video Input 1
Connects input device for
Input 1 LED
(2,3,4 follow).
1 to 255 seconds
12MHz
-70 db
4 - Female RCA, 75 Ohm
4 - Female RCA, 75 Ohm
12V DC, 300mA
5.5mm OD, 2.1mm ID, center positive
5.5" long x 3.5" wide x 0.9" high
8.5 oz.
Dwell Time LED
Lights for 10 sec after
Rotation LED selected to
set dwell time.
1 Sec/
Minus Button
Adds 1 sec to dwell time or
10 Sec/
Plus Button
Adds 10 sec to dwell time or
enables inputs and outputs.
Factory Pins
For factory use only.
(subject to change without notice)
MAN-VS4X4
REV0705A
