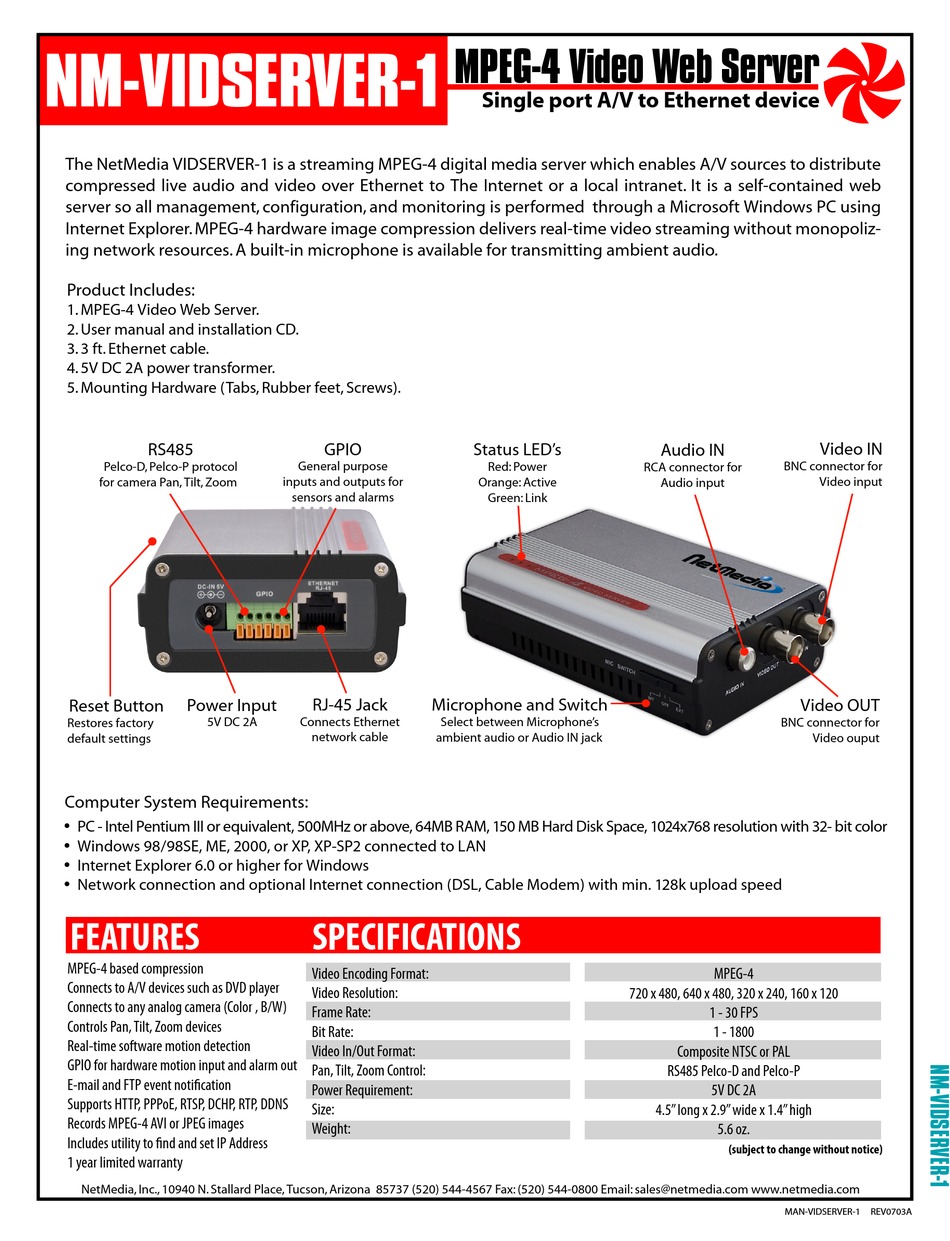

NetMedia NM-VIDSERVER-1 Specifications

NM-VIDSERVER-1
The NetMedia VIDSERVER-1 is a streaming MPEG-4 digital media server which enables A/V sources to distribute
compressed live audio and video over Ethernet to The Internet or a local intranet. It is a self-contained web
server so all management, configuration, and monitoring is performed through a Microsoft Windows PC using
Internet Explorer. MPEG-4 hardware image compression delivers real-time video streaming without monopoliz-
ing network resources. A built-in microphone is available for transmitting ambient audio.
Product Includes:
1. MPEG-4 Video Web Server.
2. User manual and installation CD.
3. 3 ft. Ethernet cable.
4. 5V DC 2A power transformer.
5. Mounting Hardware (Tabs, Rubber feet, Screws).
RS485
Pelco-D, Pelco-P protocol
for camera Pan, Tilt, Zoom
Reset Button Power Input
5V DC 2A
Restores factory
default settings
Computer System Requirements:
 PC - Intel Pentium III or equivalent, 500MHz or above, 64MB RAM, 150 MB Hard Disk Space, 1024x768 resolution with 32- bit color
 Windows 98/98SE, ME, 2000, or XP, XP-SP2 connected to LAN
 Internet Explorer 6.0 or higher for Windows
 Network connection and optional Internet connection (DSL, Cable Modem) with min. 128k upload speed
FEATURES
MPEG-4 based compression
Connects to A/V devices such as DVD player
Connects to any analog camera (Color , B/W)
Controls Pan, Tilt, Zoom devices
Real-time software motion detection
GPIO for hardware motion input and alarm out
E-mail and FTP event notification
Supports HTTP, PPPoE, RTSP, DCHP, RTP, DDNS
Records MPEG-4 AVI or JPEG images
Includes utility to find and set IP Address
1 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
MPEG-4 Video Web Server
GPIO
General purpose
inputs and outputs for
sensors and alarms
RJ-45 Jack Microphone and Switch
Connects Ethernet Select between Microphone's
network cable ambient audio or Audio IN jack
SPECIFICATIONS
Video Encoding Format:
Video Resolution:
Frame Rate:
Bit Rate:
Video In/Out Format:
Pan, Tilt, Zoom Control:
Power Requirement:
Size:
Weight:
Single port A/V to Ethernet device
Status LED's
Red: Power RCA connector for
Orange: Active
Green: Link
720 x 480, 640 x 480, 320 x 240, 160 x 120
Video IN
Audio IN
BNC connector for
Video input
Audio input
Video OUT
BNC connector for
Video ouput
MPEG-4
1 - 30 FPS
1 - 1800
Composite NTSC or PAL
RS485 Pelco-D and Pelco-P
5V DC 2A
4.5" long x 2.9" wide x 1.4" high
5.6 oz.
(subject to change without notice)
MAN-VIDSERVER-1 REV0703A
