Basalte CORE PLUS Installation Manual

CORE PLUS
Installation Manual
Description

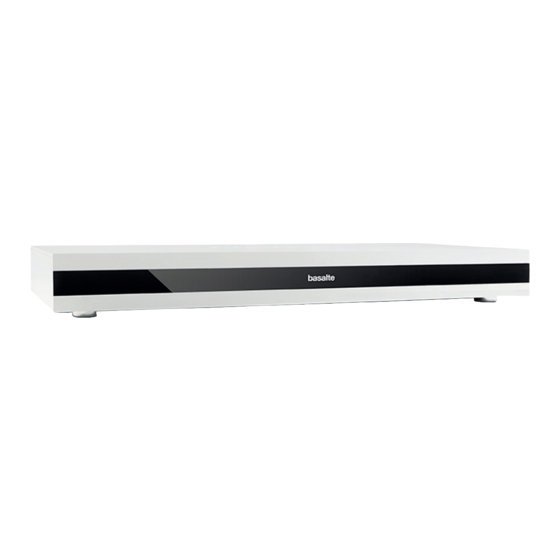

The Basalte Core Plus server is at the heart of the Basalte Home visualisation. It offers a comprehensive
functionality set for KNX home automation systems: from light & shade control over the native integration of
third-party solutions like Philips Hue to door phones, AV gear and more. The built-in logic functions allow to
create home automation sequences. Connect the Core Plus to the Asano multiroom amplifiers using audio
network and use the 4 streams to play your music library, internet radio and streaming services in any room.
Basalte Studio allows you to fully configure all Core's functionalities whilst the end-user can take full control
with the intuitive Basalte App.

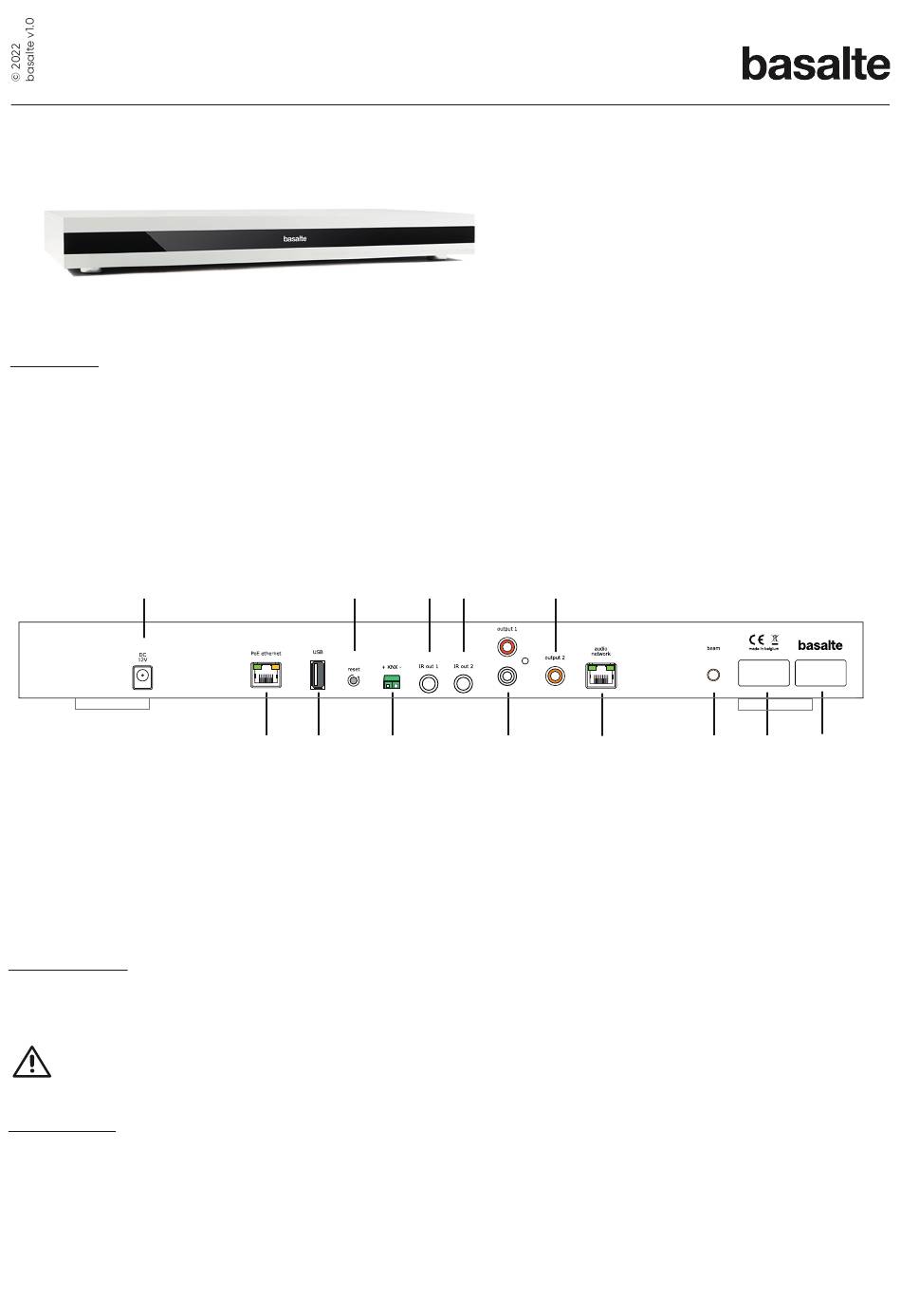

1
1 Power supply (12V DC)
2 Ethernet LAN port (PoE)
3 USB port
4 Service button
5 KNX bus coupler (connector provided)
6 IR out 1 (tripple IR No. 0729-12, emitter included)
7 IR out 2 (tripple IR No. 0729-12, emitter included)
How to start up
After initial power-up, Core Plus needs to be configured using Basalte Studio.
For more information, please refer to the software manual.
Connect the DC plug to the Core Plus before connecting the AC/DC Power Supply unit to the mains.
LED feedback
The Core Plus front panel has a feedback LED , which indicates following statuses:
• Blue: start-up – no music available
• White: normal operation mode
• Green: new software update, will be installed overnight
• Orange: software upgrade ongoing – do not turn the power off
• Red: failure detected, make sure the Core has an active network and internet connection and refer to the
Basalte App settings (> About > Status) where more context about the fault code will be displayed.
4 6
2 3 5
Before operating the unit, please read this
manual thoroughly and retain it for future
reference.
Model No. 790-14
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
7 9
8
10
8 Analog output (RCA)
9 Digital output S/PDIF (coaxial)
10 Audio network
11 Beam antenna
12 Programming key and Mac address
13 Serial number
12
11 13
