NM-POCSET
The NetMedia Power over Coax PoC Video Encoder and Decoder modules allow popular 12V DC cameras to use one coax
cable, such as RG6, for both power and video. There is no need to run multiple cables to the camera location! The modules
support cable distances up to 100 feet. To view the video, use a security monitor or the composite RCA Video Input jack of
a television.
Product Includes:
1. NetMedia PoC Video Encoder module.
2. NetMedia PoC Video Decoder module.
3. 24V DC 200mA Power Transformer.
3. Power Extension Cable and two RCA Video Cables.

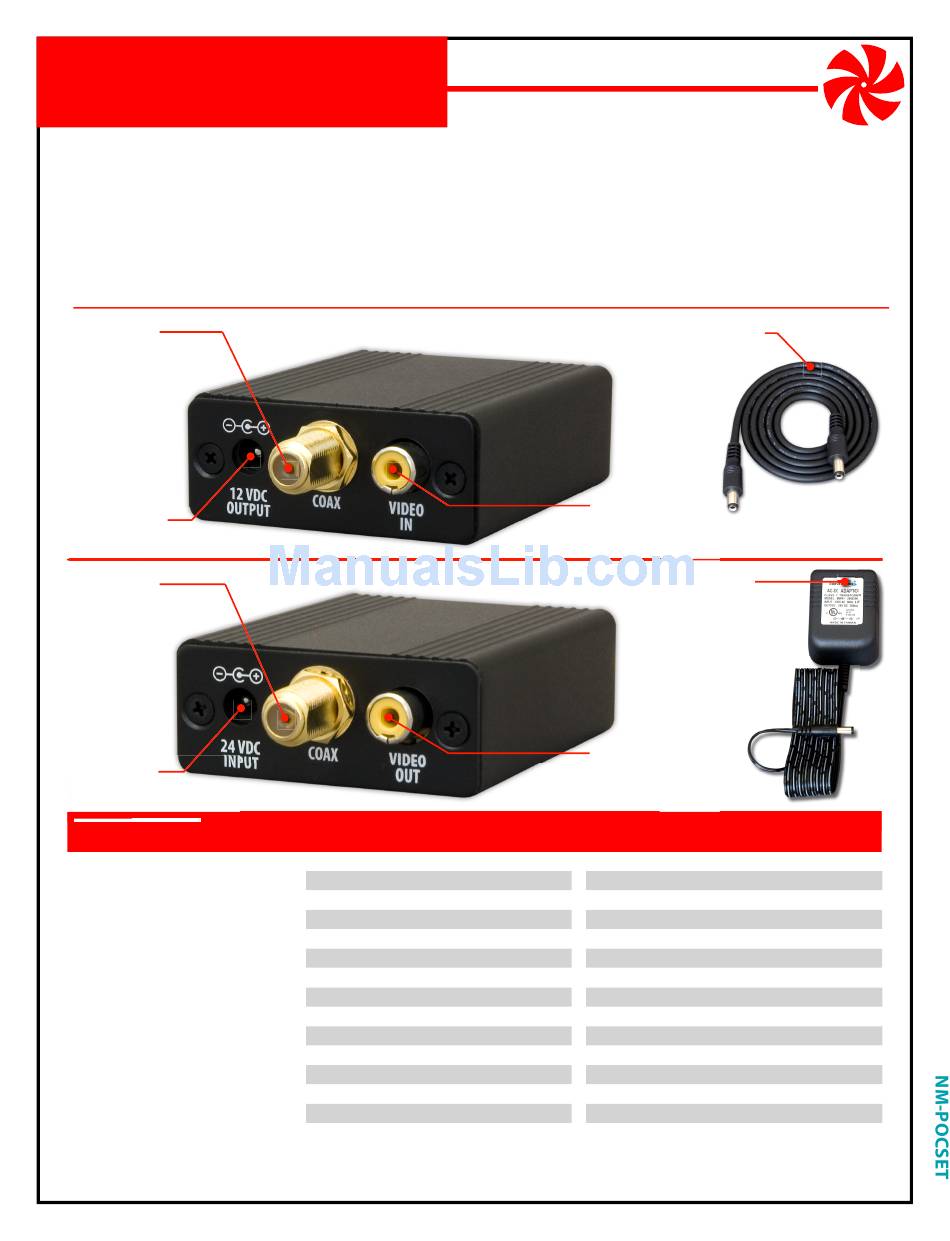

F-Connector
Connects to Decoder
F-Connector via coax cable.
Power Output
Provides 12V DC 150mA
power for camera.
F-Connector
Connects to Encoder
F-Connector via coax cable.
Power Input
Uses 24V DC from included
Power Transformer.
FEATURES
FEATURES
FEATURES
One Wire Video™ Installation
Supports popular color and B/W cameras
Provides remote 12V DC 150mA power
Uses one coax for power and video
Uses pre-existing coax cable
Supports up to 100 ft with color and B/W
Supports standard F-connectors
Sturdy aluminum boxes
Includes power supply
1 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
PoC Encoder/Decoder Set
Video and Power Transmission Device
PoC Video Encoder
PoC Video Decoder
SPECIFICATIONS
Input/Output Video Connector:
Input/Output Video Signal:
Encoder/Decoder Video Connector:
Encoder/Decoder Video Signal:
Encoder/Decoder Cable Type:
Encoder/Decoder Cable Distance Range:
PoC Encoder Size:
PoC Encoder Weight:
PoC Encoder Power Output:
PoC Encoder Power Connector:
PoC Decoder Size:
PoC Decoder Weight:
PoC Decoder Power Input:
PoC Decoder Power Connector:
Power Extension Cable
Connects to 12V DC power
input of camera.
RCA Video In
Connects to video
output of camera.
Power Transformer
Connects to 24V DC Power
Input of Decoder and AC outlet.
RCA Video Out
Connects to viewing
device such as monitor,
device such as monitor,
DVR, TV, or modulator.
Female RCA
Composite
Female F-Connector
Proprietary
Coax: RG6 quad shield recommended
Up to 100'
3.2" long, 2.2" wide, 0.9" thick
3 oz.
12V DC, 150mA
5.5mm OD, 2.1mm ID, center positive
3.2" long, 2.2" wide, 0.9" thick
3 oz.
24V DC, 200mA
5.5mm OD, 2.1mm ID, center positive
(subject to change without notice)
MAN-POCSET
REV0703A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for NetMedia NM-POCSET
Summary of Contents for NetMedia NM-POCSET
- Page 1 NM-POCSET The NetMedia Power over Coax PoC Video Encoder and Decoder modules allow popular 12V DC cameras to use one coax cable, such as RG6, for both power and video. There is no need to run multiple cables to the camera location! The modules support cable distances up to 100 feet.
-
Page 2: Installation Procedures
NM-POCSET Installation Procedures: 1. Connect a coax cable (RG6 recommended) to the F-Connectors of the Video Encoder and Decoder. Each Encoder/Decoder pair needs a dedicated point-to-point wiring circuit. Do not connect the Encoder/Decoder coax to other video distribution equipment! Doing so could damage this product and/or the other attached devices! 2. -
Page 3: One Year Limited Warranty
Type of Equipment: Power over Coax Video Encoder and Decoder Set Model: NM-POCSET to which this declaration relates are in conformity with the Title 47 of the US Code of Federal Regulations, Part 15 covering Class B digital devices. -
Page 4: Frequently Asked Questions
Q-Can I connect the coax between the modules to video distribution equipment? A- NO! Do not connect the F-Connector coax of the Video Encoder or Decoder other video equipment! Doing so could damage this product and/or the other attached devices! The Decoder ouputs DC voltage on the coax that other equipment may not be prepared to handle.
