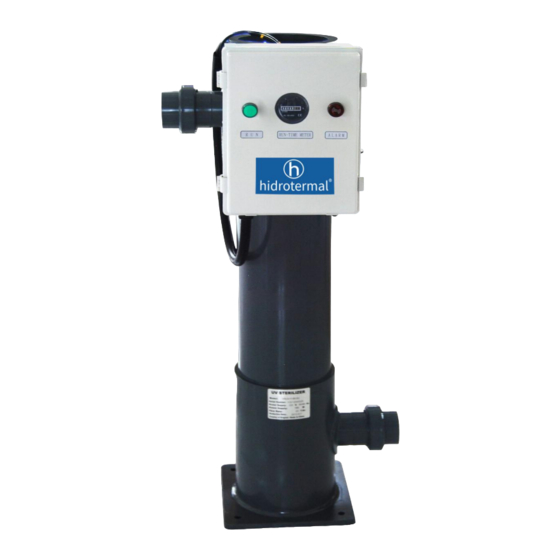

Summary of Contents for Hidrotermal UV-Y80W(2U/40W)

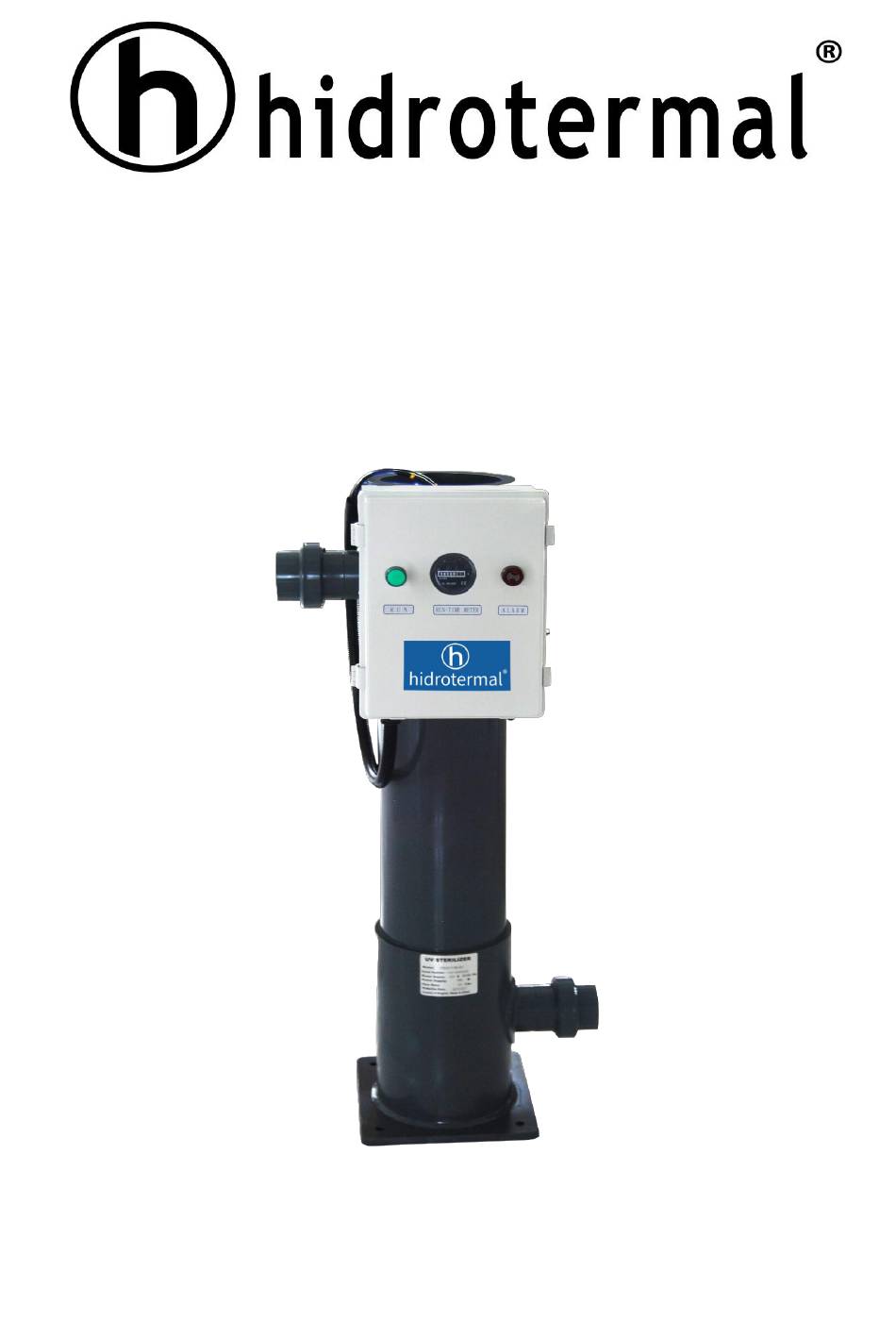

- Page 1 UV-Y Disinfection Systems Swimming UV-Y Sterilizer USER MANUAL...
- Page 2 Y Series UV Sterilizer Specifications Y Series UV Sterilizer Flow rate Reactor Size Lamp Qty. Total (mm) (30mj/cm Model Inlet/Outlet watts Lamps Power UV-Y80W(2U/40W) Ф63mm(2") 445 1103 UV-Y120W(3U/40W) 120W Ф63mm(2") 445 1103 UV-Y160W(4U/40W) 160W Ф75mm(2.5") 458 1162 UV-Y200W(5U/40W) 200W Ф110mm(4") 548 1180 UV-Y240W(6U/40W) 240W...
- Page 3 1. Installation 1.1 Feature 1．Water cooling for ballasts installed inside the cover hat of chamber. 2．Water right rate: IP56 3．Outdoor and indoor installation available 4．Start up and off according the signal from flow switch. 5. Easily installation and simple maintenance. 1.2 Installation of UV sterilizer The UV sterilizer should be placed Vertically.
- Page 4 2. Instructions of Operating & Maintenance 2.1 Caution: Be sure to unplug the unit before performing any work on the sterilizer 1. Regularly inspect your sterilizer unit to ensure that the UV lamp working properly. If the UV lamp fails, the audio and visual alarm will be triggered. 2．Screw out the waterproof connector , and take out the fault lamp.
