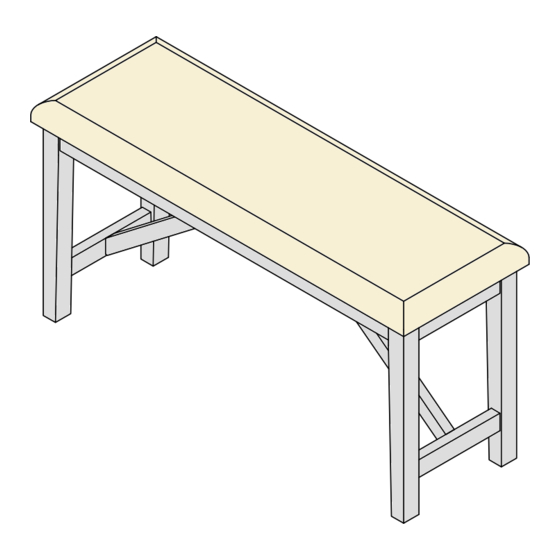

Furniture of America CM3344PBN Assembly Instructions

For more information contact our team: service.ec@foagroup.com

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

Assembly Instructions

CM3344

DIFFICULT

PBN

Tools Required For Assembly:

Allen Wrench

Phillips Screwdriver

2 PERSONS RECOMMENDED

Page 1 of 5

(Included)

(Not Included)

Rev: 18-06-30

Table of Contents

Do you have a question about the CM3344PBN and is the answer not in the manual?

Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM3344 ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that Allen Wrench shows the degree of effort needed in (Included) assembling a specific product (with 1 being easy and 5 being difficult).
Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 5...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc #A x 8pcs Cushion Seat Bolt Ø1/4"x2-1/4" #2 x 4pcs #B x 4pcs Leg(L&R) Bolt Ø1/4"x1-3/8"...
Page 4 Align side stretchers (#3) to the holes of the legs (#2R/L), then secure legs (#2R/L) to the cushion seat (#1) by using bolts (#A) with washers (#C,D). #A x 8pcs #C x 8pcs #D x 8pcs Secure side stretchers (#3) on the legs (#2R/L) by using screws (#G). #G x 4pcs Page 4 of 5...
Page 5 Align cross bars (#4) to the holes of the stretchers (#3) and cushion seat (#1), then secure by using bolts (#B) with washers (#C,E). #B x 4pcs #C x 4pcs #E x 4pcs ASSEMBLY IS COMPLETED Page 5 of 5...
