Minarik 200-0416 Quick Start Manual

An American Control Electronics Brand
Specifications
Power Requirements
AC Line Voltage ......................................................115/230 VAC ± 10%, 50/60 Hz, single phase
Input Signal Ranges
Voltage Signal, Narrow Range ...............................................................................-25 to 25 VDC
Voltage Signal, Wide Range ...............................................................................-250 to 250 VDC
Current Signal .................................................................................1-5 mA, 4-20 mA, 10-50 mA
Input Impedance
Voltage Signal ............................................................................................................>25K ohms
Current Signal, 1-5 mA ..................................................................................................1K ohms
Current Signal, 4-20 mA ..............................................................................................235 ohms
Current Signal, 10-50 mA ............................................................................................100 ohms
Output
Voltage Range .......................................................................................................-10 to 10 VDC
Linearity .............................................................................................................................0.01%

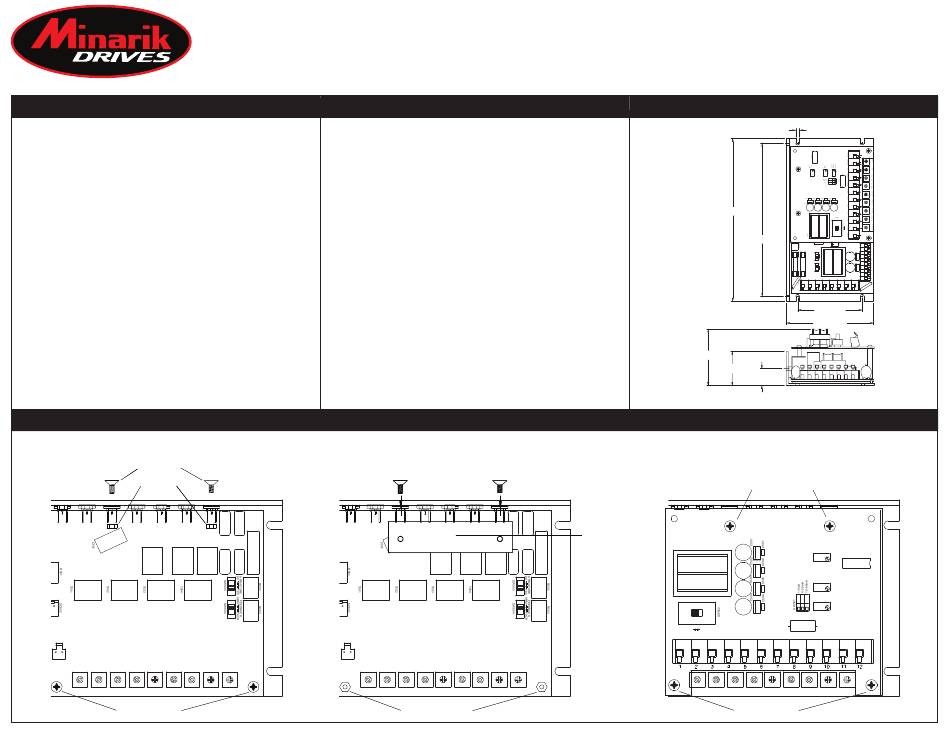

Step 1: Remove the 2 SCR screws and the 2 hex nuts on the base RGx00 unit.
Step 2: Remove the 2 PC board screws to the left and right of the calibration trim pots on the base
RGx00 unit.
SCR SCREWS
HEX NUTS
SCR502 SCR503 SCR504 SCR505 SCR506 SCR507
R504 R505
UN
SO501
INHIBIT
P501 P502 P503 P504 P505 P506 P507
FWD TQ
MIN SPD REV TQ IR COMP MAX SPD FWD ACC REV ACC
PC BOARD SCREWS
200-0416
4Q Isolation Adder Card
for RGx00 Series Drives
READ ALL SAFETY WARNINGS BEFORE INSTALLING THIS EQUIPMENT
• DO NOT INSTALL, REMOVE, OR REWIRE THIS EQUIPMENT WITH POWER APPLIED. Have a
• qualified electrical technician install, adjust and service this equipment. Follow the National
• Electrical Code and all other applicable electrical and safety codes, including the provisions of the
• Occupational Safety and Health Act (OSHA), when installing equipment.
• Circuit potentials are at 115 or 230 VAC above earth ground. Avoid direct contact with the printed
• circuit board or with circuit elements to prevent the risk of serious injury or fatality. Use a non-
• metallic screwdriver for adjusting the calibration trim pots. Use approved personal protection
• equipment and insulated tools if working on this drive with power applied.
• Reduce the chance of an electrical fire, shock, or explosion by using proper grounding techniques,
• over-current protection, thermal protection, and enclosure. Follow sound maintenance procedures.
• Minarik Drives strongly recommends the installation of a master power switch in the line voltage
• input. The switch contacts should be rated for 250 VAC and 200% of motor nameplate current.
• Removing AC line power is the only acceptable method for emergency stopping. Do not use
• regenerative braking, decelerating to minimum speed, or coasting to a stop for emergency stopping.
• They may not stop a drive that is malfunctioning. Removing AC line power is the only acceptable
• method for emergency stopping.
• Line starting and stopping (applying and removing AC line voltage) is recommended for infrequent
• starting and stopping of a drive only. Regenerative braking, decelerating to minimum speed, or
• coasting to a stop is recommended for frequent starts and stops. Frequent starting and stopping can
• produce high torque. This may cause damage to motors.
• Do not disconnect any of the motor leads from the drive unless power is removed or the drive is
• disabled. Opening any one lead while the drive is running may destroy the drive.
• Under no circumstances should power and logic level wires be bundled together.
• Be sure potentiometer tabs do no make contact with the potentiometer's body. Grounding the
• input will cause damage to the drive.
Step 3: Fasten the braket to the chassis using the SCR screws. The bracket's short standoffs replace
the two hex nuts removed in step 1. Screw in the 1.75 inch standoffs to the regenerative drive PC
board.
C510
SCR508 SCR502 SCR503
C509
C507
R506
C508
C506
UN
SO501
INHIBIT
P508 P509 P501
FWD TQ
DB TACH MIN SPD
Safety Warnings
Installation
C510
509
C507
508
C506
P502 P503 P504 P505 P506 P507 P508 P509
REV TQ IR COMP MAX SPD FWD ACC REV ACC DB TACH
1.75 INCH STANDOFFS
14300 De La Tour Drive
Phone: (815) 624-2745
www.minarikdrives.com
Dimensions
8.90 [226]
8.40 [213]
3.07 [78]
1.85 [47]
0.92 [23]
ALL DIMENSIONS IN INCHES [MILLIMETERS]
Step 4: Mount the PCM board above the bracket and 1.75 inch standoffs. Secure the PCM board with
four PC board screws; two unscrewed from the regenerative drive PC board in Step 2 and two included
in the PCM board hardware kit.
PC BOARD SCREWS
BRACKET
T501
IC502
IC503
IC504
INPUT VOLTAGE SELECT
115 230
OUT 1 OUT 2 L1 L2 -15 +15
FWD TQ
MIN SPD REV TQ IR COMP
PC BOARD SCREWS
South Beloit, IL 61080
•
Fax: (815) 624-6334
•
0.19 [5]
T505
SW502 C502
IC501
FU501 FU502
FAST ACTING
FUSES ONLY
L1 L2
IC502
SW501 C503
TB501
TB502
C505
L1 L2 L2 GND F1 F2 A2 A1
230V 115V
3.50 [89]
4.78 [121]
MAX
OUT IC505
P502
MIN
OUT
P503
1 2 3
SIGNAL
INPUT
ADJUST
P501
R501
COM INPUT 1 INPUT 2 TP POL REV COM
MAX SPD FWD ACC REV ACC DB TACH
