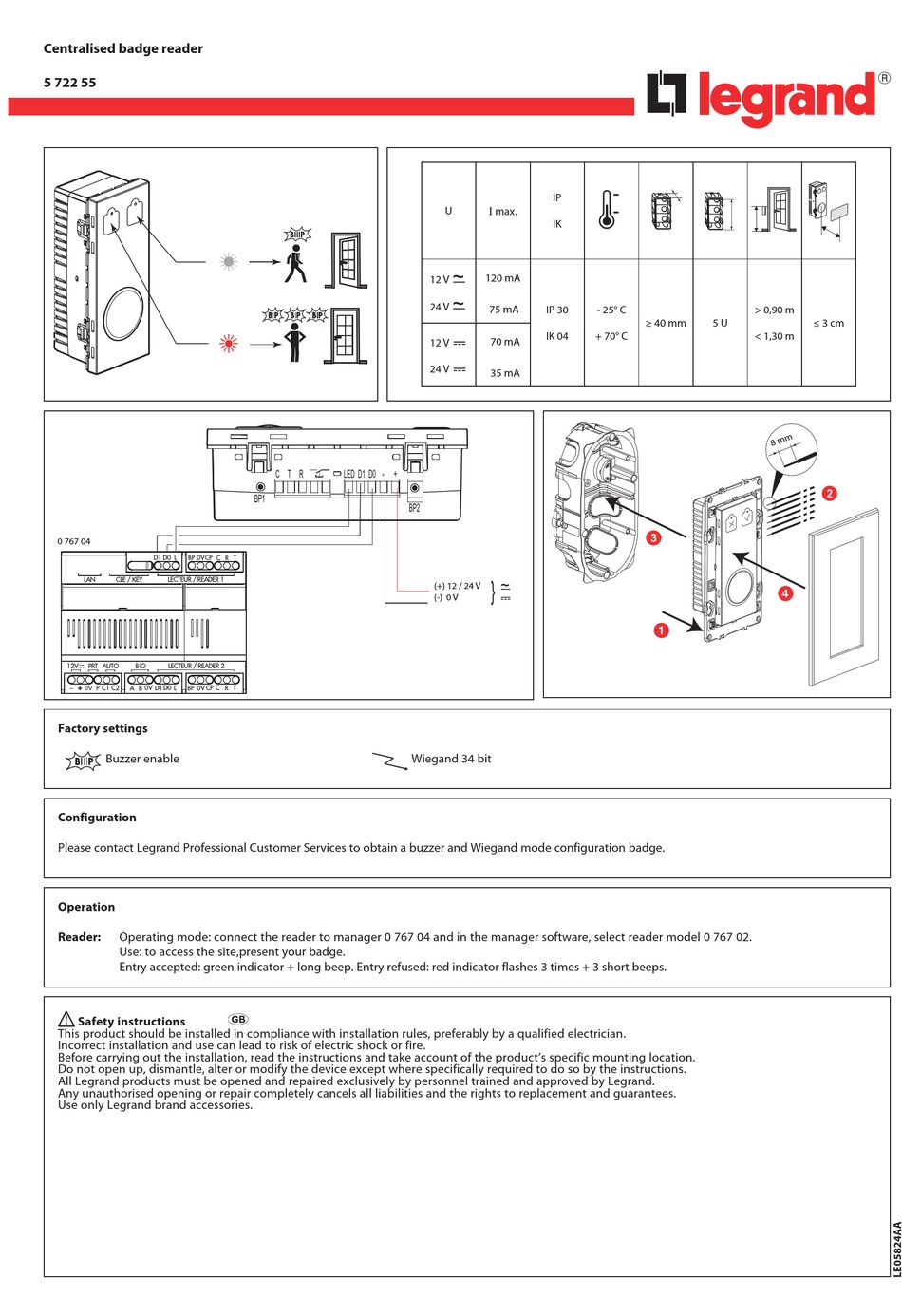

Centralised badge reader

Advertisement

Centralised badge reader
5 722 55
~
~
0 767 04
Factory settings
C
Buzzer enable
R
T
~

Configuration

Please contact Legrand Professional Customer Services to obtain a buzzer and Wiegand mode configuration badge.

Operation

Reader:
Operating mode: connect the reader to manager 0 767 04 and in the manager software, select reader model 0 767 02.
Use: to access the site,present your badge.
Entry accepted: green indicator + long beep. Entry refused: red indicator flashes 3 times + 3 short beeps.

Safety instructions

This product should be installed in compliance with installation rules, preferably by a qualified electrician.
Incorrect installation and use can lead to risk of electric shock or fire.
Before carrying out the installation, read the instructions and take account of the product's specific mounting location.
Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions.
All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand.
Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees.
Use only Legrand brand accessories.
12 V
24 V
12 V
24 V
C T R
LED D1 D0 - +
BP1
BP2
Wiegand 34 bit
~
~
~
IP
C
C
Ι max.
U
R
T
R
IK
~
120 mA
~
75 mA
IP 30
- 25° C
~
IK 04
+ 70° C
70 mA
~
35 mA
~
(+) 12 / 24 V
(-) 0 V
C
R
T
T
> 0,90 m
≥ 40 mm
5 U
< 1,30 m
3
4
1
C
C
R
R
≤ 3 cm
2
