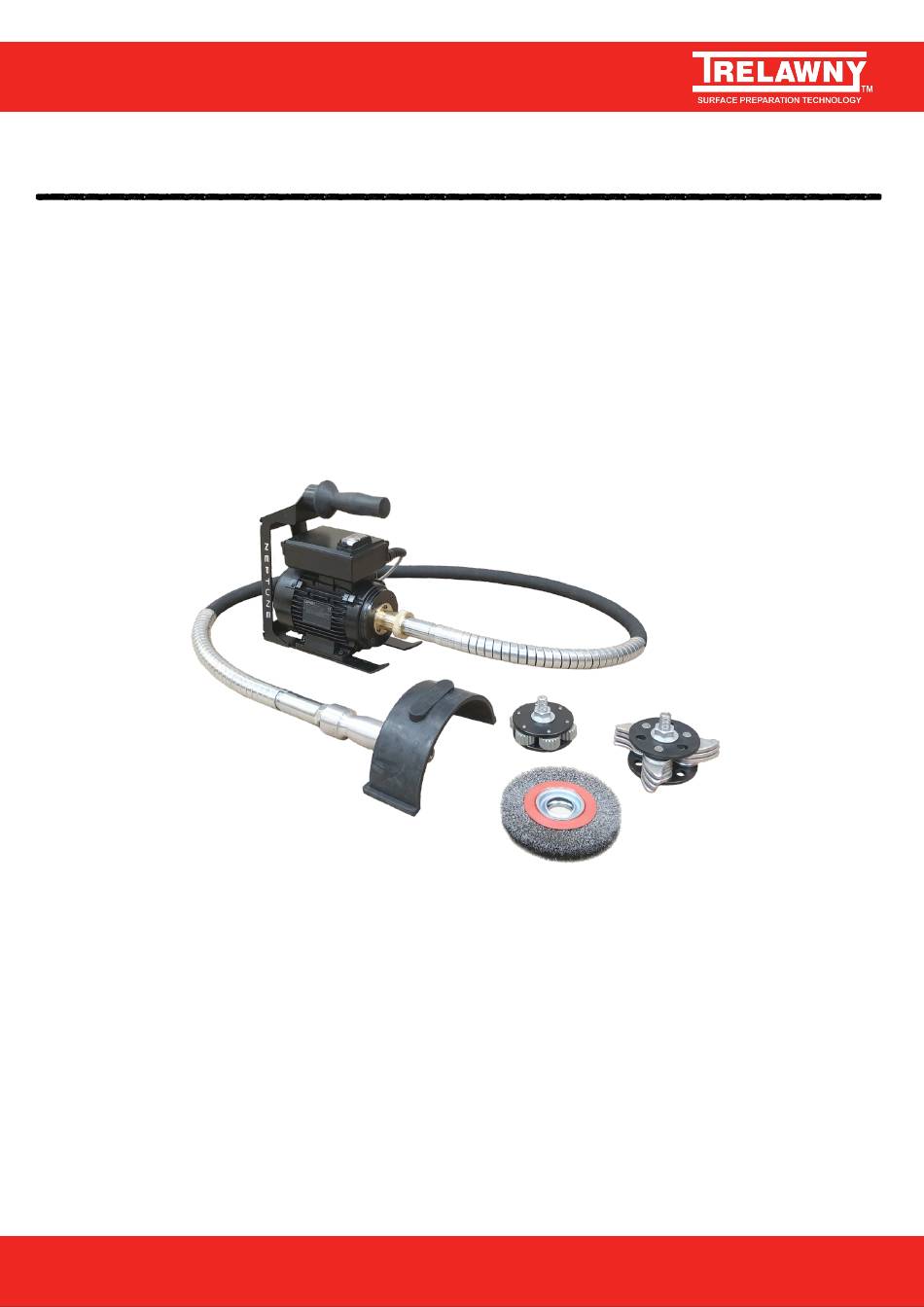

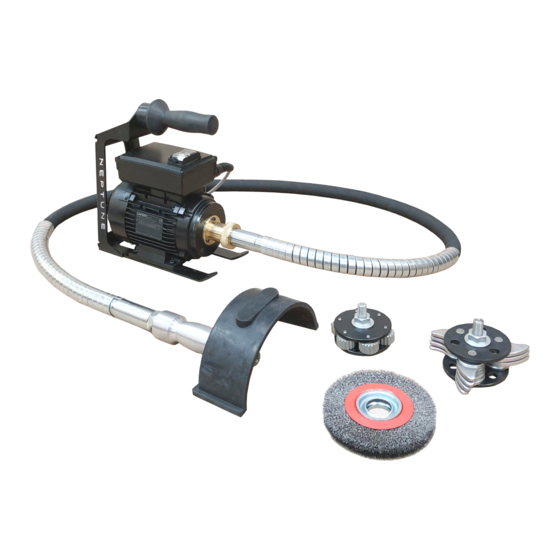

- Page 1 Trident neptune operations and maintenance manual www.trelawny.co.uk www.trelawny.co.uk...
-
Page 2: Table Of Contents
TRIDENT NEPTUNE CONTENTS Introduction ................................3 Declaration of Conformity ............................. 4 Foreword ..................................6 General Information ..............................6 Safety ..................................... 6 Risk of Hand Arm Vibration ..........................7 Cutter Types and Applications ........................... 7 Maintenance ................................8 Machine Storage ............................... 8 Assembly .................................. -
Page 3: Introduction
INTRODUCTION Your new Trelawny SPT power tool will more than satisfy your expectations. It has been manufactured under stringent Trelawny SPT Quality Standards to meet superior performance criteria. You will find your new tool easy and safe to operate, and, with proper care, it will give you many years of dependable service. - Page 4 TRIDENT NEPTUNE DECLARATION OF CONFORMITY PAGE 4...
-
Page 5: Declaration Of Conformity
DECLARATION OF CONFORMITY www.trelawny.co.uk... - Page 6 73/23/EC DIREKTIVA O STROJIH Z NIZKO VOLTAŽO (nanaša se samo na proizvode na električni pogon) MEGFELELŐSÉGI NYILATKOZAT UYGUNLUK BEYANI Mi. A "Trelawny SPT Limited" cég Trelawny SPT Limited Felelösségünk tudatában kijelentjük, hogy mint a termék szállitója/gyartója AÞaöýdaki, üretim ve tedarikinden tek baÞýna sorumlu olduöu ürünün Termék neve...
-
Page 7: Foreword
FOREWORD Thank you for your purchase of the Trelawny Trident Neptune is essential for you to read through these manuals thoroughly. De-Scaling Machine. This manual contains the necessary In the unlikely event that you experience problems with your maintenance information for you to ensure proper operation Trident Neptune please do not hesitate to contact your local and care for this machine. -
Page 8: Risk Of Hand Arm Vibration
(10) (left-hand thread) and draw apart. Fit locking cap (2) to front of dumbbell TRIDENT NEPTUNE handle ensuring that the recessed holes Ball Race Removal are on the exposed side to enable Unscrew front cap (2) with special tool locking with special tool provided. -
Page 9: Maintenance
Cover the machine to protect it. Store the machine in a dry place. Be sure to check the security of all fastenings after any lay up period. www.trelawny.co.uk... -
Page 10: Assembly
TRIDENT NEPTUNE assembly Ensure all parts are clean. If the scaler is being fully serviced, Cutter Wheels replace all ball races. Secure centre bolt (28) head in vice vertically and fit bottom side plate (31). Insert the cutter wheels (35) with pins (36) Fitting the Nose Piece into holes in the plate. -
Page 11: Exploded
EXPLODED DIAGRAM MAINTENANCE www.trelawny.co.uk... -
Page 12: Parts List
Air Motor (inc base) 340.288 Inner Shaft Trident Neptune Nose Piece 340.TN/3A Mounting Plate 340.TN/7 Trident Neptune Handle 831.1250 M12 x 50 Hex Bolt 812.0500 1/2” Plain Washer 340.TN/8 Trident Neptune Frame & Skid 717.3055 Trelawny Grip 824.0600 M6 Nyloc PAGE 12... - Page 13 MAINTENANCE www.trelawny.co.uk...
- Page 14 TRIDENT NEPTUNE parts list Item NO. PART NO. DESCRIPTION Item NO. PART NO. DESCRIPTION Centre bolt kit - 6 Cutter Scaling Head 340.581/A 340.163 6” Twisted Knot Power Brush (inc 29, 30) 340.160A Hexagon Nut 340.584 Washer Not Shown in Exploded View Side Plate for 6 Cutter Scaling Head 340.575/2...
-
Page 15: Technical Specification
All rights reserved. Any unauthorised use or copying of the contents or part thereof is prohibited. This applies to trademarks, model denominations, part numbers and drawings. Use only genuine Trelawny spares. The use of non-Trelawny spare parts invalidates the warranty. - Page 16 Trelawny House, 13 Highdown Road, Sydenham Industrial Estate, Leamington Spa, Warwickshire, CV31 1XT, United Kingdom Leamington Spa, Warwickshire, CV31 1XT, United Kingdom Telephone: +44 (0)1926 883781 Fax: +44 (0)1926 450352 Email: sales@trelawny.co.uk Website: www.trelawny.co.uk Telephone: +44 (0)1926 883781 Fax: +44 (0)1926 450352 Email: sales@trelawny.co.uk...
