Summary of Contents for HyperCOOL HC3055

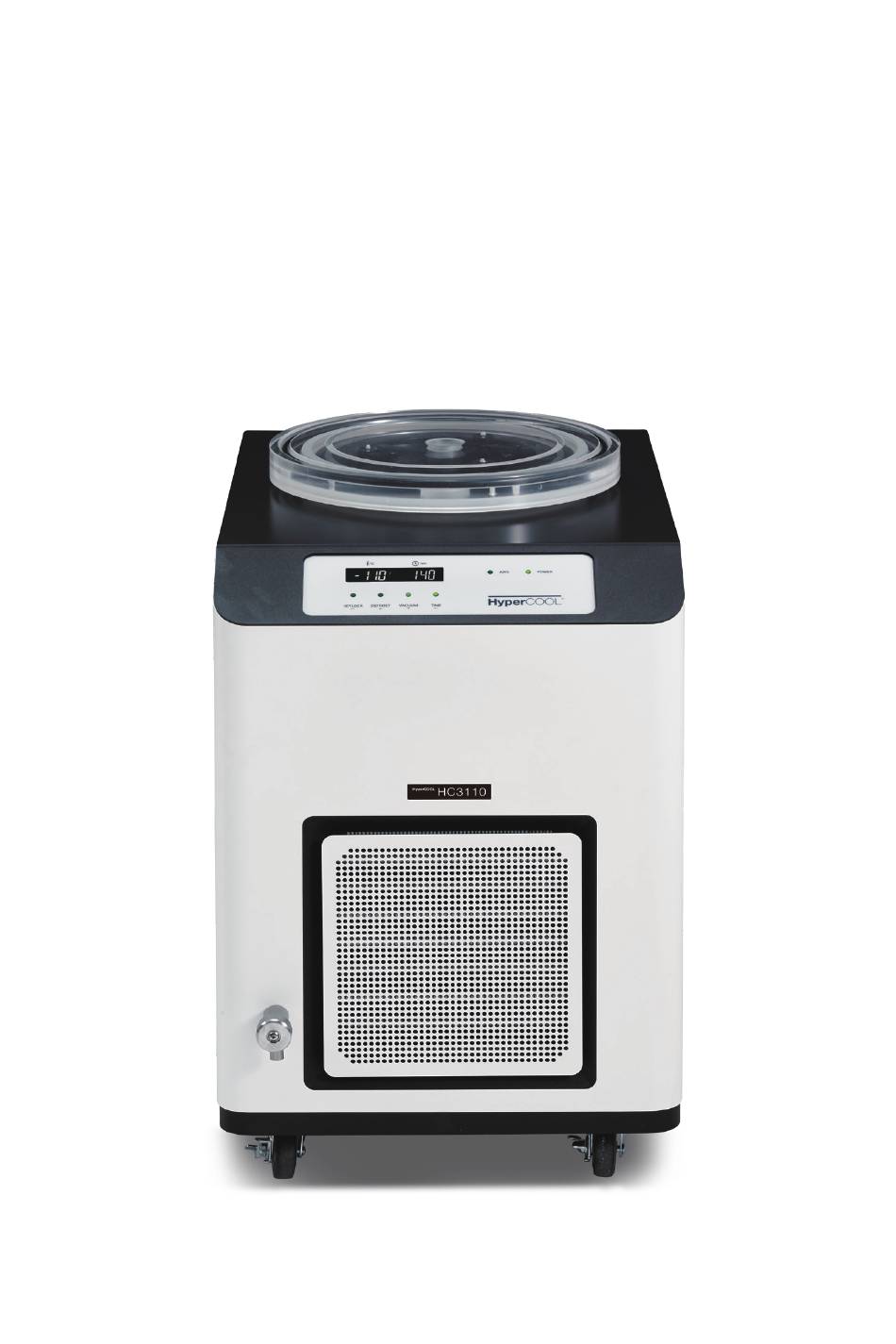

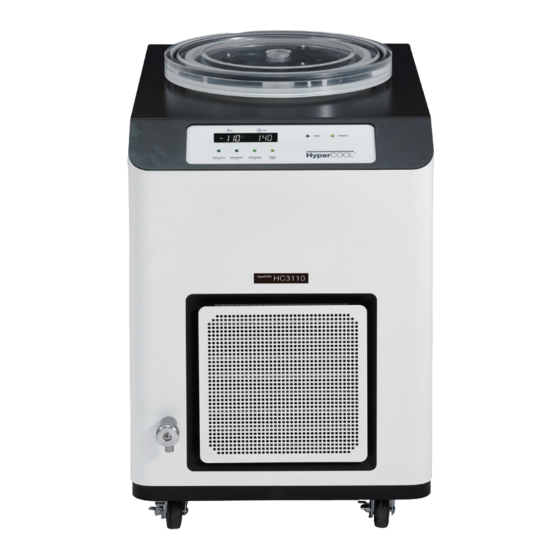

- Page 1 USER MANUAL HyperCOOL HC3055, HC3110 HyperCOOL...
- Page 2 Product info - Research Use Only Trap - Product : Freeze Dryer & Cooling - Model : HC3055, HC3110 - Manufacturer: Hanil Scientific Inc. - Manufacturer address: F5, 16 Arayukro, Gimpo, #10136, korea UM-H_HyperCool(E)(Rev.0) 20201230...
-
Page 3: Table Of Contents
3. Product assembly and installation-------------------------------------- 8 3.1 Open the product packing and fix the wheels------------------ 8 3.2 Power connection----------------------------------------------------- 8 3.3 Operation according to HyperCOOL configuration ------------ 9 4. Usage and precautions --------------------------------------------------- 12 4.1 Control panel ---------------------------------------------------------- 12 4.2 Display ------------------------------------------------------------------ 13 4.3 DEFORST ---------------------------------------------------------------- 13... -
Page 4: Safety Warnings And Precautions
1. Safety warnings and precautions 1.1 Safety label Caution sign indicating danger and warning Electric shock hazard caution sign HyperCOOL... -
Page 5: Precautions For Safety
1. Safety warnings and precautions 1.2 Precautions for safety This can prevent malfunctions that may occur during use. 1. The freeze dryer must be installed horizontally on a flat surface; the device shouldn’t move [or be moved] during operation 2. Install it at least 10 cm away from the wall as there must be a free space for air circulation. -
Page 6: Product Composition And Information
4. Power socket 8. Moving wheel 2.2 Components Clamp User manual AC Power Cord Vacuum Hose ※ When ordering HyperCOOL, the above accessories are provided. ※ Vacuum Pump is not included in the basic components and is sold separately. HyperCOOL... -
Page 7: Technical Specification
2. Product composition and information 2.3 Technical Specifications Model HC3055 HC3110 Ultimate Chamber Temp. (at RT) ( ℃ ) -110 Chamber Volume (L) Trap (Chamber) Size (Ø x L) 165 x 202 ICE Condensing Capacity (kg) ICE Condensing Performance (kg / day) -
Page 8: Product Assembly And Installation
1. After purchasing the freeze dryer, open the packaged box and check the components. ▶ Components : Freeze dryer (Hypercool) / User manual AC Power Cord / Vacuum Hose / Clamp 2. Place the machine horizontally on a flat surface, and hold the wheel by lowering the wheel fixing lever at the bottom of the machine. -
Page 9: Operation According To Hypercool Configuration
3. Product assembly and installation 3.3 Operation according to HyperCOOL configuration HyperCOOL : Independent operation Open (vacuum state) HyperCOOL -> Vacuum pump Closed (vacuum released) Pump power cord connection Vacuum hose connector Vacuum pump HyperCOOL Vacuum pump power socket Power socket ▶... - Page 10 ▶ Check before operation Reference when HyperCOOL independent operation ▶ Points to note when using integrated connection When operating DEFROST in HyperCOOL, the concentrator must be used with the pump stopped. (When the concentrator is stopped or operating below 1,000 rpm) HyperCOOL...
- Page 11 3. Product assembly and installation HyperCOOL (chamber) and vacuum centrifugal concentrator Power socket HyperCOOL -> Concentrator Pump power cord connection HyperCOOL -> Vacuum pump Vacuum hose connector HyperCOOL Vacuum pump Power socket ▶ Check before operation Reference when HyperCOOL independent operation A/S : +82-2-3452-8966 / techsupport@ihanil.com...
-
Page 12: Usage And Precautions
▶Lamp ON : Power on / Lamp off: Power off □ AWO Lamp ▶This lamp allows you to check the temperature range in the chamber. ▶Lamp lighting/flashing range Status Lamp changes HC3055 HC3110 -20 ℃ < Alarm Flashes every 5 second -20 ~ -50 ℃ -20 ~ -90 ℃... -
Page 13: Display
4. Usage and precautions 4.2 Display Temp display: It displays the current temperature, and the unit is ℃. Time display: It displays the operating time and is displayed in hours and minutes.. Vacuum value display: Vacuum value is displayed by pressing VACUUM button for 3 seconds. ▶... -
Page 14: Vacuum
- Optional Pirani sensor : 0.001~760 Torr Vacuum release speed regulation! You can adjust the vacuum release speed by turning the vacuum release knob on the back of the product. ▶ Clockwise rotation: Reduces vacuum release speed ▶ Counterclockwise rotation: Increases vacuum release speed HyperCOOL... -
Page 15: Time
4. Usage and precautions 4.5 TIME Up to 999 hours 59 minutes or continuous operation (0:00) can be set. 1. Press the [TIME] button once, use the ▲[DEFROST] and ▼[VACUUM] buttons to set the minute, then press the TIME button once more to set the “hour”. ▶... -
Page 16: Maintenance
Remove dust periodically in order to maintain the refrigeration function of the condenser normally. Be sure to turn off the power during this operation. If foreign matter or dust is found It is separated by pulling on the condenser surface, remove it. the front air suction plate with both hands. HyperCOOL... -
Page 17: Problem Solving
6. Problem solving 6.1 Checklist before reporting a malfunction If an error occurs in the freeze dryer, check the following before requesting a service center. Symptom Checklist Refer to 3.2 Power Connection, check the grounding part of the outlet to see if the power plug is removed, and check the location of No power the ON/OFF button of the power switch. -
Page 18: Etc
3. The power is connected to the power socket at the bottom left of the back of the main body, and disconnect the power cord to cut off the main body. 4. Do not open or disassemble this device at your discretion. HyperCOOL... -
Page 19: Accessories
V04CS12350-00 V04RB00120-01 Connector (Valve) Packing (Chamber) V04RB12350-00 Rubber Valve Body V04RB12250-00 V04AC02050-00 0-Ring-AN024 Valve Handle V04CS12450-00 HC-CPB Manifold Bar-300 HyperCOOL Acrylic Base HC-MFB-4V V04RB12250-00 4-Valve Manifold Basic 0-Ring-AN024 V04RB12250-00 0-Ring-AN024 V04CS12550-00 Manifold Bar-200 HC-CPB HyperCOOL Acrylic Base V04RB12250-00 0-Ring-AN024 V04CS12350-00... - Page 20 Packing (manifold plate) V04AC02050-00 Valve Handle V07RB04350-00 Packing (manifold plate) HC-CH300 Chamber (Ø300) V04AC00150-00 Manifold Plate (BOT) HC-CPB HyperCOOL Acrylic Base V04RB00150-00 Packing (Chamber) V04AC00220-00 Manifold Plate (TOP)-8V Assembly V04TR10450-00 HC-CH300 Tray Pole - Center Chamber (Ø300) V04TR10350-00 Tray Pole - Left...
- Page 21 Packing (manifold plate) V04AC02050-00 Valve Handle V07RB04350-00 Packing (manifold plate) HC-CH300 Chamber (Ø300) V04AC00150-00 Manifold Plate (BOT) HC-CPB HyperCOOL Acrylic Base V07RB04350-00 Packing (manifold plate) V04AC00420-00 Manifold Plate (TOP) 4V Assembly V04TR10450-00 Tray Pole - Center HC-CH300 Chamber (Ø300) V04TR10350-00...
- Page 22 Manifold Plate (TOP) - NV Assembly V07RB04350-00 Packing (manifold plate) V07RB04350-00 HC-CH300 Packing (manifold plate) Chamber (Ø300) V04AC00150-00 Manifold plate (BOT) HC-CPB HyperCOOL Acrylic Base V04RB00150-00 Packing (Chamber) V04AC00430-00 Manifold Plate (TOP)- NA Assembly V04TR10450-00 Tray Pole - Center HC-CH300 Chamber (Ø300) V04TR10350-00...
- Page 23 Accessories Flask Flask Tube capacity Flask cap-Ø60 120 mL Flask 150 mL Flask 300 mL Flask (mL) Tube glass flask Dimension 60 x 85 60 x 95 60 x 165 120~300 mL (Φ x L, mm) Cat. No. V07AC02520-01 V07FL00420-00 V07FL00320-00 V07FL00220-00 Flask...
- Page 24 (900 mL flask only Stoppering Assembly Stoppering Assembly Packing Chamber Manifold Packing Stainless Steel Stoppering (manifold Name (Ø300) Plate (Chamber) Rack Plate (TOP) Plate) HyperCOOL (Bottom) HyperCOOL -Stoppering HyperCOOL HC-SP30M- HCCH300- V04AC V04RB00 V07RB04 Cat. No. HC-CR25-SP 00150-01 120-01 350-00 HyperCOOL...
- Page 25 MEMO A/S : +82-2-3452-8966 / techsupport@ihanil.com A/S : 02-3452-8966 / techsupport@ihanil.com...
- Page 26 MEMO HyperCOOL...
- Page 27 MEMO A/S : +82-2-3452-8966 / techsupport@ihanil.com A/S : 02-3452-8966 / techsupport@ihanil.com...
- Page 28 HyperCOOL...
Need help?
Do you have a question about the HC3055 and is the answer not in the manual?
Questions and answers
Assistance Needed for Proper Shutdown Procedure – HyperCOOL HC3055: Hello, We have recently purchased the HyperCOOL HC3055 and are currently reviewing the manual. However, we could not find clear instructions regarding the proper shutdown procedure for the equipment. Specifically, we are unsure about the correct sequence of the following steps: Closing the vacuum line Turning off the vacuum pump Turning off the vacuum via the control panel Opening the vacuum release knob Could you please clarify the correct order of these steps for safely shutting down the system? Your guidance would be greatly appreciated. Thank you in advance for your support.
