- Page 1 User Manual...
-
Page 2: Table Of Contents
RFC- XL Table of Contents 1. Before You Begin ............... What Is Included ................... Unpacking Instructions.................. Claims ..........................Text Conventions ..................Symbols ......................Disclaimer ..................... Intellectual Property ..................Safety Notes....................2. Introduction ................Product Overview..................Product Dimensions ..................3. Setup ................... RFC- XL Remote Control ................ -
Page 3: Before You Begin
Before You Begin 1. Before You Begin What Is Included • RFC- XL • Quick Reference Guide • Alkaline battery (A23) Unpacking Instructions Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. -
Page 4: Safety Notes
Before You Begin Safety Notes ■ ALWAYS: ♦ In the event of a serious operating problem, stop using immediately. ■ DO NOT: ♦ Open this product or attempt any repairs. It contains no user-serviceable parts. ♦ Operate in temperatures higher than 104°F (40°C). ♦... -
Page 5: Introduction

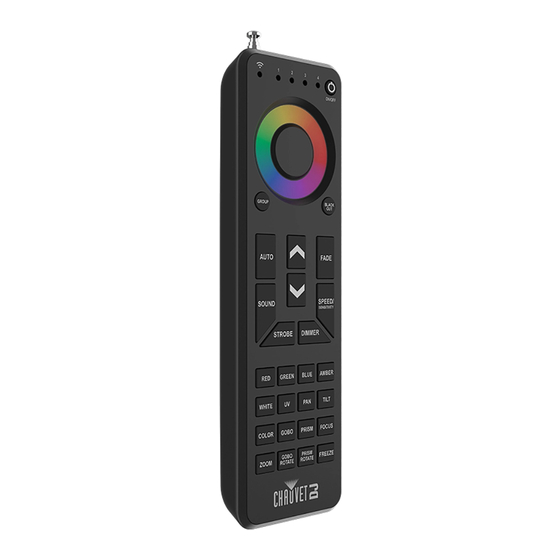

Introduction 2. Introduction Product Overview Group Indicator Lights Power Power Indicator Light Color Picker Group Control Buttons Group Control Buttons Product Dimensions 1.9 in 47mm 0.7 in 16.75 mm 6.3 in 160 mm RFC- XL User Manual Rev. 1... -
Page 6: Setup
Setup 3. Setup RFC- XL Remote Control The RFC- XL can be operated with any Chauvet RF enabled fixture. RF wireless control must be set on the fixture. To enable RF wireless control in the fixture, locate the RF function in the Menu Map and enable RF. Binding To bind the fixture to the remote, navigate to the <BIND>... -
Page 7: Operation
Operation 4. Operation RFC- XL Remote Operation The RF remote functions will vary from fixture to fixture. Some RF functions on the remote may not be applicable. Remote Function COLOR PICKER The color picker can be used to select colors manually instead of cycling through preset colors. - Page 8 Operation Remote Function AUTO Triggers built in programs in the fixture. 1. Press <AUTO>. 2. Press <UP> or <DOWN> to choose between the different auto programs. 3. Press <SPEED/SENSITIVITY>. 4. Press <UP> or <DOWN> or use the color picker to increase or decrease the program speed FADE Toggles some auto programs to snap or fade.
- Page 9 Operation Remote Function Rotates the fixture left or right. 1. Press <PAN>. 2. Press <UP> or <DOWN> or use the color picker to adjust the pan. TILT Moves the fixture up and down. 1. Press <TILT>. 2. Press <UP> or <DOWN> or use the color picker to adjust the tilt. COLOR The color function cycles through the fixture’s preset colors.
-
Page 10: Technical Specifications
Technical Specifications 5. Technical Specifications Dimensions and Weight Length Width Height Weight 6.3 in (160 mm) 1.9 in (47 mm) 0.7 in (17 mm) 12.6 oz (357 g) Note: Dimensions in inches rounded to the nearest hundredth. Battery Type Capacity Voltage Power Alkaline (A23) -
Page 11: Contact Us
Contact Us Contact Us General Information Technical Support Chauvet World Headquarters Address: 3360 Davie Rd. Voice: (844) 393-7575 Davie, FL 33314 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com Chauvet U.K. Address: Unit 1C Email: UKtech@chauvetlighting.eu...
