Portable Air Conditioner

Model No. UAK-04C

USER MANUAL

Table of Contents

Need help?

Do you have a question about the UAK-04C and is the answer not in the manual?

Questions and answers

Summary of Contents for upstreman UAK-04C

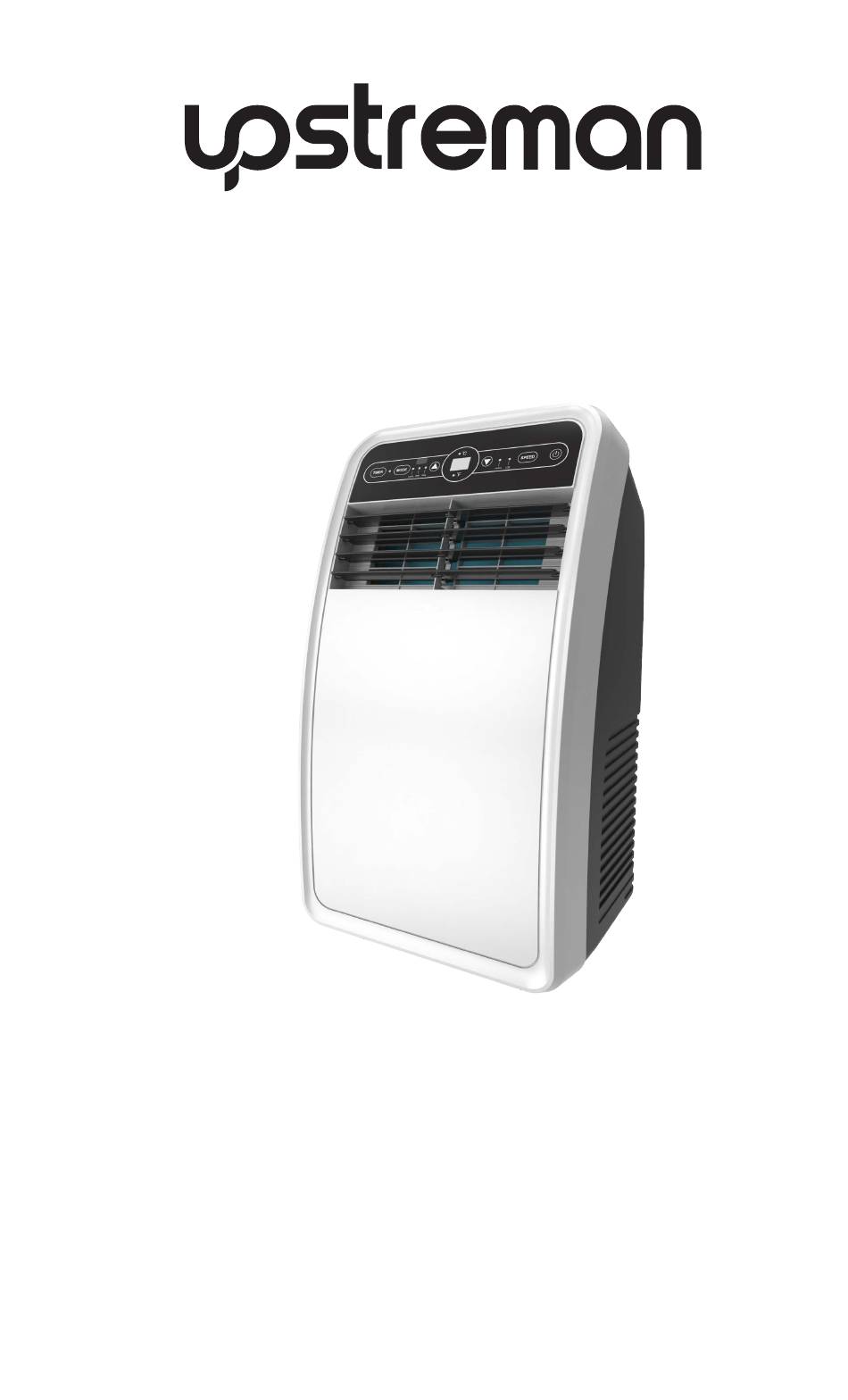

Page 1 Portable Air Conditioner Model No. UAK-04C USER MANUAL...
Page 2: Specifications
TABLE OF CONTENTS ........................................................................................................ Best Installa�on....................Warranty......................17 SPECIFICATIONS UAK-04C odel Voltage Frequency Width 1 Depth 13.5 in Dimensions Height 9 in Weight Cooling A . ft. BTU Rating Power Cord Length 4.9 ft...
Page 3: Safety Information And Warnings
SAFETY INFORMATION & WARNINGS SAFETY PRECAUTIONS Please read the Manual carefully before operating the machine: Read and keep these instructions. Heed all warnings. Follow all instructions. Do not use this machine near water. Clean it only with a damp cloth. Do not block any ventilation openings.
Page 4: Electric Shock Hazard
16.Turn off the machine before unplugging it. 17.Refer all servicing to qualified service personnel. Servicing is required when the machine has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the machine, the machine has been exposed to rain or moisture, does not operate normally, or has been dropped.
Page 5 ELECTRICAL SAFETY Integrated circuit breaker For additional safety, the power cord on this air conditioner features an integrated circuit breaker. RESET button You can test and reset the circuit breaker using the buttons provided on the plug case. Consult a TEST button qualified electrician or service person if the grounding instructions are not completely...
Page 6: Setting Up Your Portable Air Conditioner
SETTING UP YOUR PORTABLE AIR CONDITIONER Before using your portable air conditioner • Remove and store (optional) packing materials for reuse. • Remove any shipping tape before using the air conditioner. • Remove tape residue with liquid dish soap and a damp cloth. Do not use sharp tools, alcohol, thinners, or abrasive cleaners to remove adhesive, which could damage the finish.
Page 7: Product Features
PRODUCT FEATURES 1. Carrying Handle 6. Air Intake 2. Control Panel 7. Drain Plug 3. Adjustable Front Grille 8. Remote Controller 4. Casters 9. Exhaust Duct 5. Exhaust Output 10. Window Sealing Plate...
Page 8: Installing Your Air Conditioner
INSTALLING YOUR AIR CONDITIONER 1.Screw the exhaust hose to the exhaust outlet on the back of your air conditioner, then screw the hose adapter to the other end of the hose. 2.Measure the window size. 3.Install the window sealing plate in the window opening,adjusting the length to fit the window opening and securing it with "Clip"...
Page 9 4.Insert the hose adapter into the vent panel (A), then slide the adapter until it clicks into place (B). Small gap Insert Slide Note: For optimum performance, make sure the venting hose is not twisted and is free of kinks. For better efficiency, shorten the hose by squeezing its sections together.
Page 10 Caution: The exhaust duct is designed especially for this air conditioner. Replacing or lengthening the duct could result in damage to your unit.
Page 11: Using Your Air Conditioner
USING YOUR AIR CONDITIONER Inserting the batteries in the remote controller • Insert two AAA batteries (provided) into the remote control. COOL DR Y...
Page 12 1. Power bu�on 2. Mode bu�on 3. Temperature bu�ons 4. Speed bu�on 5. Timer Bu�on 6. Time/Temperature Display 7. Remote control sensor 8. Temperature mode bu�on 9. Sleep bu�on...
Page 13: Cleaning And Maintenance
CLEANING & MAINTENANCE DRAINING THE WATER TANK This unit is equipped with an automatic water vaporization system. The condenser is cooled through the circulation of condensing water to improve cooling efficiency and energy conservation. If the tank is full, “FL” will appear on the display to indicate that it needs to be drained.
Page 14: Dust Filter
DUST FILTER • Once every two weeks, remove the dust filter from the back of the unit and wash it. Neglecting to clean the dust filter may cause the unit to run poorly over time. SEASONAL CLEANING If you are planning on putting the unit away long-term: •...
Page 15: Troubleshooting
TROUBLE SHOOTING Notice: For any issues not listed here that arise while using the A/C, turn the unit off and unplug it, wait a few minutes, and try again. ERROR CODE CODE DESCRIPTION The internal water tank is full and needs to be emptied. Coil temperature sensor error.
Page 16 BEST INSTALLATION 50cm（19.7inch）...
Page 17 Please be noted that accesories are free, not included. How to Return Your Upstreman Products - Contact support@upstreman-home.com with your order number. - We will issue you RMA# and return address for your return. - Please fill out RMA info, tear off this page and leave it inside your return pack- age.We will issue replace/return after receiving your return.
Page 18 Shenzhen Lanbiaoyi Technology Co., LTD . Website: www.upstreman-home.com E-mail: support@upstreman-home.com ADD: Room 1438F, Anjier Building, No.52 Bagua 4th Street, Yuanling Ave, Futian District, Shenzhen, China, 518000 Made in China Conforms to UL STD. 484 Certified to CSA STD. C22.2 NO. 117...
