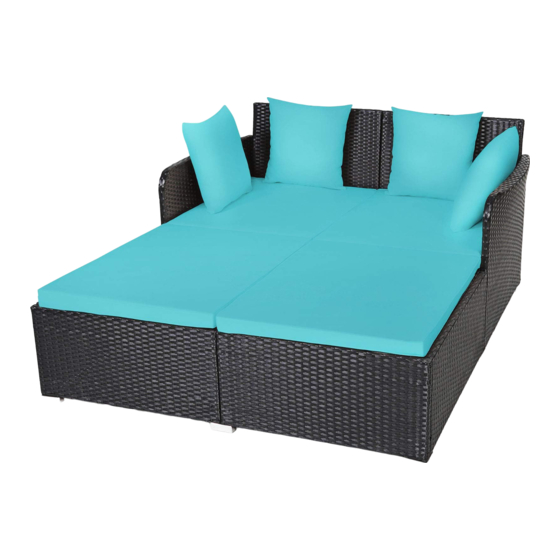

Outdoor Daybed / Canapé-lit Extérieur
HW67329
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Scan QR code for
assembly instructions
Advertisement
Related Manuals for PATIOJOY HW67329
Summary of Contents for PATIOJOY HW67329
- Page 1 Scan QR code for assembly instructions Outdoor Daybed / Canapé-lit Extérieur HW67329 USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com customer team is always here to help.
-
Page 2: Before You Start
Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. - Page 3 Part List / Liste des Pièces Notice 1. 50% Tighten before fixing all screws, Allen wrench is recommended instead of an electric drill. 2. Place the item on a flat ground to adjust and make sure it remains stable. 3. Tighten up all screws with tools gradually. A x1 4.
- Page 4 Hardware List / Liste des Accessoires EN: Connect Right frame (A) & Side frame (C) with Bolt (3) & Washers (7) FR: Connectez le cadre droit (A) et le cadre latéral (C) avec Bolt M6x15mm Bolt M6x25mm Bolt M6x35mm le boulon (3) et les rondelles /Boulon M6x15mm /Boulon M6x25mm /Boulon M6x35mm...
- Page 5 EN: Connect Seat frame (D) & EN: Connect part from Step 3 & Seat frame (D) with Bolt (5) & Part from Step 4 with Bolt (5) & Washers (7) & Nut (6) Washers (7) & Nut (6) FR: Connectez le cadre du siège FR: Connectez la pièce de (D) et le cadre du siège (D) avec l'étape 3 et la pièce de l'étape 4...
- Page 6 EN: Connect Back EN: Connect part from Right frame (G) & step 8 & Part from Step Back Left frame (H) 5 with Bolts (3) & with Bolt (4) & Washers(7) Washers (7) FR: Connectez la pièce de l'étape 8 et la pièce FR: Connectez le de l'étape 5 avec le cadre arrière droit (G)
- Page 7 EN: Connect part from EN: Connect part from Step 10 & Part from Step 12 & Plastic feet Step 2 with Bolt (3), corner (8) & Plastic (4) & Washers (7) feet (9) with Bolt (2) FR: Connectez la pièce FR: Connectez la pièce de l'étape 12 et le coin de l'étape 10 et la pièce...
- Page 8 EN: Put on Seat cushion Return / Damage Claim Instructions FR: Mettez le coussin de siège (J) DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted.
