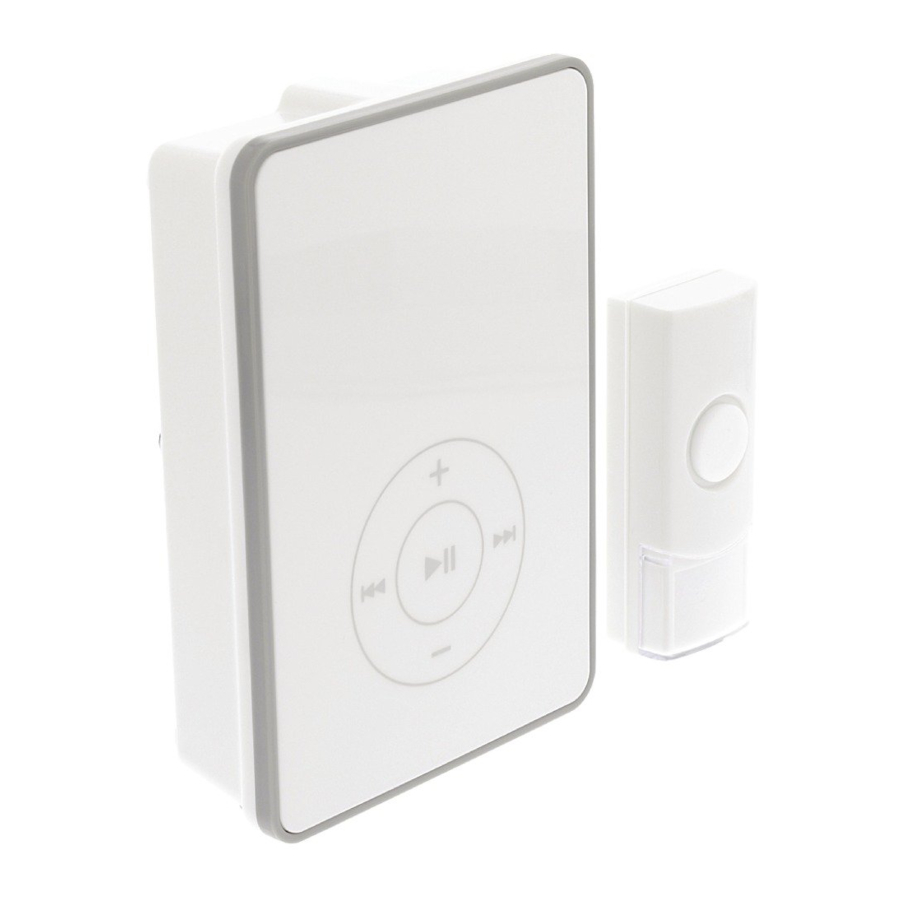

König SAS-WDB211 - Wireless Doorbell Manual

Table of Contents

Description (fig. A)

Description

Transmitter	Refer to the illustration (fig. B1) to install the transmitter.
Doorbell button
Battery compartment	Refer to the illustration (fig. B2) to install the battery.
Receiver	Refer to the illustration (fig. C1) to install the receiver.
Play/pause button	Press the button to play or pause a melody.
Next button	Press the button to select the next melody.
Previous button	Press the button to select the previous melody.
Volume + button	Press the button to increase the volume.
Volume - button	Press the button to decrease the volume.
SD/IN switch
Memory card slot (microSD / TransFlash)	Insert a memory card into the memory card slot.
USB port	To copy melodies from the computer to the receiver, connect the USB cable to the USB ports of the receiver and the computer.
USB cable
DC input (5V)	To use the DC input as power supply, make sure that there are no batteries in the battery compartment. Connect a power adapter to the DC input of the device and to the wall socket. The power indicator comes on.
Power indicator
Battery compartment	Refer to the illustration (fig. C2) to install the batteries.
CD	The CD is equipped with music cutting software to edit melodies on the computer before uploading them to the memory card.

Remove the batteries from the transmitter and the receiver.
After 30 seconds, install the batteries into the transmitter and receiver.
Press the doorbell button on the transmitter within 15 minutes. The receiver will sound to indicate that the pairing is successful.

Power supply	Transmitter: CR2032, 3 V DC (included) Receiver: AA, 1.5 V DC (3x) (not included) Power adapter, 5 V AC (not included)
Frequency	433 MHz
Noise level	80 dB (within 0.5 m)
Operating range	≤ 200 m (line of sight)
Operating temperature	-30°C ~ + 40°C
IP protection	Transmitter: IP44
Dimensions (HxWxD)	Transmitter: 80 x 32 x 21 mm Receiver: 140 x 96 x 37 mm

shock hazard
RISK OF ELECTRIC SHOCK
DO NOT OPEN

To reduce risk of electric shock, this product should only be opened by an authorized technician when service is required.
Disconnect the product from the mains and other equipment if a problem should occur.
Read the manual carefully before use. Keep the manual for future reference.
Only use the device for its intended purposes. Do not use the device for other purposes than described in the manual.
Do not use the device if any part is damaged or defective. If the device is damaged or defective, replace the device immediately.
Do not use the device outdoors. The device is suitable for indoor use only.
Do not expose the device to high temperatures.
Do not expose the device to direct sunlight.
Do not use the device in locations with high humidity, such as bathrooms and swimming pools.
Do not install the device in areas where interference can be caused by other devices.
Do not touch the device with wet hands.

Do not clean the inside of the device.
Do not use cleaning solvents or abrasives.
Do not attempt to repair the device. If the device does not operate correctly, replace it with a new device.
Clean the outside of the device using a soft, damp cloth.
