Summary of Contents for ELECWISH US-HW1108

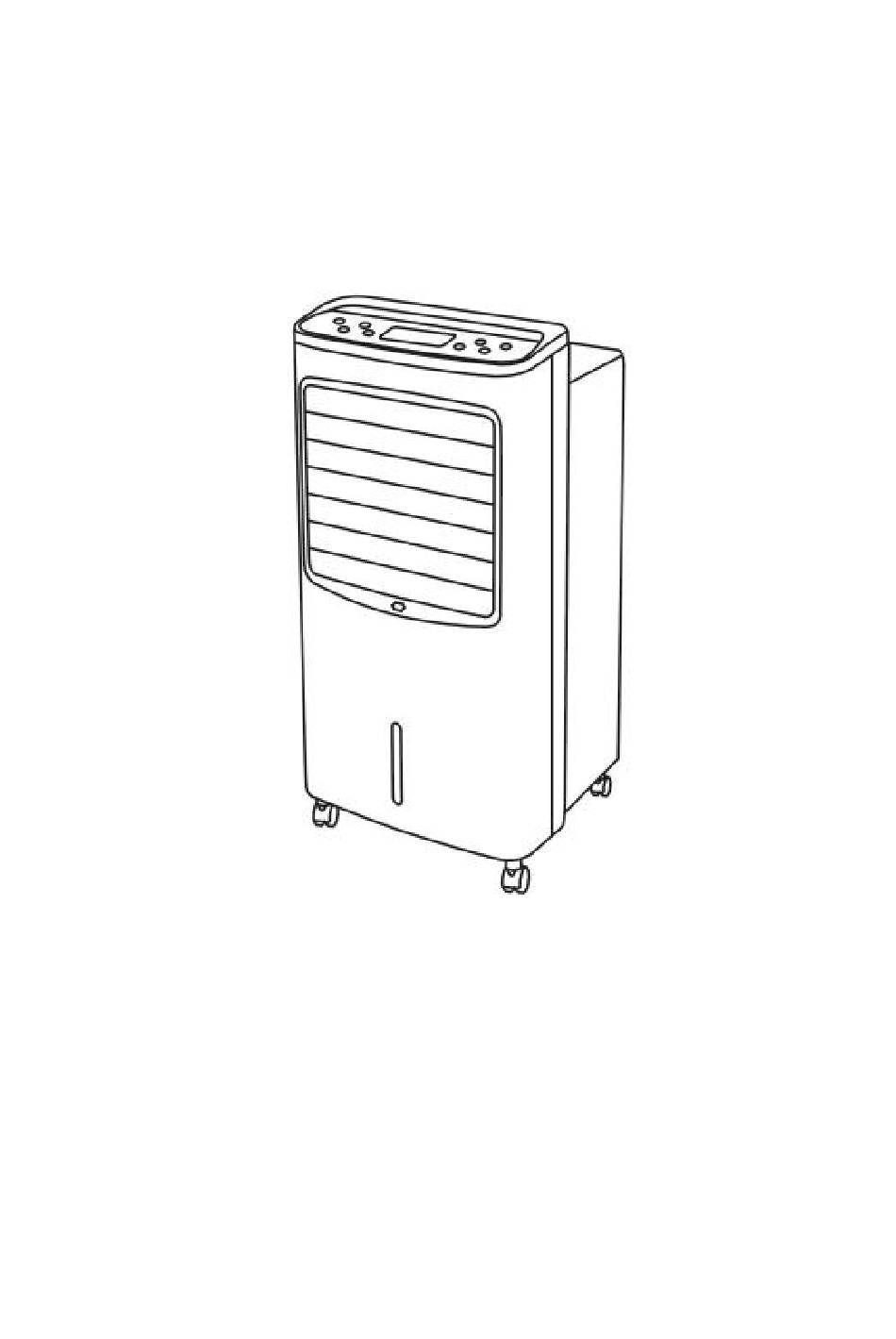

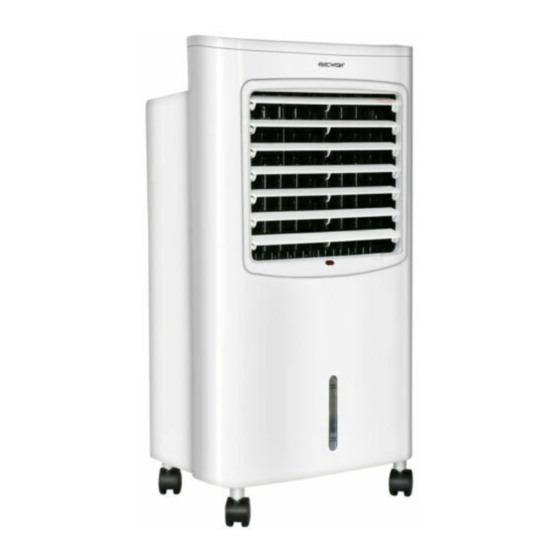

- Page 1 AIR COOLER MANUAL Model No.: US-HW1108...
-
Page 2: Performance Parameters
Fan power Injection Rate 120V~ 60Hz US-HW1108 FUNCTIONS ● Principle of cool humidify: take cool water from the water tank by pump or synchronous motor, after reaching the top, the cool water will flow through the wetted pad, then blow off humid cool air rounding the wetted pad by rotational wind wheel. -
Page 3: Operation
Attention: the back castor is with brake, but the front one is not. (map 1) 2. Watering: push the key on the door, open it and draw out the water tank, then add water.(map 2) Attention: a. Pay attention to the level of water tank when add water.(map 3) b. -
Page 4: Electric Principle Diagram
CAUTION 1. Use as per the rating voltage. 2. Do not repair or remake the appliance by yourself, it should be repaired by the repairmen. 3. Do not operate the appliance with wet hands, in order to avoid damage. 4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 5: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING: Ensure that the fan is switched off from the supply mains before removing the air filter screen. 1. Clean the air filter screen (map 1) Cut off the power supply, pull the handle of air filter screen, remove it from appliance. Clean the air filter screen with neutral detergent and banister brush, then clean it with clear water. - Page 6 1. Abnormal action or no action. it is invalid by the above approach. 2. Abnormal action caused by ingress of water or corpus alienum. Website: https://www.elecwish.com/ Customer Service Email: aftersales@elecwish.com Customer Service Phone: #9519343021 Please don't worry about the after-sale service, you can contact us at any time for any issue.
