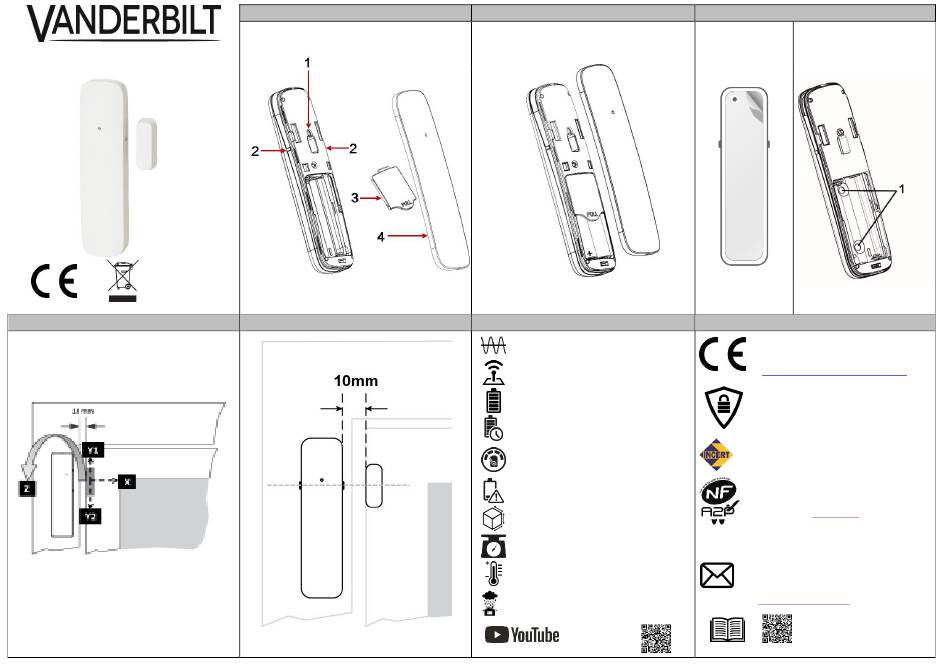

Vanderbilt WMAG Quick Start Manual

WMAG

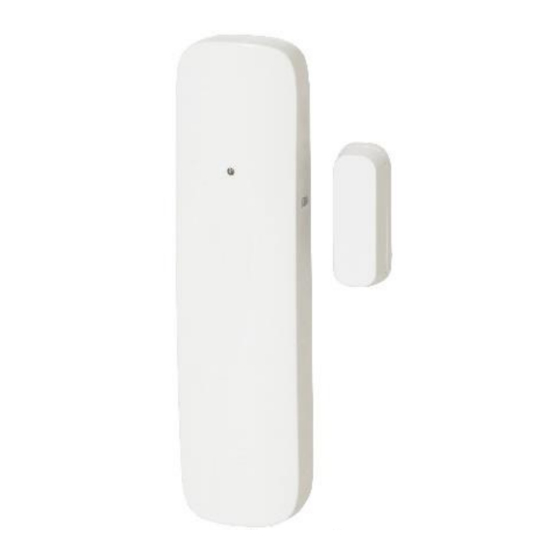

WIRELESS MAGNETIC CONTACT SLIMLINE
Document ID: I-200290-f
Version: 4.0
Edition: 08.07.2020
7103580 C
4
1
5
2
6
868 - 869 MHz
500m
2 x 1.5V Lithium AAA
Energizer L92
> 5 Years
Stdby ~5 uA
Rx mode ~24 mA
Tx mode ~50 mA
Tx ~12dBm
3V
100mm x 26mm x 16mm
Security Grade 2, Environmental Class 2 Power supply Type C
100g
-10C to +50C
IP30/IK04
3
A B
• EMC directive:2014/30/EU
• LVD directive: 2014/35/EU
• RE directive (RED): 2014/53/EU
• RoHS2 directive: 2011/65/EU
•
http://pcd.vanderbiltindustries.com/doc/wireless
• EN50131-1
• EN50131-2-6
• EN50131-6
• EN50131-5-3
• EN50130-5
T031
• NF & A2P certificate No. 2123700006A0 2 shields
Repository NF324-H58
• RTC50131-2-6 Grade 2 Class II environmental
• Certifying body:
CNPP Cert .: www.cnpp.com
AFNOR Certification: www.afnor.org
• SSF 1014-5 Larmklass 2
SSF
Vanderbilt
Clonshaugh Business and Technology Park
Dublin
D17 KV84
Ireland
www.vanderbiltindustries.com
