Summary of Contents for USM QuickServe II

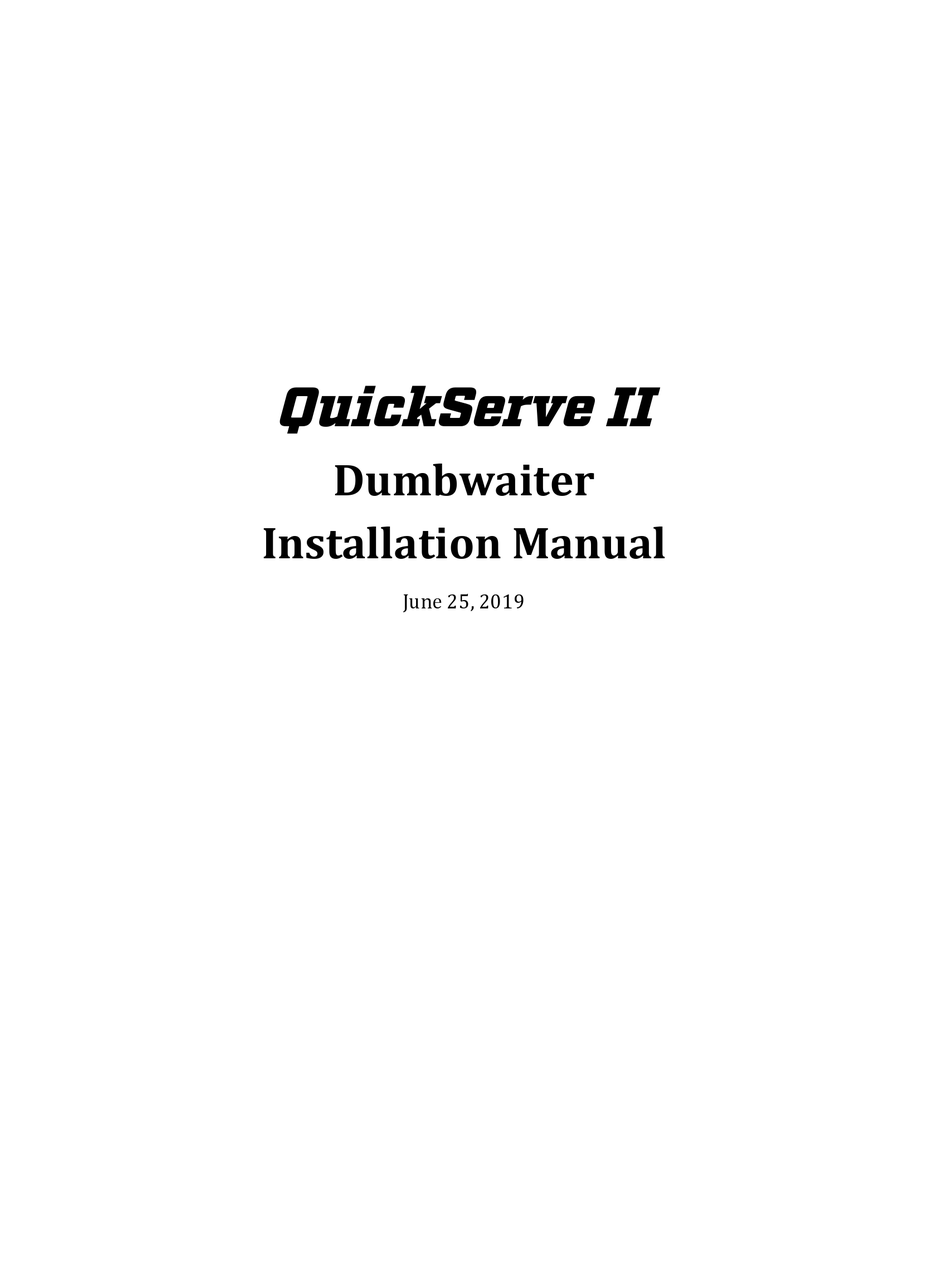

- Page 1 QuickServe II Dumbwaiter Installation Manual June 25, 2019...
- Page 2 This dumbwaiter was designed to meet the stringent requirements of ASME A17.1, and ASME A17.5 when installed properly. Before installing this product, check with local authorities to assure local code compliance, installation requirements, and to determine if permits are required. Save these instructions.
- Page 3 DUMBWAITER OVERVIEW Gate Frame Track Bracket Extruded Aluminum Track Dumbwaiter Car Gate Panels Top and Bottom Floor Limit Switches Batteries Terminal Block On/Off Switch (Circuit Breaker) Overspeed Governor and Diagnostic LED Wireless Receiver...
- Page 4 The dumbwaiter car is fully assembled onto the chassis and bottom piece of track. If necessary, the car can be removed from the chassis for installation. 1. Stand dumbwaiter assembly inside hoistway and fasten to wall at brackets. Refer to the application drawing for location and required running clearances.
- Page 5 3. The lower end of each additional track section with have splice bars inside the slots. Loosen the set screws and slide the splice bars half-way out of the track and tighten the set screws. Set Screws Splice Bar Splice Bars slide into the Track previously mounted to wall 4.
- Page 6 6. Attach the limit cams to the hoistway wall with wood screws. See illustration below for locations. The cams are slotted to allow for adjustment later. Top Final Cam Approximately 1.5" above Top Landing Sill Top Limit Cam -Align with edge of Track 6.25"...
- Page 7 7. Mount hoistway junction box to hoistway wall in the lower part of the hoistway, below bottom land- ing where it will not interfere with moving car. Carefully unwind the cable leading to the car before attaching to wall. It is important to not have any twists in the cable.
- Page 8 10. Mount each interlock per the instructions provided with the interlock. 11. Route the 4-conductor cables between the hoistway junction box and each interlock. Each cable is marked with the appropriate floor number. 12. Connect wire to each interlock as follows: Wire Color Interlock Terminal Black...
-
Page 9: Completion Checklist
16. Lubricate the track and gear rack with a lithium grease. A tube is provided with the small parts box. 17. Perform the completion checklist before turning the dumbwaiter over to the customer. COMPLETION CHECKLIST Verify each hall station ‘calls’ and ‘sends’ the dumbwaiter to the appropriate landing. ... - Page 10 AUDIO/VISUAL STATUS INDICATIONS The dumbwaiter is equipped with a 3-color LED to indicate the operating condition of the lift. The LED is on the bottom side of the controller beneath the car. Accompanying this is an audible alarm that will sound accordingly.
