TURBO EVERDRIVE PRO
User Manual
WWW.krikzz.com
18.01.2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TURBO EVERDRIVE PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for krikzz TURBO EVERDRIVE PRO

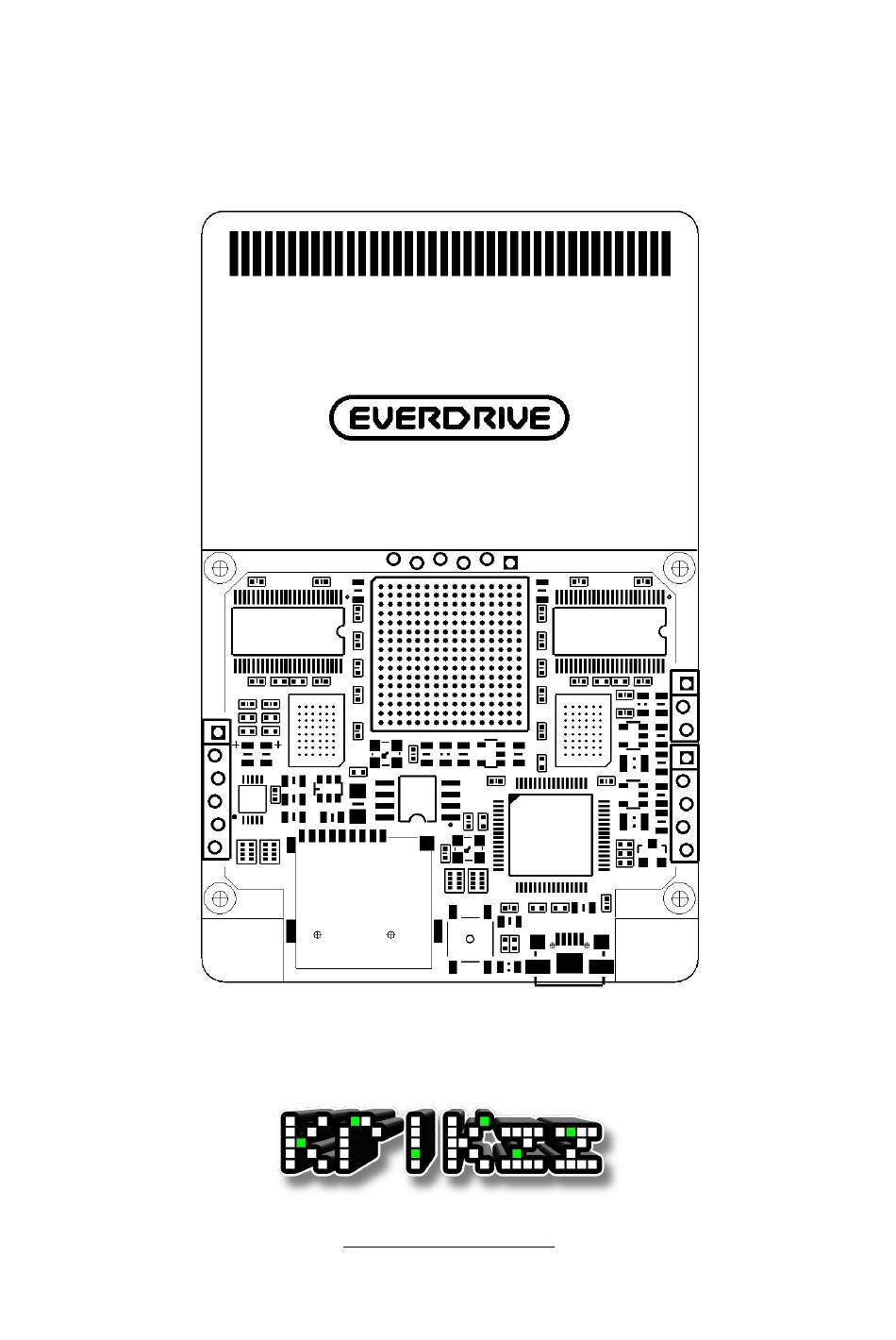

  • Page 1 TURBO EVERDRIVE PRO User Manual WWW.krikzz.com 18.01.2023...
  • Page 2 Custom menu themes • Switchless region auto detection • Built-in firmware installer • USB port for development • In new firmware versions, some features may be added, changed or removed. Please refer to the latest online manual for the latest information. https://krikzz.com/pub/support/turbo-everdrive/pro-series/turbo-ed-pro-manual.pdf...
  • Page 3: File Manager

    File Manager I – Open directory or file menu • II – Back or close • Select – Open main menu • Run – Run last played game • Left/Right – Switch page during file navigation • The upper bar shows the current page and total number of pages in the current folder. The bottom bar shows the full name of the selected file.
  • Page 4 File Menu The file menu is used for manipulating files on the SD card. The menu content is different depending on the file type selected. Rom file menu This menu is applied to pce, sgx, cue file extensions. Start Game The cartridge will be configured to play the selected game.
  • Page 5 Hex View Opens the selected file in a hex viewer. Delete Deletes file from disk. Empty folders can be deleted also, hit I inside of empty folder to call the folder menu. Text file menu This menu is applied to *.txt file extension. It is used for loading cheats from text file.
  • Page 6 Bram memory file menu The *.brm files contains CD-ROM² Ten no Koe 2 save data. The "File" menu allows you to copy data from/to an external CD-ROM² or Ten no Koe 2 if either device is connected. This menu does not appear if nothing is connected to the expansion port. Save-state file menu This menu allows to view save state files.
  • Page 7 Main Menu Press Select to open main menu. Options Options->In-Game Menu Controls in-game menu and save state functions. Options->Cheats Switch on/off cheat functions. Options->Reset Delay OFF: System will return back to the menu immediately after reset. ON: Short reset hit if In-Game menu turned on: open In-Game menu. Short reset hit if In- Game menu turned off: reset the game.
  • Page 8 Options->Last Game Autoboot At cold system start the menu will be skipped and the last played game will be launched automatically, just like the boot with regular cart. Use the reset or in-game menu to return to the cartridge menu. Options->File Sorting Controls file list sorting.
  • Page 9: Recently Played

    Options->In-Game Combo The controller hot-keys for In-Game menu and save state can be changed here. Two or more buttons should be used for the combo. Hold Run to switch-off the combo. “Save Key” and “Load Key” are used for quick save/load. This type of saves skips in-game menu.
  • Page 10: System Folder

    Cheats Edits cheat codes for the last selected game. The bottom bar shows the name of the ROM that game codes will be applied to. Each game may have its own set of codes, they are saved in edturbo/gamedata folder as a text file and loaded automatically when game is played. Up to 16 codes can be applied at the same time.
  • Page 11: Device Info

    Device Info Information about the system. Cartridge Type: Cartridge name • Firmware Version: Cartridge software version • Firmware Date: Firmware build date • System Type: Console model • EXP Device: Indicates if something is plugged into the console expansion port or if the •...
  • Page 12: In-Game Menu

    In-Game menu Allows to return to menu or save the game at any point. During game play hit Save-State combo on the controller to open In-Game menu. Push Select for selected Save-state preview. Save State: Save game state. System snapshot will be immediately saved on SD card •...
  • Page 13: Firmware Update

    Menu Themes Cartridge supports user interface customization. Few basic themes stored in the system folder. Use the theme maker tool to create your own themes: https://krikzz.com/pub/support/turbo- everdrive/pro-series/turbotheme/ Ten no Koe 2 Ten no Koe 2 provides save support for games that support saving to CD-ROM memory, Populous for example.
  • Page 14: Firmware Recovery

    Switchless region auto detection Unlike older versions of the cartridge, Turbo EverDrive PRO does not have a physical switch for the console region, cartridge detects console region automatically. If the cartridge is transferred from TG16 to PCE or visa versa, the first start of the cartridge takes a couple of seconds longer than usual due to region switching.
