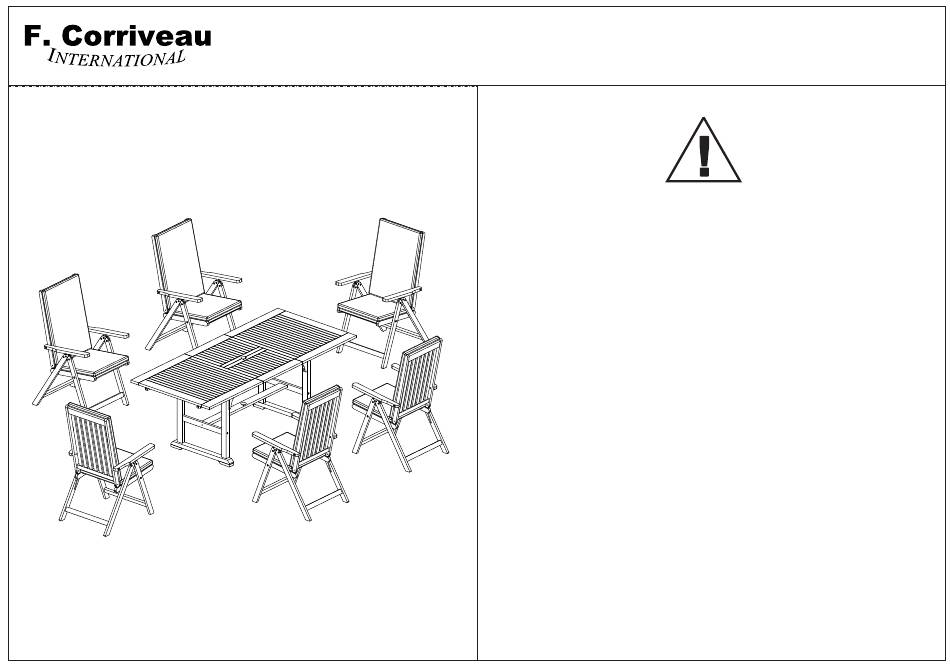

F. CORRIVEAU INTERNATIONAL SPRING Assembly Instructions Manual

Dining 7 pcs set

Advertisement

Quick Links

ASSEMBLY INSTRUCTIONS
INSTRUCTIONS DE MONTAGE
SPRING dining 7 pcs set
Ensemble à dîner SPRING 7 mcx
PLEASE READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE
ATTEMPTING TO ASSEMBLE OR INSTALL THE PRODUCT
WHEN UNPACKING FURNITURE FROM THE CARTON, MAKE SURE YOU
FIND AND BECOME FAMILIAR WITH ALL THE PARTS LISTED. USE WITH
CAUTION AS SOME PARTS MAY BE HEAVY. IF ANY PART IS MISSING OR
DAMAGED, DO NOT ATTEMPT TO ASSEMBLE THE PRODUCT
ASSEMBLE ON A SOFT, NON-ABRASIVE SURFACE
THIS PATIO FURNITURE IS FOR OUTDOOR USE ONLY
RECOMMEND COVERING ALL PRODUCTS WHEN NOT IN USE TO HELP
PROTECT FINISH & MATERIALS FROM WEATHERING
VEUILLEZ LIRE ET COMPRENDRE LA TOTALITÉ DU MANUEL AVANT DE
DÉBUTER L'ASSEMBLAGE OU L'INSTALLATION DU PRODUIT.
LORS DU DÉBALLAGE DU MEUBLE DE SA BOÎTE, IL FAUT S'ASSURER DE
BIEN IDENTIFIER CHACUNE DES PIÈCES SUR LA LISTE. MANIPULER AVEC
SOIN ET PRENDRE GARDE AU POIDS DE CERTAINES PIÈCES. SI UNE PIÈCE
S'AVÈRE MANQUANTE OU ENDOMMAGÉE, NE PAS TENTER D'ASSEMBLER LE
PRODUIT.
FAIRE L'ASSEMBLAGE SUR UNE SURFACE DOUCE ET NON ABRASIVE.
CE MEUBLE DE PATIO EST POUR UNE UTILISATION EXTÉRIEURE
SEULEMENT.
AVANT L'UTILISATION, S'ASSURER QUE LE MEUBLE EST EN BONNE
CONDITION D'UTILISATION.
IL EST RECOMMANDÉ DE RECOUVRIR LES PRODUITS, LORSQUE NON
Imported by / Importé par F. CORRIVEAU INTERNATIONAL
UTILISÉS AFIN DE PRÉSERVER LE FINI ET LES MATÉRIAUX DES
452, BOUL. TACHÉ EST MONTMAGNY, QUEBEC, CANADA G5V 1E2
INTEMPÉRIES.

Advertisement

loading

Summary of Contents for F. CORRIVEAU INTERNATIONAL SPRING

  • Page 1 AVANT L'UTILISATION, S'ASSURER QUE LE MEUBLE EST EN BONNE CONDITION D'UTILISATION. IL EST RECOMMANDÉ DE RECOUVRIR LES PRODUITS, LORSQUE NON Imported by / Importé par F. CORRIVEAU INTERNATIONAL UTILISÉS AFIN DE PRÉSERVER LE FINI ET LES MATÉRIAUX DES 452, BOUL. TACHÉ EST MONTMAGNY, QUEBEC, CANADA G5V 1E2...
  • Page 2 Assembly instructions / Instructions de montage Page 1 Rectangular KD extension table / Table rectangulaire extensible Illustration Qty / Qté Illustration Qty / Qté...
  • Page 3 Assembly instructions / Instructions de montage Page 2 Rectangular KD extension table / Table rectangulaire extensible Illustration Qty / Qté Illustration Qty / Qté...
  • Page 4 Assembly instructions / Instructions de montage Page 3 Rectangular KD extension table / Table rectangulaire extensible Illustration Qty / Qté Illustration Qty / Qté 6x50x13 7x90x15 M6x15x13 7x70x15 M6x30x13 6x30x13 M6x50x13...
  • Page 5 Assembly instructions / Instructions de montage Page 4 Rectangular KD extension table / Table rectangulaire extensible...
  • Page 6 Assembly instructions / Instructions de montage Page 5 Rectangular KD extension table / Table rectangulaire extensible 1. Fix the legs (7a & 7b) to the connecting bar (8) with screws (A) as shown in the figure. 1. Fixer les pattes (7a et 7b) à la barre de liaison (8) avec les vis (A) telle qu’illustrée dans la figure.
  • Page 7 Assembly instructions / Instructions de montage Page 6 Rectangular KD extension table / Table rectangulaire extensible 2. Fix base bars (9) with the assembled groups at step #1 to crossbar beam (10) with screws (A & B) as shown in the figure.
  • Page 8 Assembly instructions / Instructions de montage Page 7 Rectangular KD extension table / Table rectangulaire extensible 3. Fix the underneath bars (3) to the connecting bars (4 & 5) with screws (B) and then fix the middle support bar (11) with screws (C) as shown in the figure.
  • Page 9 Assembly instructions / Instructions de montage Page 8 Rectangular KD extension table / Table rectangulaire extensible 4. Connect the side tops (1a & 1b) to the middle top (2) by using the safety latches as shown in the figure. 4. Joindre les dessus (1a et 1b) avec le dessus central (2) à...
  • Page 10 Assembly instructions / Instructions de montage Page 9 Rectangular KD extension table / Table rectangulaire extensible 5. Fix the assembled support frame at step #3 to the table panels by using the slide rails (6a & 6b) with screws (D) as shown in the figure.
  • Page 11 Assembly instructions / Instructions de montage Page 10 Rectangular KD extension table / Table rectangulaire extensible 6. Fix the assembled legs to the support frame with the corner supports (12) with screws (E & G) & nuts (F) as shown in the figure. 6.
  • Page 12 Assembly instructions / Instructions de montage Page 11 Rectangular KD extension table / Table rectangulaire extensible 7. Insert the umbrella hole cover (H) into the table top as shown in figure, 7. Insérer le couvercle de trou de parasol (H) sur le dessus the la table tel qu'illustré...
  • Page 13 Assembly instructions / Instructions de montage Page 12 Rectangular KD extension table / Table rectangulaire extensible Tips for using the extension table: - Remove the umbrella hole cover. - Open the safety latches underneath the table panels. - Pull the table panels apart. - Fold &...
  • Page 14 Assembly instructions / Instructions de montage Page 13 Rectangular KD extension table / Table rectangulaire extensible The maximum weight capacity of the table is 132 lbs (60 kgs). La capacité maximale de la table est de 132 lbs (60 kgs). 60kgs 132 lbs...
