Summary of Contents for Sylvox Elf S2

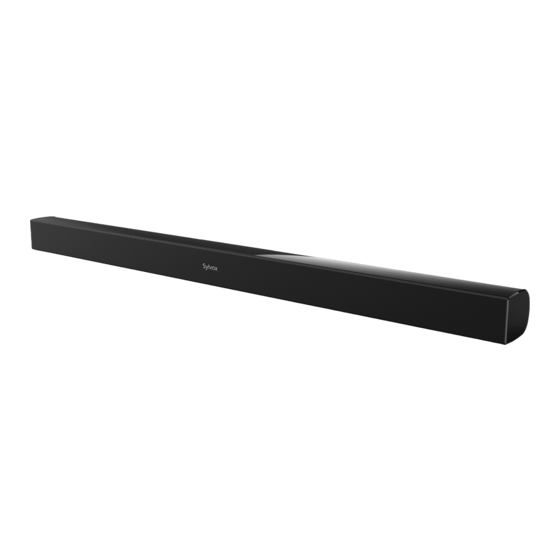

- Page 1 2.0 Channel Outdoor Soundbar Elf S2 USER'S MANUAL Before using the soundbar, please read this manual thoroughly and retain it for future reference.
-
Page 2: Table Of Contents
Contents Important Safety Instructions ......................1 Safety .........................................1 Warning ........................................2 What’s in the Box ..........................4 Specifications............................ 4 Identifying the Parts ........................5 Main Unit ........................................5 Remote Control .....................................5 Preparations ............................. 6 Prepare the Remote Control ................................6 Replace the Remote Control Battery .............................6 Placement and Mounting ..................................6 Place the Soundbar on the TV rack ..............................6 Connections ............................ -
Page 3: Important Safety Instructions
1. Important Safety Instructions the third prong is provided for your safety. CAUTION If the provided plug does not fit into your RISK OF ELECTRIC SHOCK outlet, consult an electrician for replacement DO NOT OPEN of the obsolete outlet. Protect the power cord from being walked on CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 4: Warning
Bluetooth SIG, never yank on the cord. Inc. and any use of such marks by Sylvox. is under • Changes or modifications to this unit not license. Other trademarks and trade names are expressly approved by the party responsible those of their respective owners. - Page 5 FCC Caution: • Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment.
-
Page 6: What's In The Box
2. What’s in the Box Soundbar USB transfer cable Wall mount kit Remote Control (AAA Batteries x 2) User Manual HDMI Cable Warranty Card Optical Cable Coaxial Cable 3. Specifications Soundbar Power supply 100-240V~ 50/60Hz Power consumption 20 W / < 0.5 W (StandBy) 500mA Hi-Speed USB (2.0) / FAT32 / FAT16 32G (max) , MP3... -
Page 7: Identifying The Parts
4. Identifying the Parts 4.1 Main Unit 500mA) LED Indicators STANDBY mode • Red indicator COAXIAL mode • Yellow indicator Bluetooth mode • Blue indicator OPTICAL Socket OPTICAL mode • Orange indicator Use to connect to the OPTICAL OUT socket •... -
Page 8: Preparations
5. Preparations • Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur 5.1 Prepare the Remote Control and result in physical injury, and/or property The provided remote control allows the unit to be damage, and/or fire. -
Page 10: Connections
6. Connections Connect the HDMI cable from unit's HDMI (ARC) socket to the HDMI (ARC) socket on your ARC compliant TV. Then press the 6.1 Waterproof protection cap remote control to select HDMI ARC mode. Before connections, please remove the waterproof Tips: protective cap of the coaxial / optical / HDMI ARC •... -
Page 11: Connect Power
OPTICAL ( ( 5V 5 5 00mA) 00mA) 6.5 Connect Power 7.3 Select Modes Risk of product damage! Press the button repeatedly to select the COAXIAL, Bluetooth, OPTICAL, HDMI ARC, Ensure that the power supply voltage USB mode. The indicator light on the front of the corresponds to the voltage printed on the COAXIAL Soundbar will show which mode is currently in use. -
Page 12: Bluetooth Operation
Soundbar can reduce operational range. search mode. • Keep this player away from other electronic Select “Sylvox Elf S2” enter “0000” for the devices that may cause interference. • The player will also be disconnected when your password if necessary. After audio prompt, device is moved beyond the operational range. -
Page 13: Troubleshooting
11. Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service. Problem Solution No power • Ensure that the AC cord of the apparatus is properly connected . •... - Page 14 Warranty Thank you for purchasing this Sylvox product. We are glad to offer 12 months free warranty for you. If you have any questions, please contact us via our after-sales email or website for assistance. After-sales email: service@sylvoxtv.com Website: www.sylvoxtv.com Customer Service Support: Email: service@sylvoxtv.com...
- Page 15 (including, without limitation, image, audio or video content). No other en tity other than Sylvox is authorized to extend, enlarge or transfer this warranty on behalf of Sylvox. The express warranties in this limited warranty are, in lieu of and, except to the extent...
- Page 17 FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
