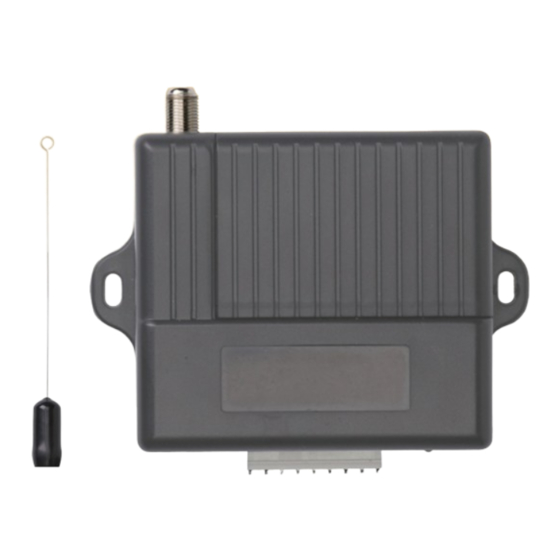

Hive 295GDO User Manual

295 mhz gdo receiver

HIVE

295 MHz GDO RECEIVER

USER MANUAL

Part NO: 295GDO

V.2.1.17

Table of Contents

Need help?

Do you have a question about the 295GDO and is the answer not in the manual?

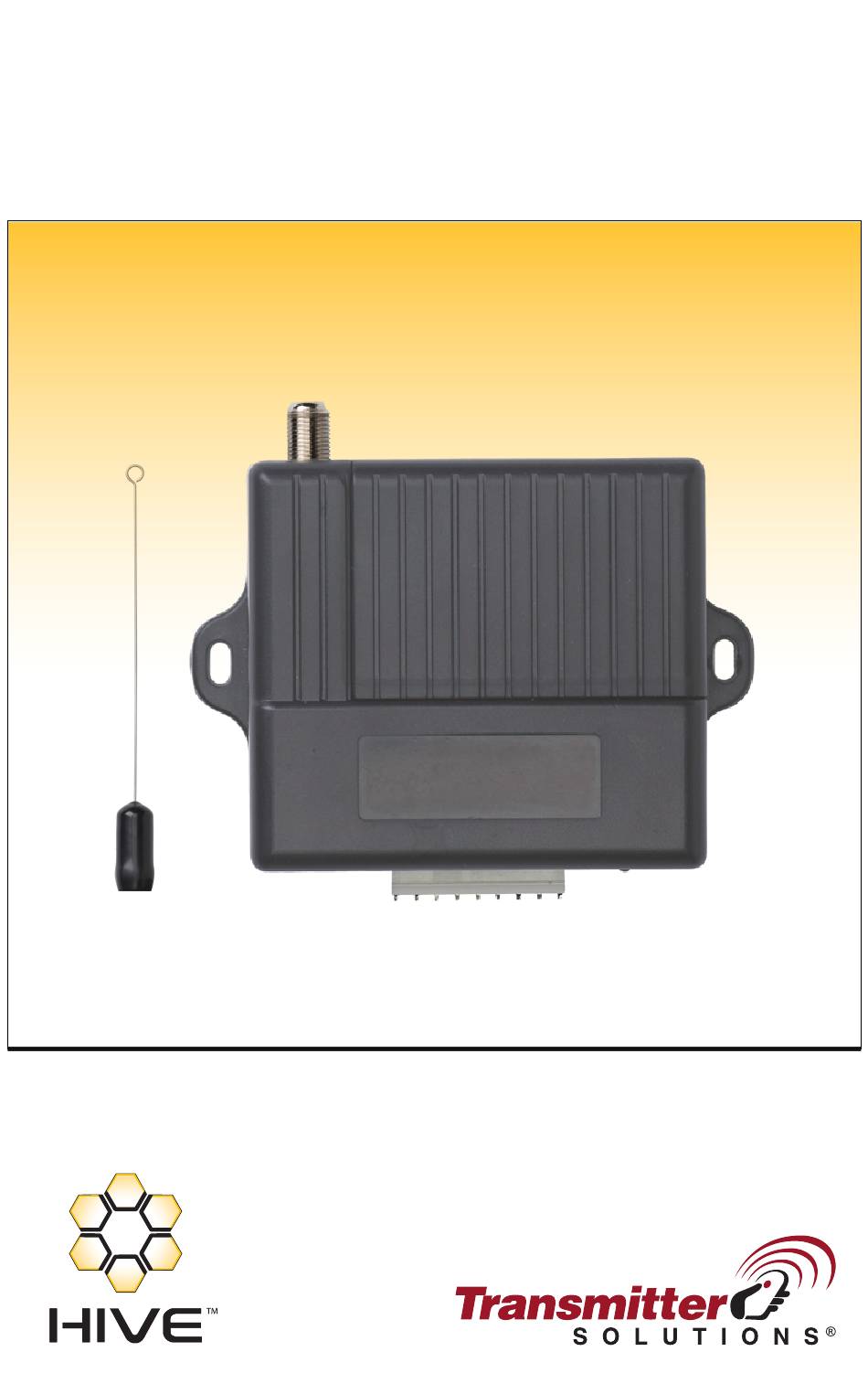

Page 1 HIVE 295 MHz GDO RECEIVER ® USER MANUAL Part NO: 295GDO V.2.1.17...
Page 2 Open the access door by sliding it to the right. See Fig 1. You can now see the circuit board and Learn button. See Fig 2. The Hive receiver will automatically detect volage between 12-24 V, either AC or DC. 2. TRANSMITTER LEARNING FOR COMM1: a.
Page 3 FOR COMM3: a. Press the Learn button for .4 sec, the red LED will blink slowly b. Press the learn button again for .5 sec, the red LED will turn off and the green LED will start blinking slowly c. Press the learn button again for another .5 sec, the green LED will turn off d.
Page 4 6. INSTALLATION A. Mount the receiver in a safe and convenient location on your instllation. Remember to take care to avoid items that may cause interference with the receiver such as electric motors, etc. The receiver can be attached with either the mounting screw holes of the housing or by using industrial strength velcro. B.
Page 5 7. WARRANTY The warranty period of this product is 24 months, beginning from the manufacturing date. During this period, if the product does not operate correctly, due to a defective component, the product will be repaired or replaced at the sole discretion of Transmitter Solutions.
