Nady Systems SPC-10 User Manual

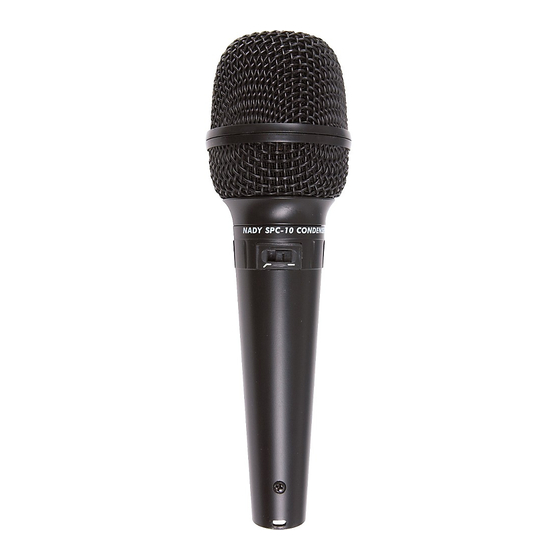

SPC-10 Condenser Microphone
Congratulations on purchasing the Nady SPC-10 Condenser Microphone — the first general purpose handheld vocal micro-
phone of its kind to feature a studio quality large diaphragm condenser element. The SPC-10 is a versatile, professional level
microphone, perfect for all live entertainment, recording, and broadcast applications requiring uncompromised studio quality
sound.
UNPACKING, INSPECTION, STORAGE AND TRANSPORT
Your SPC-10 microphone was carefully packed at the factory, and the shipping carton was designed to protect the unit during
shipping. Please examine your microphone before using and retain the external shipping package for reuse should you ever
need to return your microphone for servicing. A foam padded plastic carrying case is provided for safe, convenient transport and
storage.
STANDARD ITEMS SUPPLIED
• SPC-10 microphone

• User Guide

• Warranty card
• Mic clip
• Foam padded plastic carrying case
FEATURES
• Large (1") diameter, ultra-thin membrane, gold-evaporated,
pressure gradient condenser capsule and transformerless
FET circuitry for superior audio with unsurpassed warmth
and transparency
• Linear frequency response across the entire audio spectrum
(30~20,000Hz, with added presence in the mids and highs)
for crisp, clear sound
• Superior 8mV/Pa sensitivity, wide 122dB dynamic range,
high 140dB SPL capacity and ultra-low distortion
USER GUIDE

OPTIONAL ACCESSORIES

• SMSP-1 48V phantom power supply
• External low-cut switch for rolling off low frequencies (80 Hz,
12 dB/octave)
• Multi-axis internal capsule shockmount for extremely low
handling noise
• Tight cardioid pattern for optimum feedback rejection
• Lightweight, rugged and durable
• Required 48VDC phantom power
To take full advantage of the superb features
of the SPC-10, and to enjoy long and
trouble-free use, please read this
User's Guide carefully.
